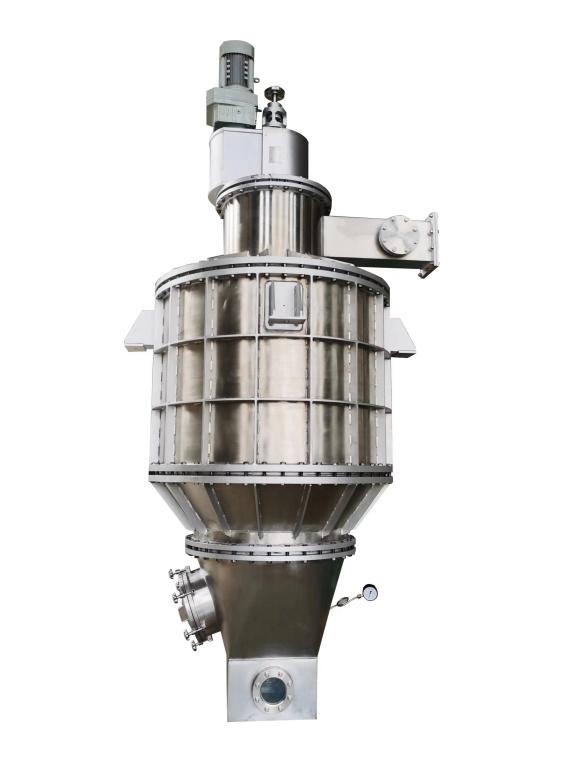

This vacuum dryer is the key equipment for the complete soap production line with oil as material, it can produce out the soap noodles or end soaps with a wide range of fatty acid content among 40-80%.
Characteristics
1. Being processed by vertical machining centre,the inner surface of the barrel is smooth as glass, so the dried soap flakes would have even thickness, structure and moisture content
2. The motor is GUOMAO brand, vertical hard tooth reducer, which have the device of auto-lubrication, ensures the stable and quite performance
3. The main shaft have three sets of knives at the top, middle and bottom position, which ensures a thorough scrap down of the flakes
4. The nozzle can be different diameter and spraying speed would be even and well matched with the knives.
Specifications
Product name | vacuum spray dryer |
Model | XSD-1800 |
Material | carbon steel A3 |
Capacity | 4000-6000kg/h |
Roll diameter | 1800mm |
Roll speed | 13r/min |
Power | 11kw |
