Soap finishing line processing :

Mixer Agitator >> Three Roll Mill >> Vacuum Plodder >> Cutting Machine >> Packing

Mixing >>> Grinding >>> Extruding >>> Cutting >>> Packing

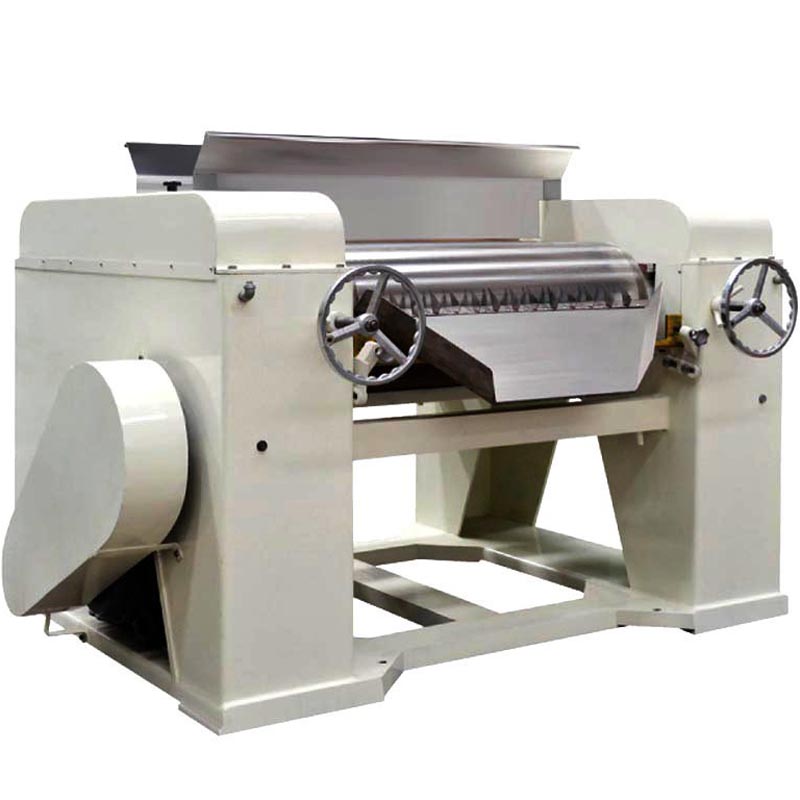

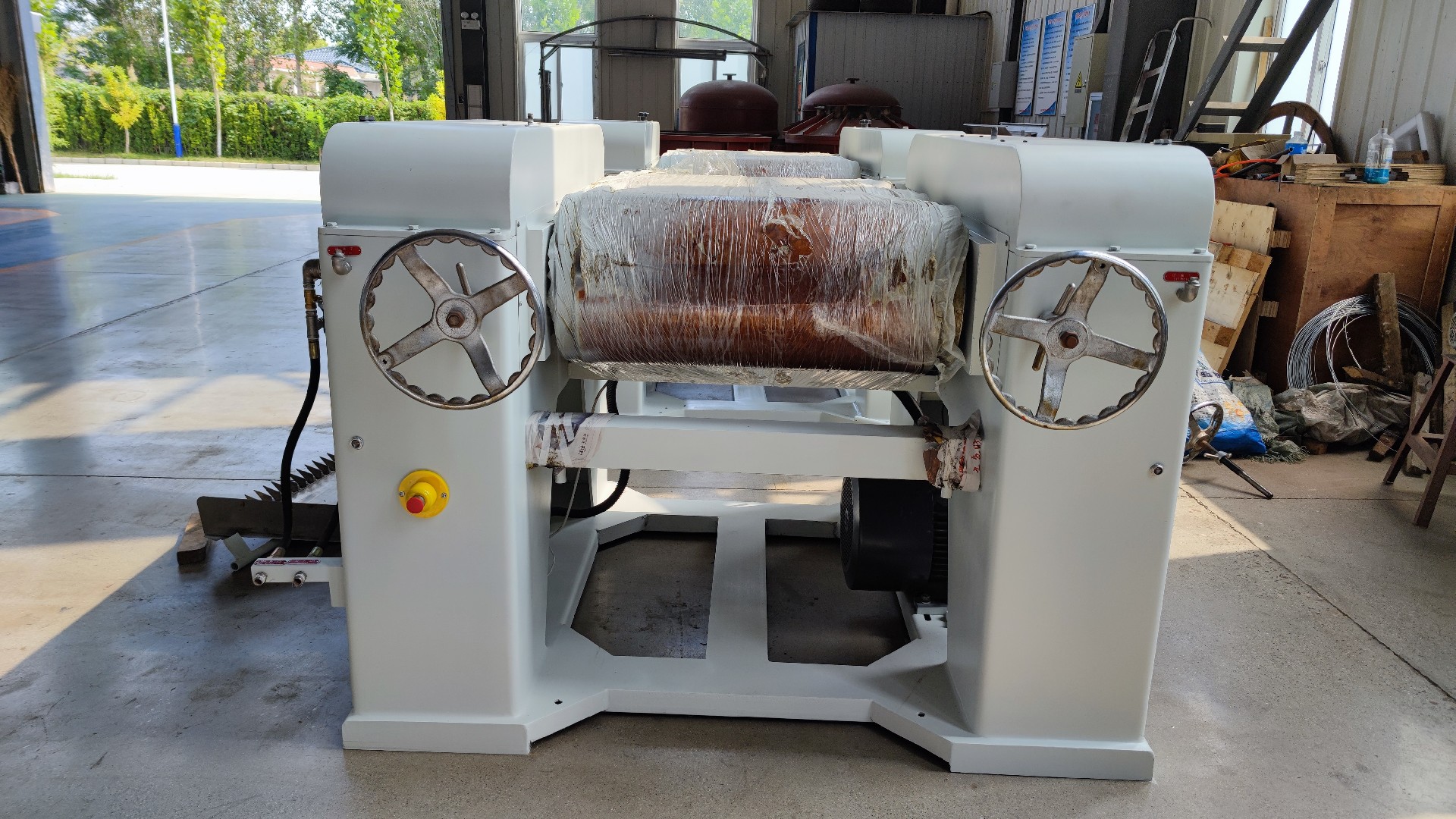

The three roll mill:

A three roll mill or triple roll mill is a machine that uses shear force created by three horizontally positioned rolls rotating in opposite directions and different speeds relative to each other, in order to mix, refine, disperse,or homogenize viscous materials fed into it.

Three Roll Mill Working Processing:

The three adjacent rolls of a three roll mill (called the feed roll, centre roll and apron roll) rotate at progressively higher speeds. Materials, usually in the form of paste, is fed between the feed roll and the center roll. Due to the narrowing space between the rolls, most of the paste initially remains in the feed region. The part that makes it through the first in-running nip experiences very high shear force due to the different rotation speeds of the two rolls. Upon exiting, the material that remains on the center roll moves through the second nip between the center roll and apron roll. This subjects it to an even higher shear force, due to the higher speed of the apron roll and typically, a smaller gap than between the feed and centre roll. A knife blade then scrapes the processed material off the apron roll and the paste rolls down the apron. This milling cycle can be repeated several times to maximize dispersion.

Specifications

Advantages

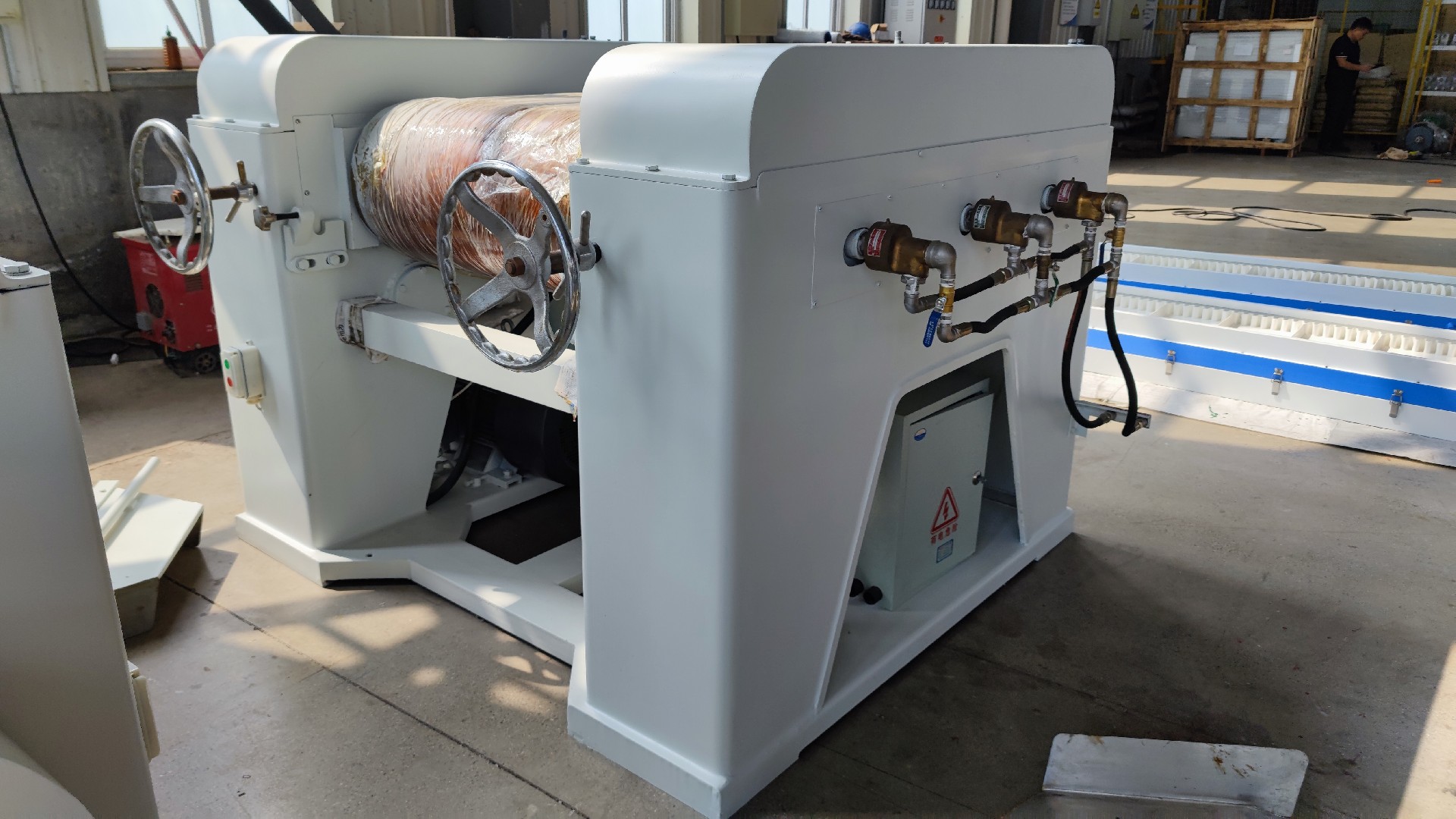

1. The roller of the equipment is made of chilled alloy, with high surface hardness and wear resistance, which

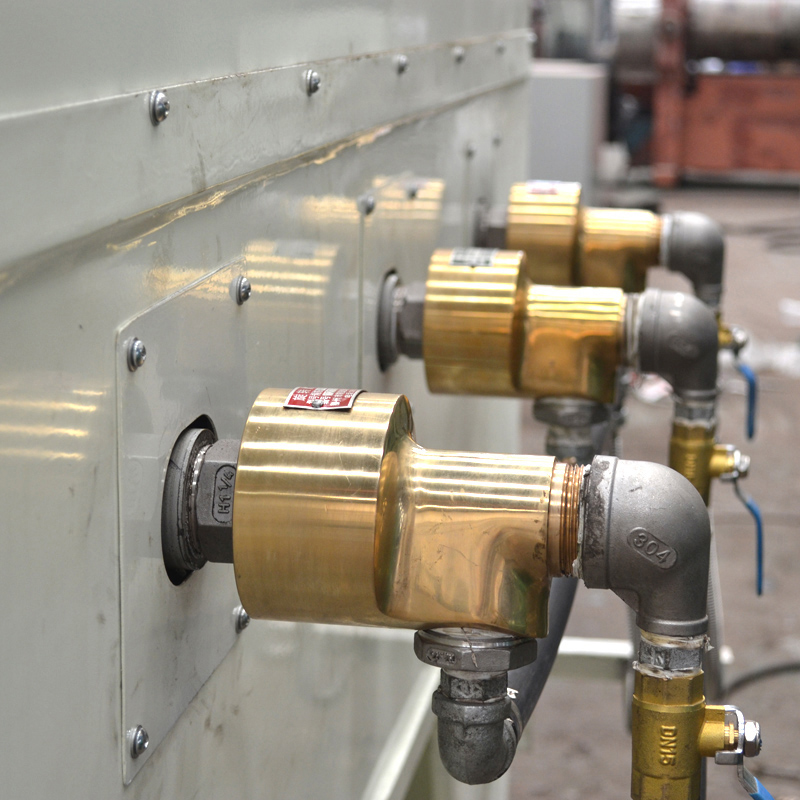

can make the grinding fineness of soap particles reach about 15μm, and it is equipped with a water cooling

system can lower the machine's temperature;

2. The transmission part adopts gear transmission. The refined gear has long service life, low noise, stable

and reliable operation;

3. The grinding gap between the three rollers is adjustable to meet the needs of different grinding effects.

Our Company&Services

Jinan Zhonghui Machinery Manufacture Co.,Ltd is founded in the year of 2009. We are a professional factory focus on the design, manufacture and technical service of soap,glycerin and fatty acid equipment.

Our company has passed the ISO9001 Quality System Certification. We can provide turn-key project,including the technique design,machine fabrication,workshop layout,machine installation&commissioning,staff training,etc.

Our products has been exported to more than 62 countries and regions all over the world.

FAQ

Q: Are you manufacture factory or trading company?

A: We are a soap making machine manufacture factory.

Q: How to choose the machine?

A: Tell me: 1.Toilet soap or laundry soap ,which soap will you make?

2.How about your line capacity?

3.What material will you use to start?
