Jinan Zhonghui Machinery Manufacture Co.,Ltd

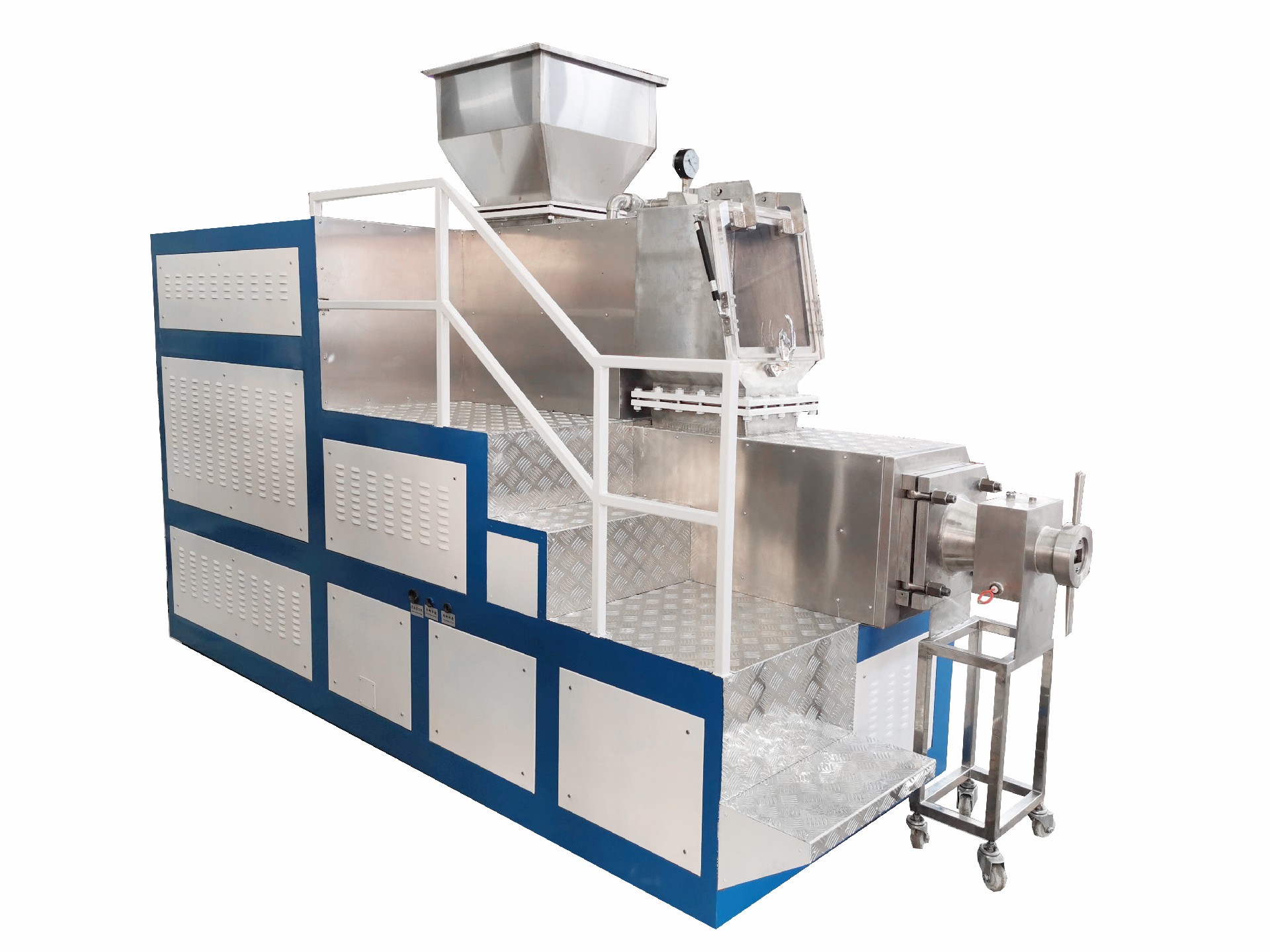

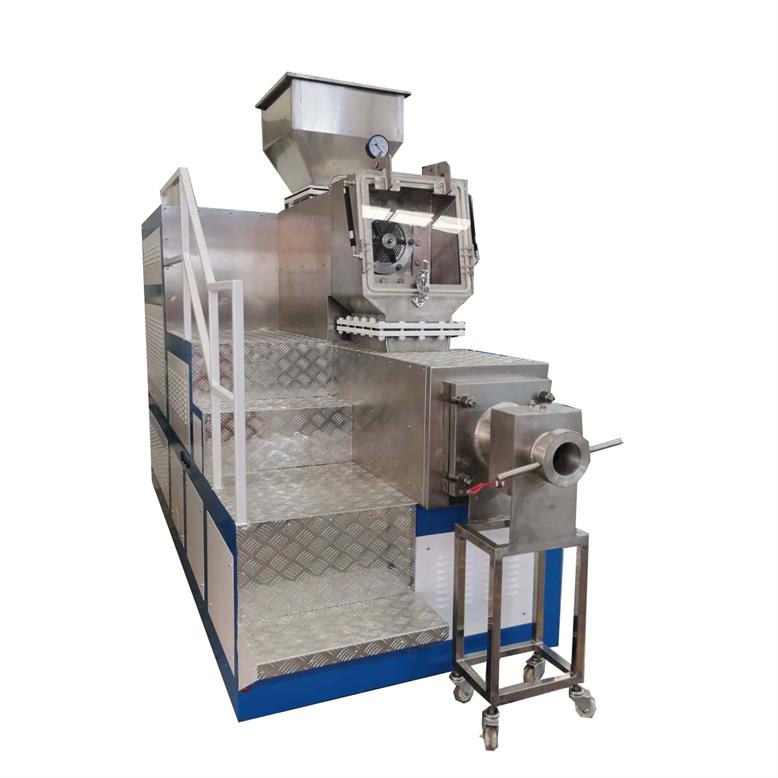

Reliable stainless steel 304 double layers single screw soap


vacuum plodder extruder soap plodding machine for soap


extrusion


Product Instruction



Vacuum plodder as the most important machine in the soap production line. A vacuum plodder grinding, refining,pressing soap noodles and other additives to obtain soap bar.



The purpose of the refining process is to produce a homogeneous and uniform soap, eliminating drying points that are difficult to soluble. Finally, the refined shavings are compacted and extruded through a nose cone (tapered head) free of air to obtain a soap bar.



After mixing and refining soap noodles and other additivies from our first layer screw and then the second screw.Where in the vacuum space extruded the bar soap which smooth and fine,not easy breaken.And use different shape extrude mouth can make different shape soaps.


Technical Parameters

Product name soap vacuum plodder/extruder
ModelXTN-500
Materialstainless steel 304
Capacity500~800kg/h
Power7.5kw+11kw
Screw diameter200mm
Type total two layers,each layer have one screw
Featureautomatic,long life span


Our Company&Services


Jinan Zhonghui Machinery Manufacture Co.,Ltd is founded in the year of 2009. We are a professional factory focus on the design, manufacture and technical service of soap,glycerin and fatty acid equipment.
Our company has passed the ISO9001 Quality System Certification. We can provide turn-key project,including the technique design,machine fabrication,workshop layout,machine installation&commissioning,staff training,etc.
Our products has been exported to more than 62 countries and regions all over the world.



At our 10 year company foundation anniversary time, we found the Shandong Zhonghui International Trading Co., LTD, which ensures us to offer the most comprehensive service for our customers. So besides the soap machine, we can supply the related machine and production materials, such as the steam boiler, generator, soap packing machine and soap noodles, soap packing material, caustic soda, perfume, colorant, calcium powder, AES, EDTA, etc.



---SERVICES

Our chief engineer has worked in this soap industry for over 20-30 years. We not only know how to make machines, but also know how to operate them. We provide comprehensive technical assistance to our customers and ensure that each customer, whether new or experienced, can well build and operate their own soap factory. We will ensure that every customer receives a high profit from our machines. We help you find the most suitable and competitive soap product line for your target market. We help you draw drawings of the workshop building and equipment layout. We provide you with high-quality and stable performance soap machines, spare parts, and accessories as a turnkey project. We send engineers to your location for machine installation, staff training, etc. We provide consistent technical support during the whole life span of our machine.
