Soap production line processing:
Mixer Agitator →Three roll mill→ Vacuum Plodder→ Cutting&Stamping machine→ Packing Machine
Mixing →Grinding →Extruding →Cutting&Stamping →Packing
Reliable high quality stainless steel 304 double layers single screw

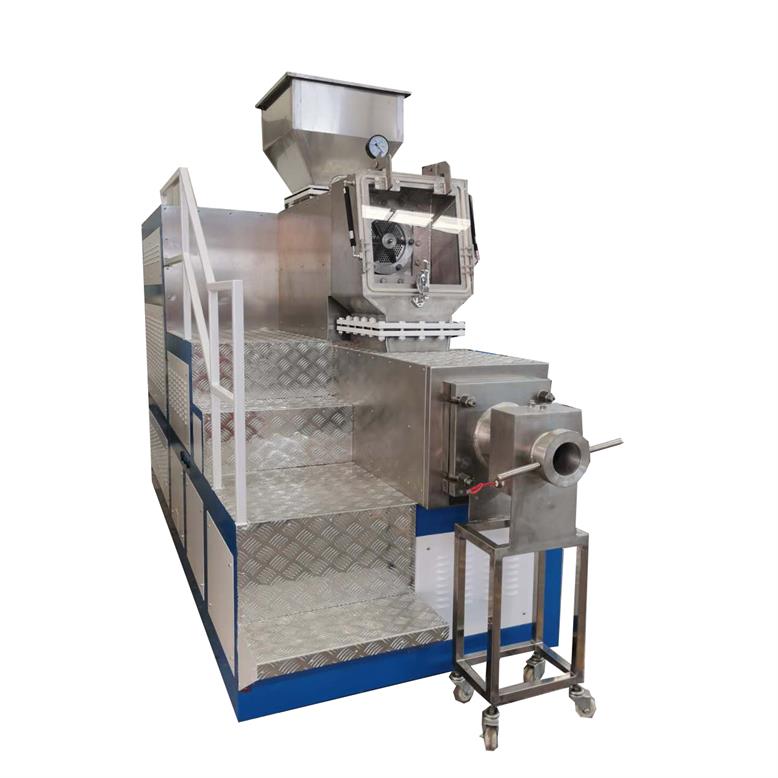

1000 kg per hour soap vacuum plodder extruding machine
Vacuum plodder as the most important machine in the soap production line. A vacuum plodder grinding, refining,pressing soap noodles and other additives to obtain soap bar.
The purpose of the refining process is to produce a homogeneous and uniform soap, eliminating drying points that are difficult to soluble. Finally, the refined shavings are compacted and extruded through a nose cone (tapered head) free of air to obtain a soap bar.
After mixing and refining soap noodles and other additivies from our first layer screw and then the second screw.Where in the vacuum space extruded the bar soap which smooth and fine,not easy breaken.And use different shape extrude mouth can make different shape soaps.
Technical Parameters
| Product name | bar soap vacuum plodder/extruder |
| Model | XTN-1000 |
| Material | stainless steel 304 |
| Capacity | 1000~1500kg/h |
| Power | upper:18.5kw below:30kw |
| Screw diameter | 300mm |
| Type | total two layers,each layer has one screw |
| Advantage | high quality,long service life |
Our Company&Services
Jinan Zhonghui Machinery Manufacture Co.,Ltd is founded in the year of 2009. We are a professional factory focus on the design, manufacture and technical service of soap,glycerin and fatty acid equipment.
Our company has passed the ISO9001 Quality System Certification. We can provide turn-key project,including the technique design,machine fabrication,workshop layout,machine installation&commissioning,staff training,etc.
Our products has been exported to more than 62 countries and regions all over the world.
We are a real soap-making machine manufactory factory, so we can guarantee high quality while providing our customers with a relatively favorable price.
Our company has passed the ISO9001 Quality System Certification, and we always adhere to QC management. All soap machines requires many tests before loading to ensure that the equipment arrives the customer's factory can operate well.
We constantly update our production equipment to meet market demand and better serve our customers.
Our Product Advantages:
2021 New Design Soap Making machine for Both Laundry Bar Soap and Toilet Bar Soap
As a professional soap machine factory. We learn and development continuously.Update all electric parts,choose the brand product;
Update the motor, choose Siemens,or China Brand motor;
Update the out looking, make the machine more beauty;
Update the size of machine, make it can save space, easy transport, save freight charge.
Our Services Provided:
Our chief engineer has worked in this soap industry for over 20-30 years. We not only know how to make machines, but also know how to operate them. We provide comprehensive technical assistance to our customers and ensure that each customer, whether new or experienced, can well build and operate their own soap factory. We will ensure that every customer receives a high profit from our machines. We help you find the most suitable and competitive soap product line for your target market. We help you draw drawings of the workshop building and equipment layout. We provide you with high-quality and stable performance soap machines, spare parts, and accessories as a turnkey project. We send engineers to your location for machine installation, staff training, etc. We provide consistent technical support during the whole life span of our machine.
