Jinan Zhonghui Machinery Manufacture Co.,Ltd

Soap production processing:

Mixer agitator →three roll mill →vacuum plodder →cutting machine →packing machine

Mixing →Grinding →Extruding →Cutting →Packing


Soap making machine stainless steel 304 double layer twin screw

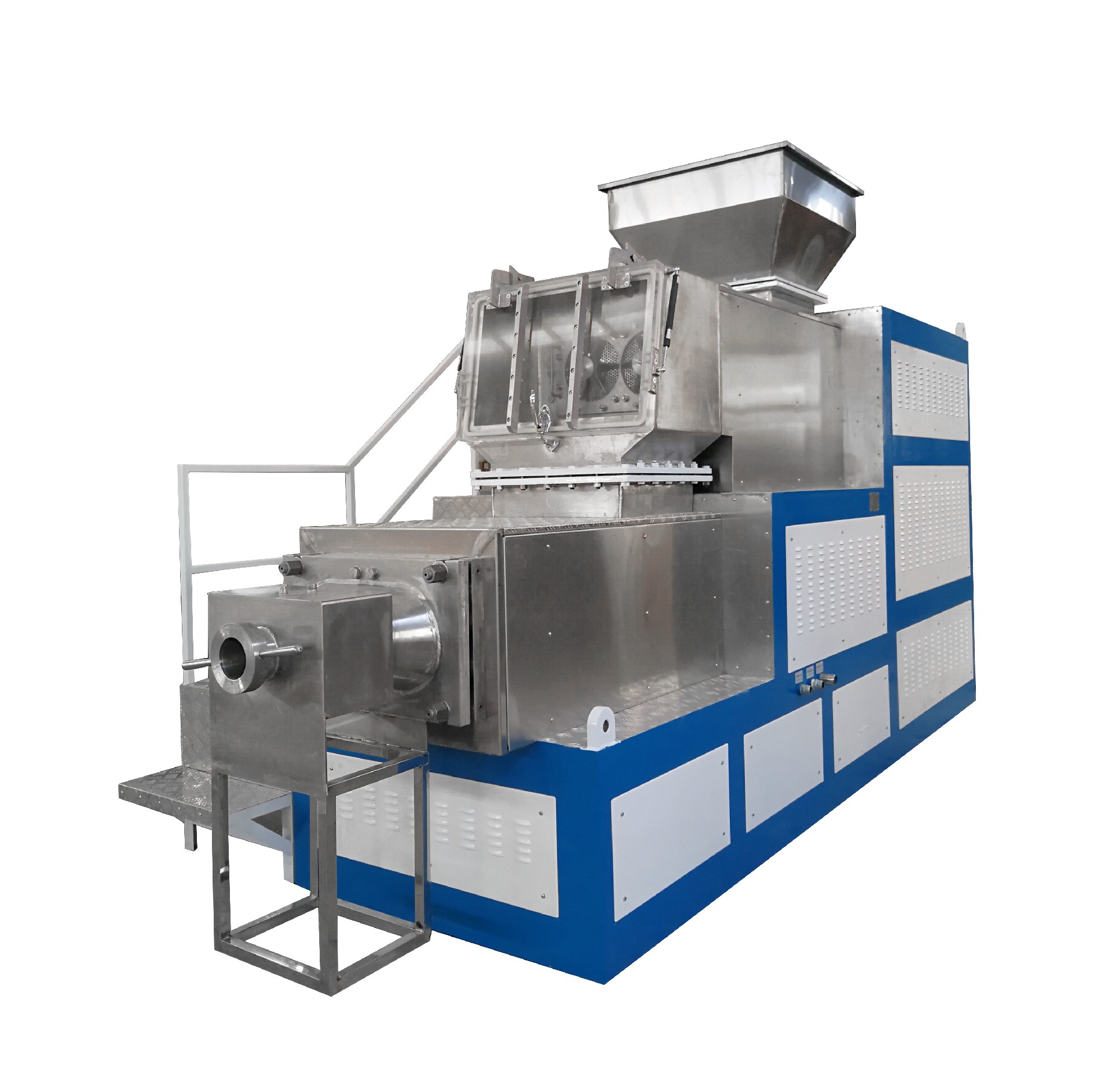

3500kg/h soap bar vacuum plodder soap extruded equipment


Working Principle:

Vacuum plodder as the most important machine in the soap production line. A vacuum plodder grinding, refining,pressing soap noodles and other additives to obtain soap bar.

After mixing and refining soap noodles and other additivies from our first layer two screws and then the second layer two screws. Where in the vacuum space extruded the bar soap which smooth and fine,not easy breaken.And use different shape extrude mouth can make different shape soaps.


Main Structure Characteristics:

The above and below screws and two orifice plates refine and compress the soap material to make the soap bar tight and have a bright surface. The below screw'speed can be adjusted to regulate the production capacity.

The vacuum pump vacuumizes the soap materials, so the soap is not easy to crack.

The vacuum chamber has a vision glass to watch the inner condition,

the vacuum meter tests the vacuum degree.

The heater inside the outlet adopts automatic temperature control system.

The jackets of the above and below barrels is connected to a circulating water source.

The motor and the reducer are separated, for long life-span and convenient maintenance.

All of our double layers vacuum plodder are equipped with work platforms and handrails for visual inspection of soap production.


Technical Parameters:

Product name soap vacuum plodder/extruder
ModelXT-3500
MaterialParts that touch with soap material all made of stainless steel 304
Capacity3000~4000kg/h
Power

above:30kw

below:45kw

Screw diameter300mm*2
Screw typedouble layer twin screw


Our Company&Services

Jinan Zhonghui Machinery Manufacture Co.,Ltd is founded in the year of 2009. We are a professional factory focus on the design, manufacture and technical service of soap,glycerin and fatty acid equipment.

Our company has passed the ISO9001 Quality System Certification. We can provide turn-key project,including the technique design,machine fabrication,workshop layout,machine installation&commissioning,staff training,etc.
Our products has been exported to more than 62 countries and regions all over the world.


Quality&Services



We are a real soap-making machine manufactory factory, so we can guarantee high quality while providing our customers with a relatively favorable price.



Our company has passed the ISO9001 Quality System Certification, and we always adhere to QC management. All soap machines requires many tests before loading to ensure that the equipment arrives the customer's factory can operate well.
We constantly update our production equipment to meet market demand and better serve our customers.



Our Product Advantages:

2021 New Design Soap Making machine for Both Laundry Bar Soap and Toilet Bar Soap

As a professional soap machine factory. We learn and development continuously.

Update all electric parts,choose the brand product;

Update the motor, choose Siemens,or China Brand motor;

Update the out looking, make the machine more beauty;

Update the size of machine, make it can save space, easy transport, save freight charge.

SERVICES

Our chief engineer has worked in this soap industry for over 20-30 years. We not only know how to make machines, but also know how to operate them. We provide comprehensive technical assistance to our customers and ensure that each customer, whether new or experienced, can well build and operate their own soap factory. We will ensure that every customer receives a high profit from our machines. We help you find the most suitable and competitive soap product line for your target market. We help you draw drawings of the workshop building and equipment layout. We provide you with high-quality and stable performance soap machines, spare parts, and accessories as a turnkey project. We send engineers to your location for machine installation, staff training, etc. We provide consistent technical support during the whole life span of our machine.
