Jinan Zhonghui Machinery Manufacture Co.,Ltd

For the soap production, normally it has two steps,

First step is to use all kinds of vegetable oil & animal fats and caustic soda as material to produce the semi product soap noodles;

Second step is to use soap noodles as material to produce out end bar soaps.

In these two production lines, we have our own unique design and patented technology, especially the production line starting from oil saponification. Using vacuum drying and continuous molding processes, we can produce various specifications of semi-finished soap noodle and soap products with a fatty acid content of 45% to 80%.

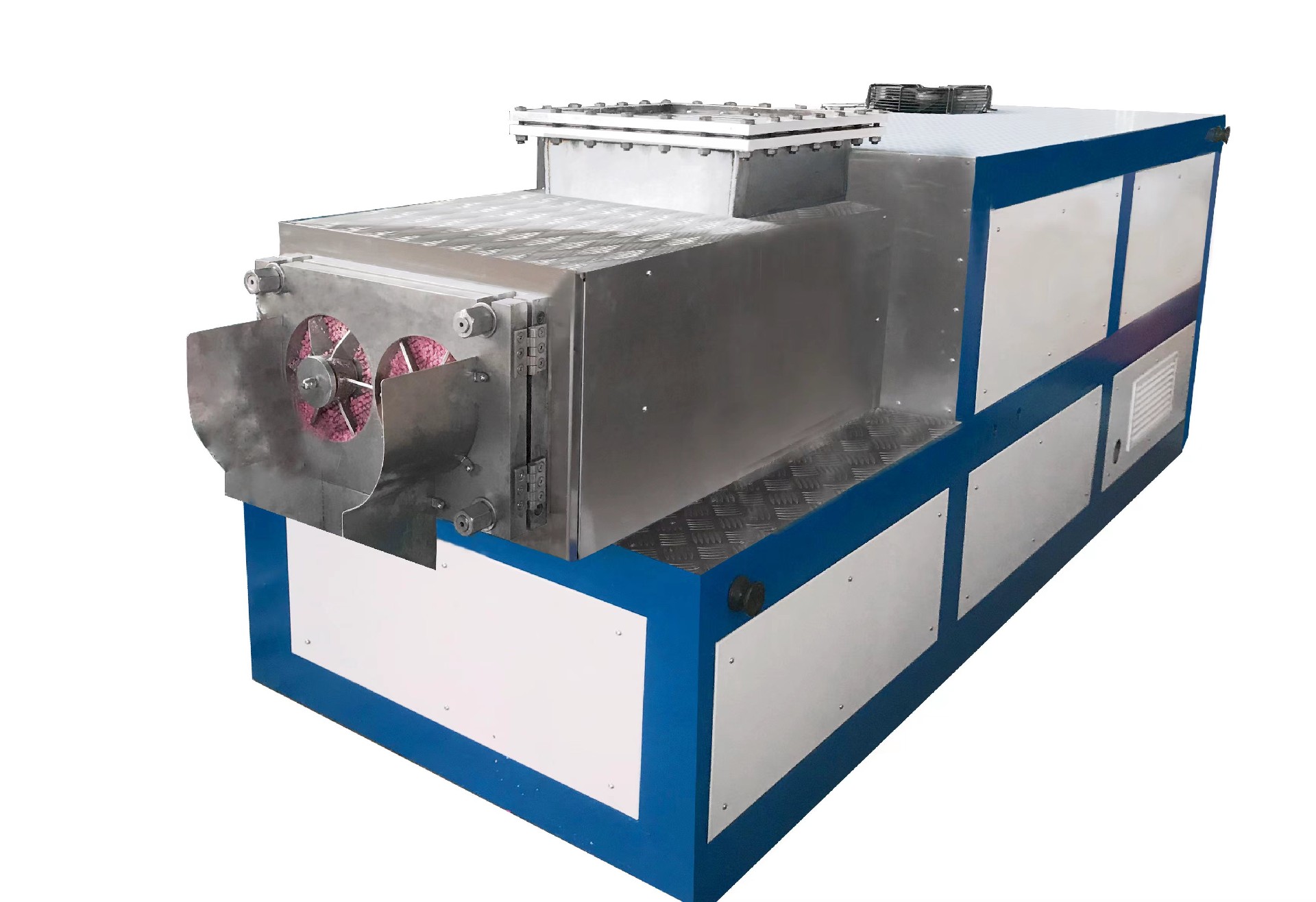

Excellent quality favorable price stainless steel 304 material double screw soap refiners

refining machines for soap making


When it is mounted under the vacuum spray chamber,it will be act as a soap


pelletizer,when it is used in a soap finishing line,it will act as a soap refiner.


【Working Principle】


When it is used as refiner in the soap finishing line,refiner is used to grind and refine soap noodle and other additives after mixer agitator and three-roll mill,improving the density and quality of soap.

After grinding in the horizontal direction with three roller mill, the refining machine performs grinding and refining soap material in the vertical direction, improving the density and transparency of the soap.

After being ground and refined by a refining machine, the soap material will again enter a three-roller grinding process, and finally be transported to a vacuum plodder. (extruding&cutting into soap)


【Technical Parameters】

Product name soap refiners/refining machine
Model XT-4000
Materialparts that touch with soap material all made of stainless steel 304
Capacity4000~4500kg/h
Power45kw
Screw diameter300mm*2
Screw typedouble screw


【Characteristics】

1.The structure is welded strong and neat;

2.The extruding cylinder made from cold drawn seamless tube, together with the thickened screw, and the circulating water cooling of the spiral blades ensure the high quality requirements for end bar soap;



3.Siemens Beide Brand frequency conversion motor and Guomao Brand horizontal hard tooth reducer are adopted, ensure the machine to have stable performance, high efficiency, automatic lubrication and low noise;



4.It adopts transmission deceleration and separation, convenient maintenance and long service life.



Our Company&Services


Jinan Zhonghui Machinery Manufacture Co.,Ltd is founded in the year of 2009. We are a professional factory focus on the design, manufacture and technical service of soap,glycerin and fatty acid equipment.

Our company has passed the ISO9001 Quality System Certification. We have finished the registration of “ZHONGHUI” brand as our trademark;
We have got several patents for our soap machine design and fabrication function;We can provide turn-key project,including the technique design,machine fabrication,workshop layout,machine installation&commissioning,staff training,etc.
Our products has been exported to more than 62 countries and regions all over the world.



SERVICES

Our chief engineer has been working in the soap industry for nearly 30 years and has rich practical experience. We not only know how to make machines, but also know how to operate them. We provide comprehensive technical assistance to our customers and ensure that each customer, whether new or experienced, can well build and operate their own soap factory. We will ensure that every customer receives a high profit from our machines.

*We help you find the most suitable and competitive soap product line for your target market;

*We help you draw drawings of the workshop building and equipment layout;

*We provide you with high-quality and stable performance soap machines, spare parts, and accessories as a turnkey project;

*We send engineers to your location for machine installation, staff training;

*We provide consistent technical support during the whole life span of our machine.
