For the soap production, normally it has two steps, first step is to use all kinds of vegetable oil & animal fats and caustic soda (NaOH)as material to produce the semi product soap noodles and the second process is to use thus soap noodles as material to produce out end bar soaps.

In these two production lines, we have our own unique design and patented technology, especially the production line starting from oil saponification. Using vacuum drying and continuous molding processes, we can produce various specifications of semi-finished soap noodle and soap products with a fatty acid content of 45% to 80%.

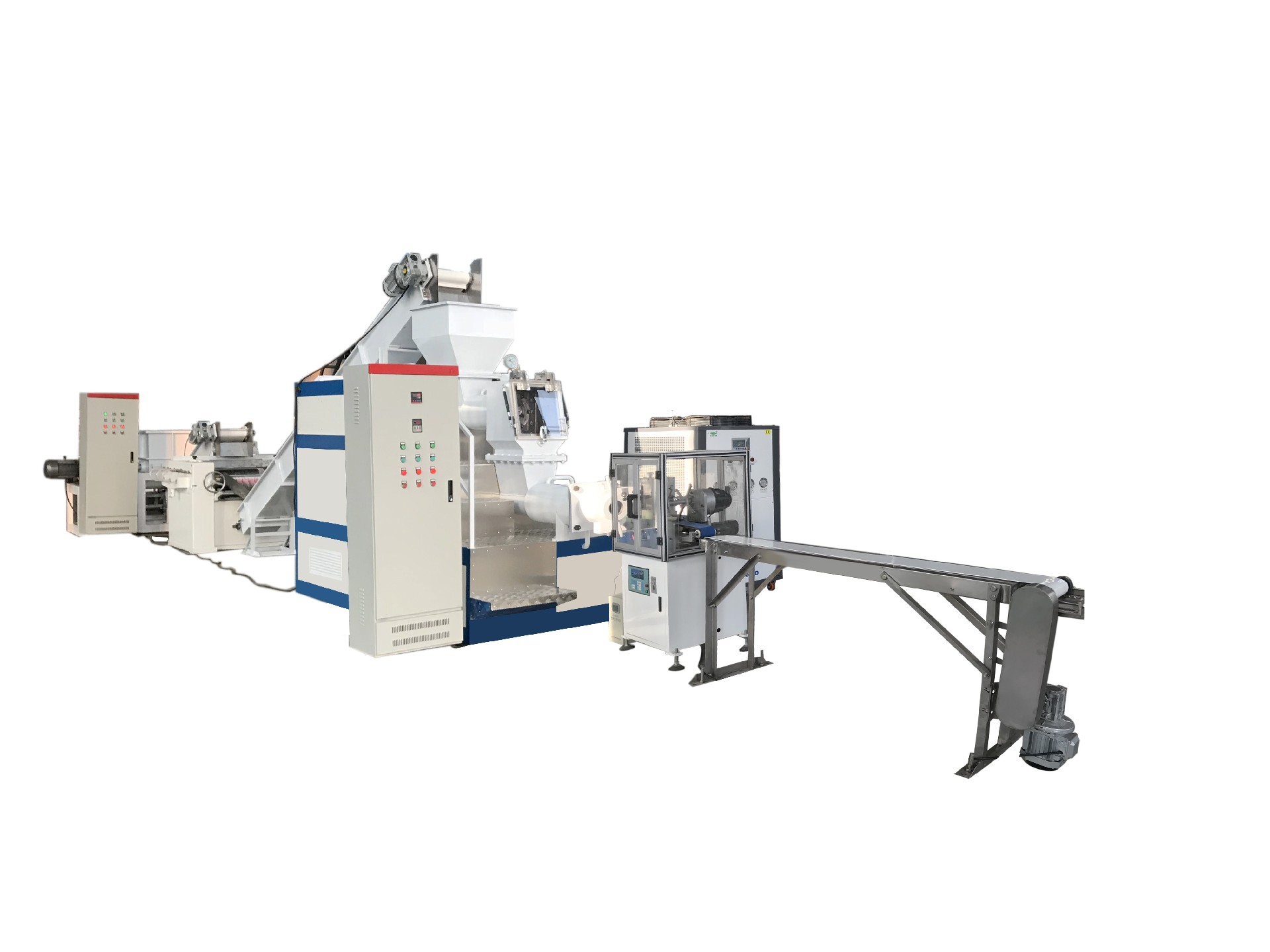

Laundry Soap Finishing Line from raw material (all oils +NaOH)

Oil de-coloring & refining→ Saponification (no waste-water discharge)→Vacuum drying &Pelletizing (produce out soap noodles)→Mixer agitator mixing→ three roll mill grinding→ vacuum plodder extruding→printing& cutting machine →packing machine

Cheap and Useful Laundry Bar Soap

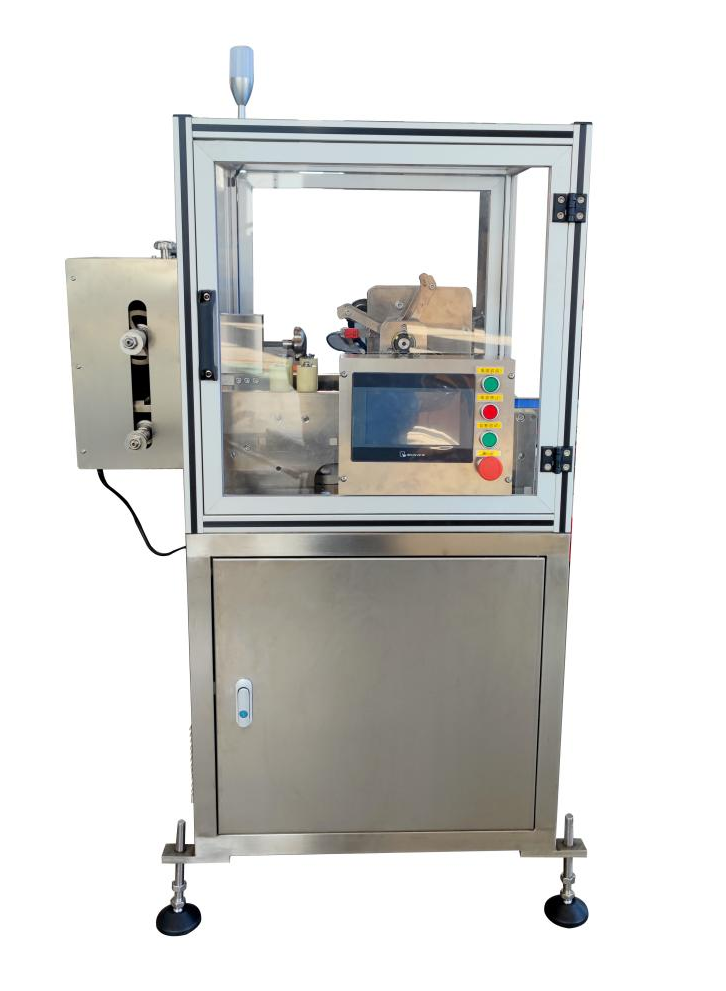

Electronic Printing Cutting Machine Laundry Soap Cutter

【Function】

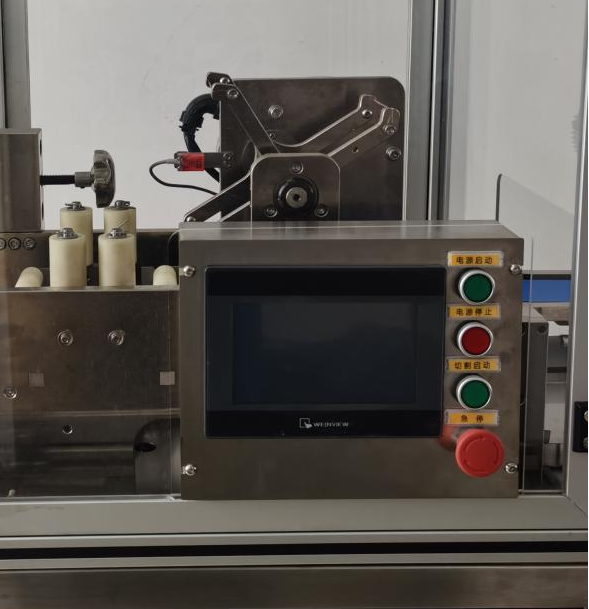

This electronic soap printing cutting machine is an advanced model. It has all the functions same as simple cutting machine. Soap electronic cutting machine is used to cut soaps into cakes and stamp patterns on the soap. Adopt Yaskawa servo motor and converter to keep high accuracy.

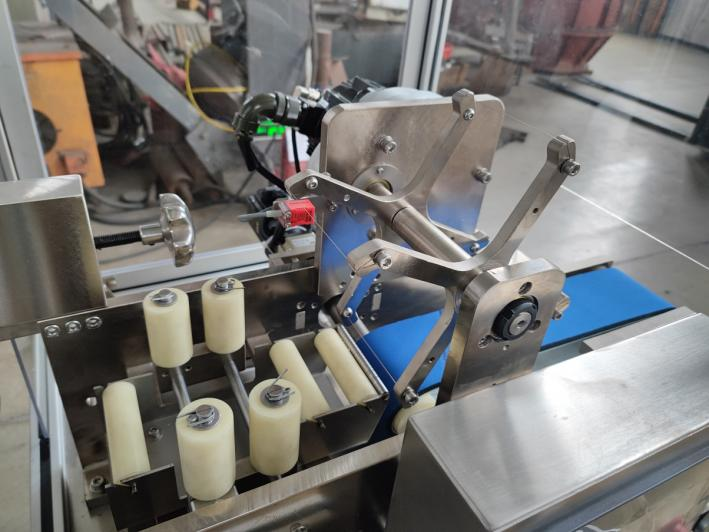

The mould wheels running by the moving of soap bar extruded from vaccum plodder.Besides, the biggest advantage is that this model is controlled by micro-computer, hence by inputting different figures on the touchscreen, the cut soap length would be easily changed. It is more suitable for the customers that need produce various sizes of soap from the same product line.

【Characteristics】

1.YASKAWA Servo Motor and control module are adopt, together with the automatic alarming and stopping system, makes the machine more intelligent and easier for operation;

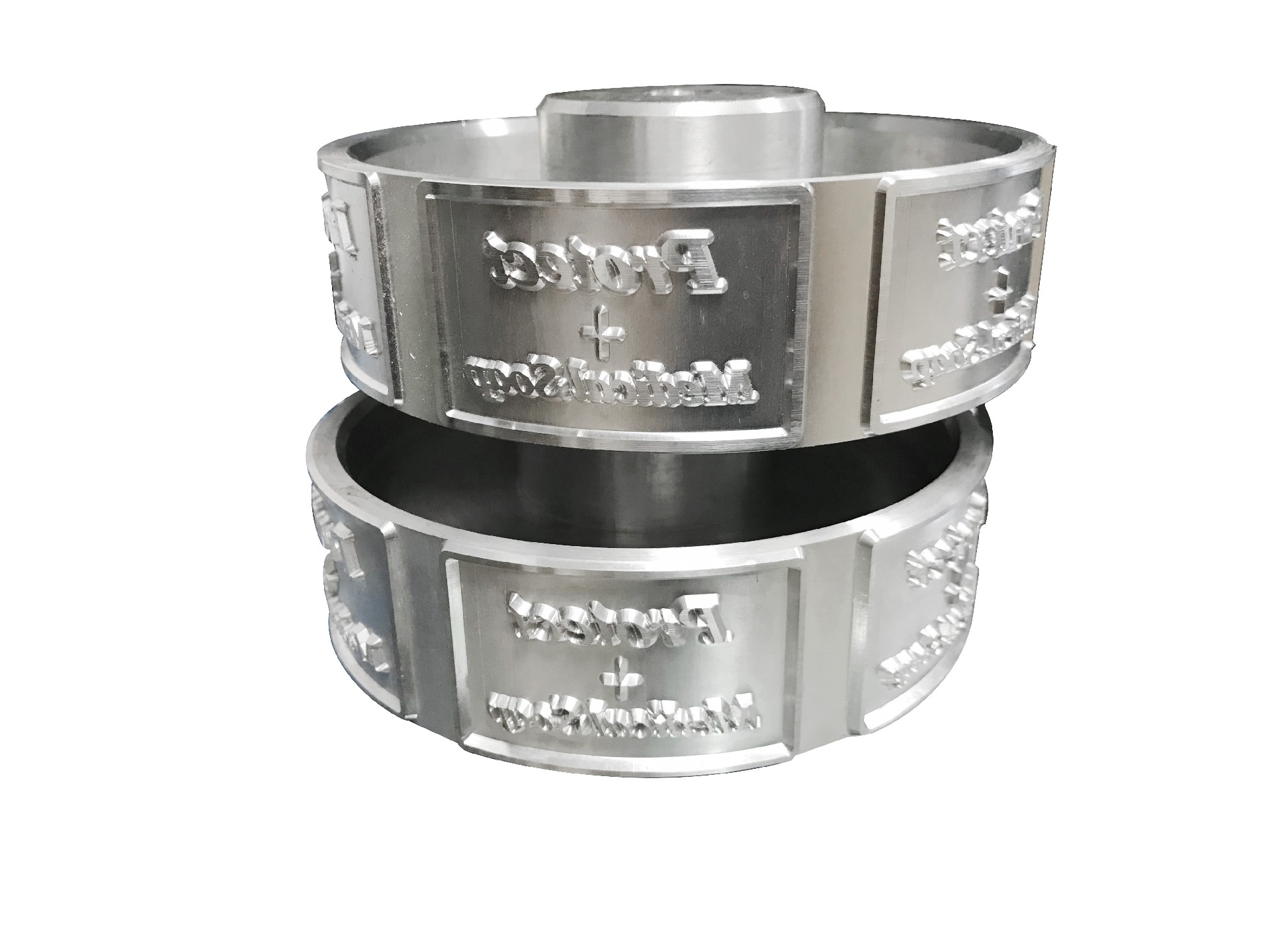

2.Printing mould is made by aluminum alloy, which is anti worn and logo printed is more clearer and delicate;

3.Electronic laser tracking and photoelectric sensor system makes the change for different soap length and weight convenient and accurate.

【Technical Parameters】

Our Company&Services

Jinan Zhonghui Machinery Manufacture Co.,Ltd is founded in the year of 2009. We are a professional factory focus on the design, manufacture and technical service of soap,glycerin and fatty acid equipment.

Our company has passed the ISO9001 Quality System Certification. We have finished the registration of “ZHONGHUI” brand as our trademark;
We have got several patents for our soap machine design and fabrication function;We can provide turn-key project,including the technique design,machine fabrication,workshop layout,machine installation&commissioning,staff training,etc.
Our products has been exported to more than 62 countries and regions all over the world.

---SERVICES

Our chief engineer has been working in this soap industry for nearly 30 years. We not only know how to make machines, but also know how to operate them. We provide comprehensive technical assistance to our customers and ensure that each customer, whether new or experienced, can well build and operate their own soap factory. We will ensure that every customer receives a high profit from our machines.

*We help you find the most suitable and competitive soap product line for your target market;

*We help you draw drawings of the workshop building and equipment layout;

*We provide you with high-quality and stable performance soap machines, spare parts, and accessories as a turnkey project;

*We send engineers to your location for machine installation, staff training;

*We provide consistent technical support during the whole life span of our machine.
