For the soap production, normally it has two steps, first step is to use all kinds of vegetable oil & animal fats and caustic soda (NaOH)as material to produce the semi product soap noodles and the second process is to use thus soap noodles as material to produce out end bar soaps.

In these two production lines, we have our own unique design and patented technology, especially the production line starting from oil saponification. Using vacuum drying and continuous molding processes, we can produce various specifications of semi-finished soap noodle and soap products with a fatty acid content of 45% to 80%.

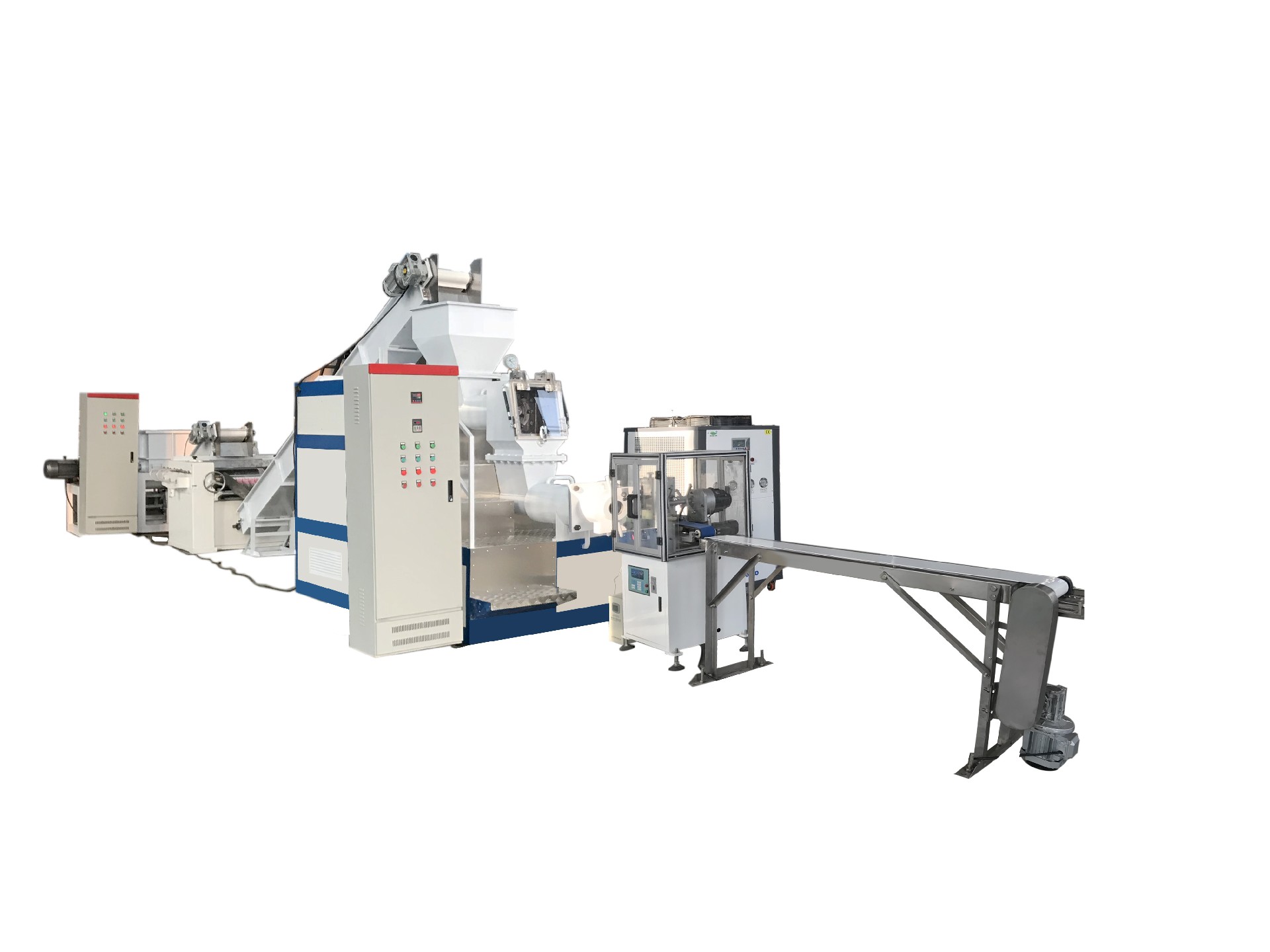

Laundry Soap Finishing Line from raw material (all oils +NaOH)

Oil de-coloring & refining→ Saponification (no waste-water discharge)→Vacuum drying &Pelletizing (produce out soap noodles)→Mixer agitator mixing→ three roll mill grinding→ vacuum plodder extruding→printing& cutting machine →packing machine

Safe Intelligent Automatic PLC control System Laundry bar Soap

Electronic Printing Cutting Machines for End Finished Laundry

Soap Forming

【Working Principles】

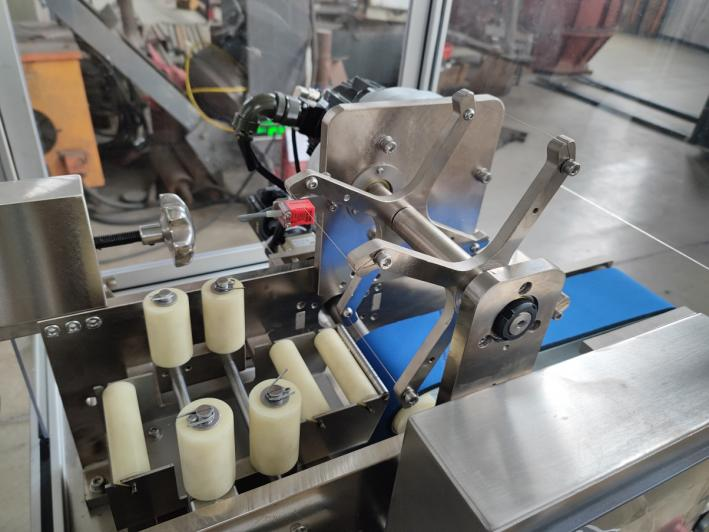

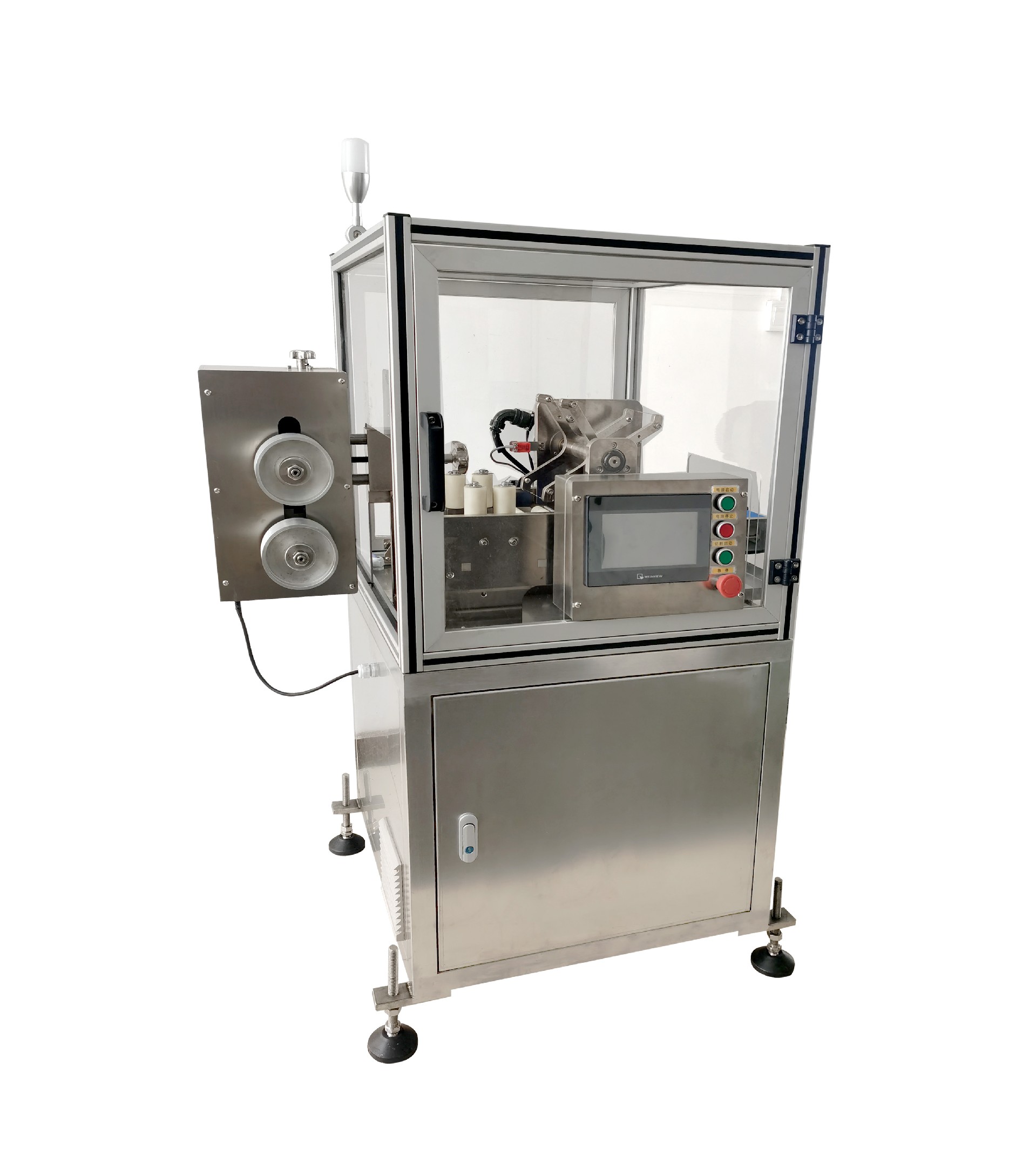

This laundry bar soap electronic printing cutting machine is an advanced model. It has all

the functions same as simple cutting machine.Along with mould wheels running by the

moving of soap bar (extruded from vaccum plodder),cutting machine stamps pattern

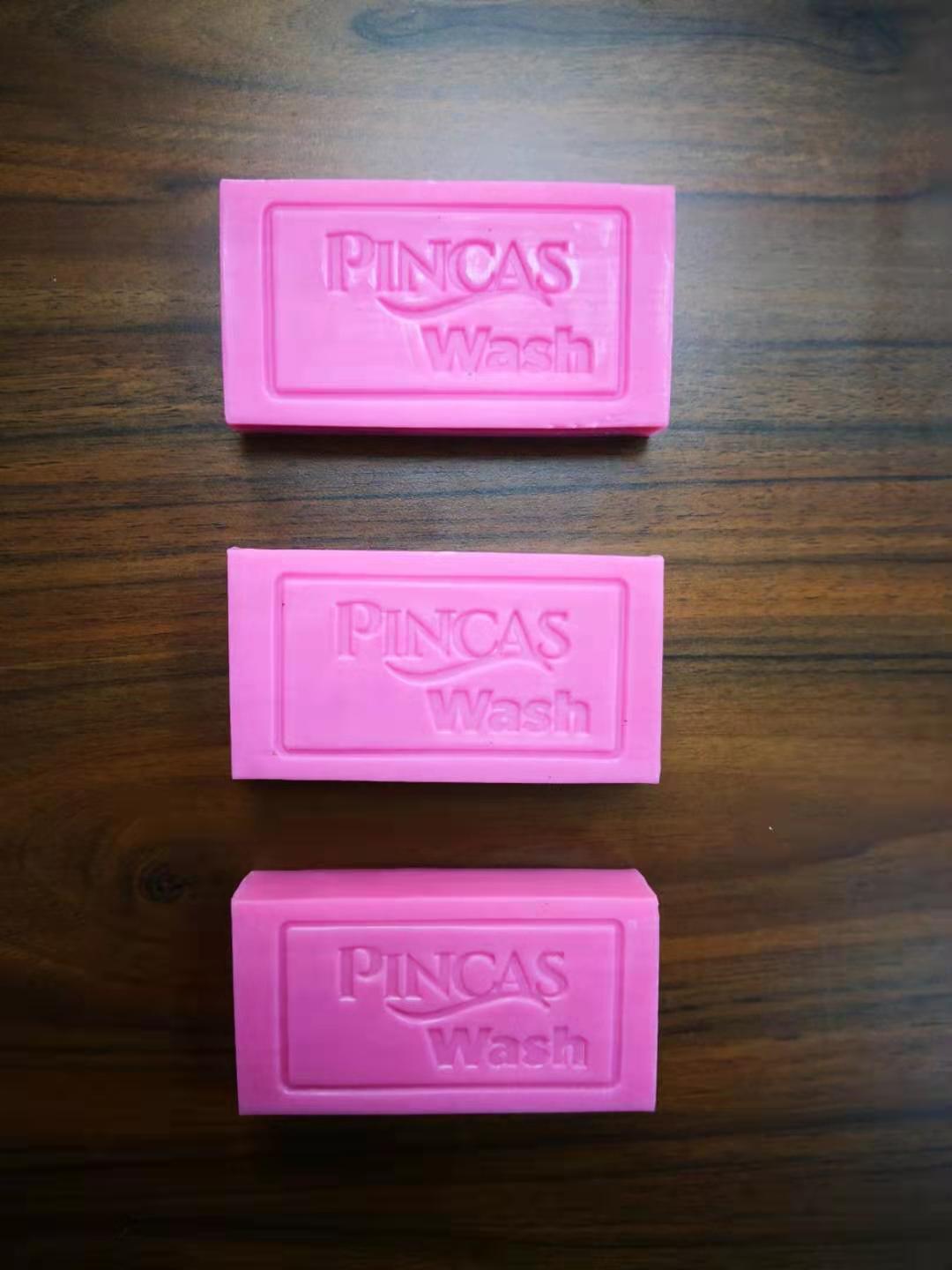

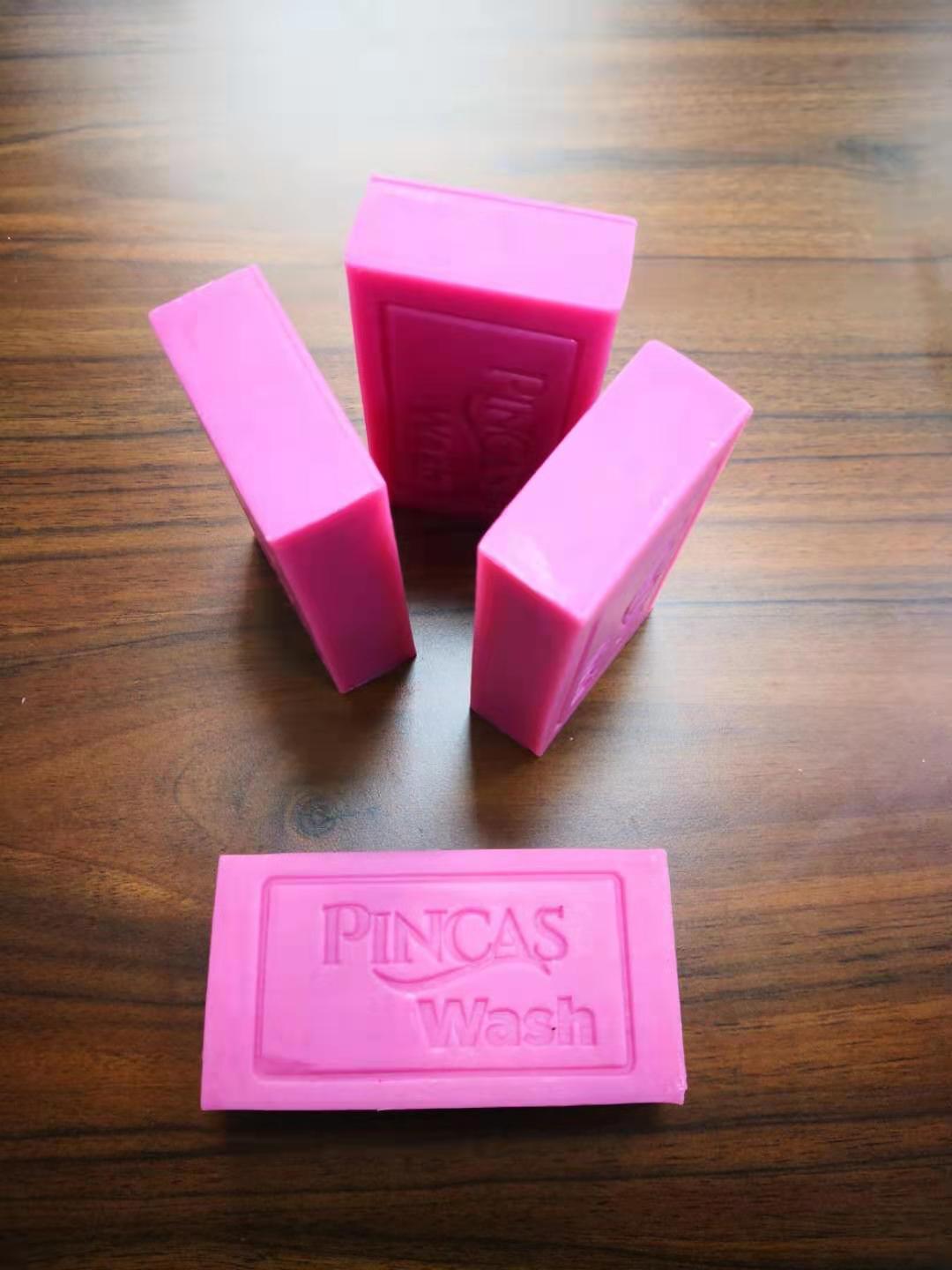

information on soap and then immediately patterned bar soap is cutted into pieces in the size

and weight required by customers.

Of course, the biggest advantage is that this electronic model is controlled by micro-

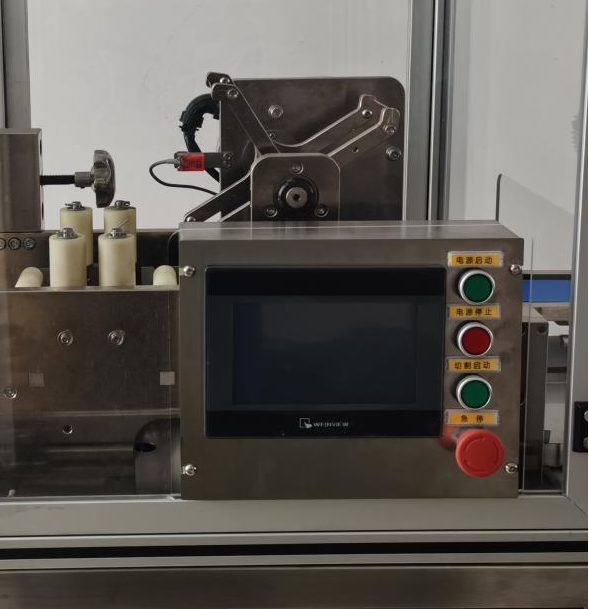

computer, hence by inputting different figures on the touchscreen,changes the cutting lengeth

of soap at will. It is more suitable for the customers that need produce various sizes of soap

from the same product line.

【Characteristics】

1.YASKAWA Servo Motor and control module are adopted, together with the automatic

alarming and stopping system, makes the machine more intelligent and easier for operation;

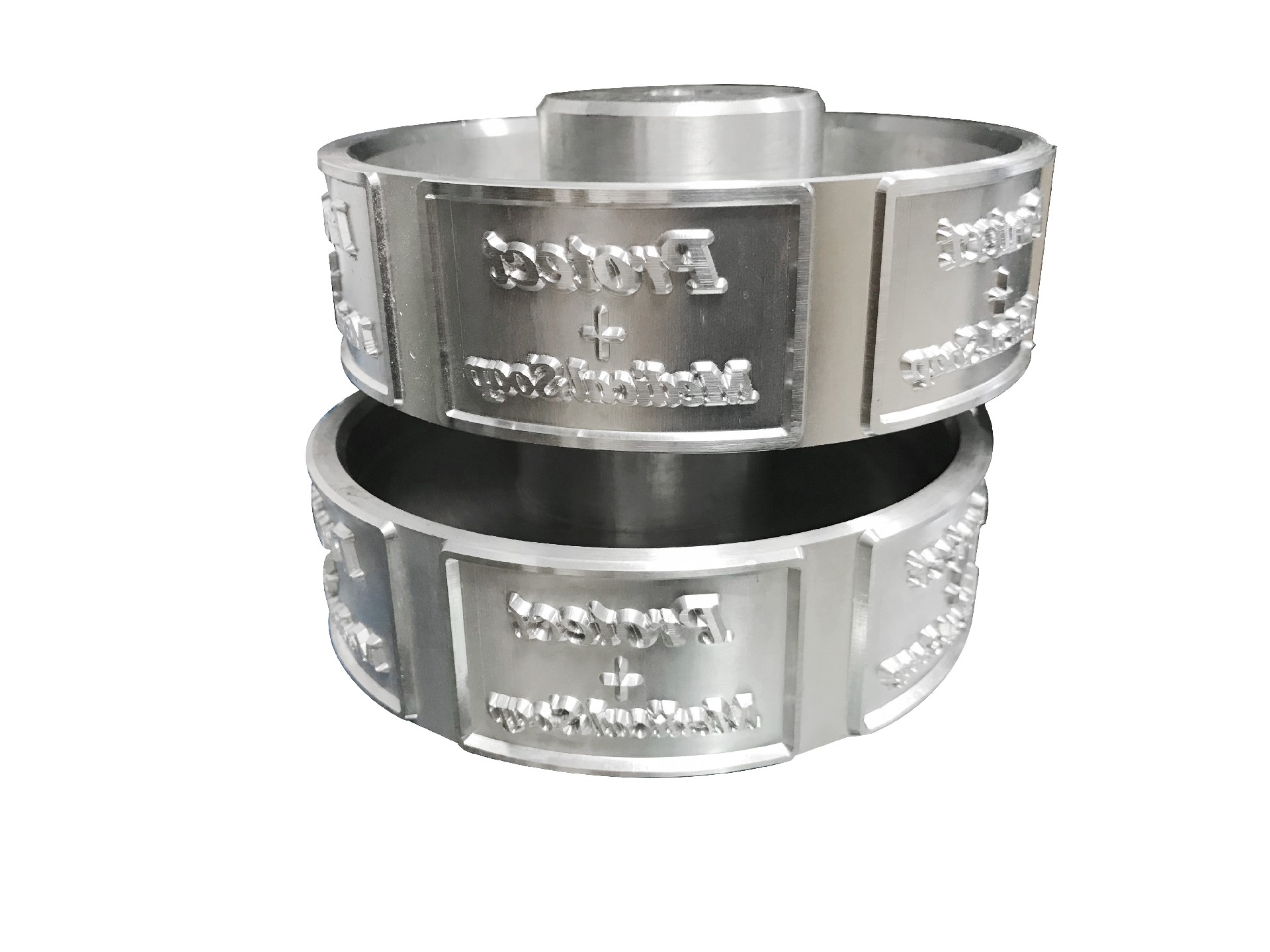

2.Printing mould is made by aluminum alloy, which is anti worn and logo printed is more

clearer and delicate;

3.Electronic laser tracking and photoelectric sensor system makes the change for different

soap length and weight convenient and accurate.

【Technical Parameters】

About Us

Company Profile

Jinan Zhonghui Machinery Manufacture Co.,Ltd is founded in 2009 our headquarters is

located in Jinan, and our production plant is located in Yucheng,Dezhou National Hi-Tech

Industrial Development Zone. We are a professional factory focus on the technique design,

manufacture and technical service of laundry soap,toilet soap,oil hydrolysis and fatty acid

distillation equipment.

Our company has passed the ISO9001 Quality System Certification. We have finished the

registration of “ZHONGHUI” brand as our trademark;

We have got several patents for our soap machine design and fabrication function.

Our product is designed by the engineers with above 35 years practical machine operation

experience,we can provide one-stop sulotion and turn-key project for our customers,starting

from the design of production process, production formula &consumption control, machine

fabrication and warehouse layout based on each customer’s particular requirements. We

would be responsible to supply the machine, guide the installation, make the test running and

operation training, till the customer’s own staff can operate the production line well and

produce out qualified end soaps.

Our products has alrealy been exported to more than 50 countries and regions all over the

world.Our customer group is getting bigger and bigger, many new customer comes to us by

the old customers’ introduction or heard about the project we have built.

Now besides the soap machine, we can also supply the related machine & equipment and

the production consumption materials, such as steam boiler, generator, soap packing

machine and soap noodles, soap packing material, caustic soda, perfume, colorant, calcium

powder, AES, EDTA, etc.

Wish we can get the chance to cooperate with you and develop together!
