For the soap production, normally it has two steps, first step is to use all kinds of vegetable oil
& animal fats and caustic soda (NaOH)as material to produce the semi product soap noodles and the second process is to use thus soap noodles as material to produce out end
bar soaps.
In these two production lines, we have our own unique design and patented technology,
especially the production line starting from oil saponification. Using vacuum drying and
continuous molding processes, we can produce various specifications of semi-finished soap
noodle and soap products with a fatty acid content of 45% to 80%.

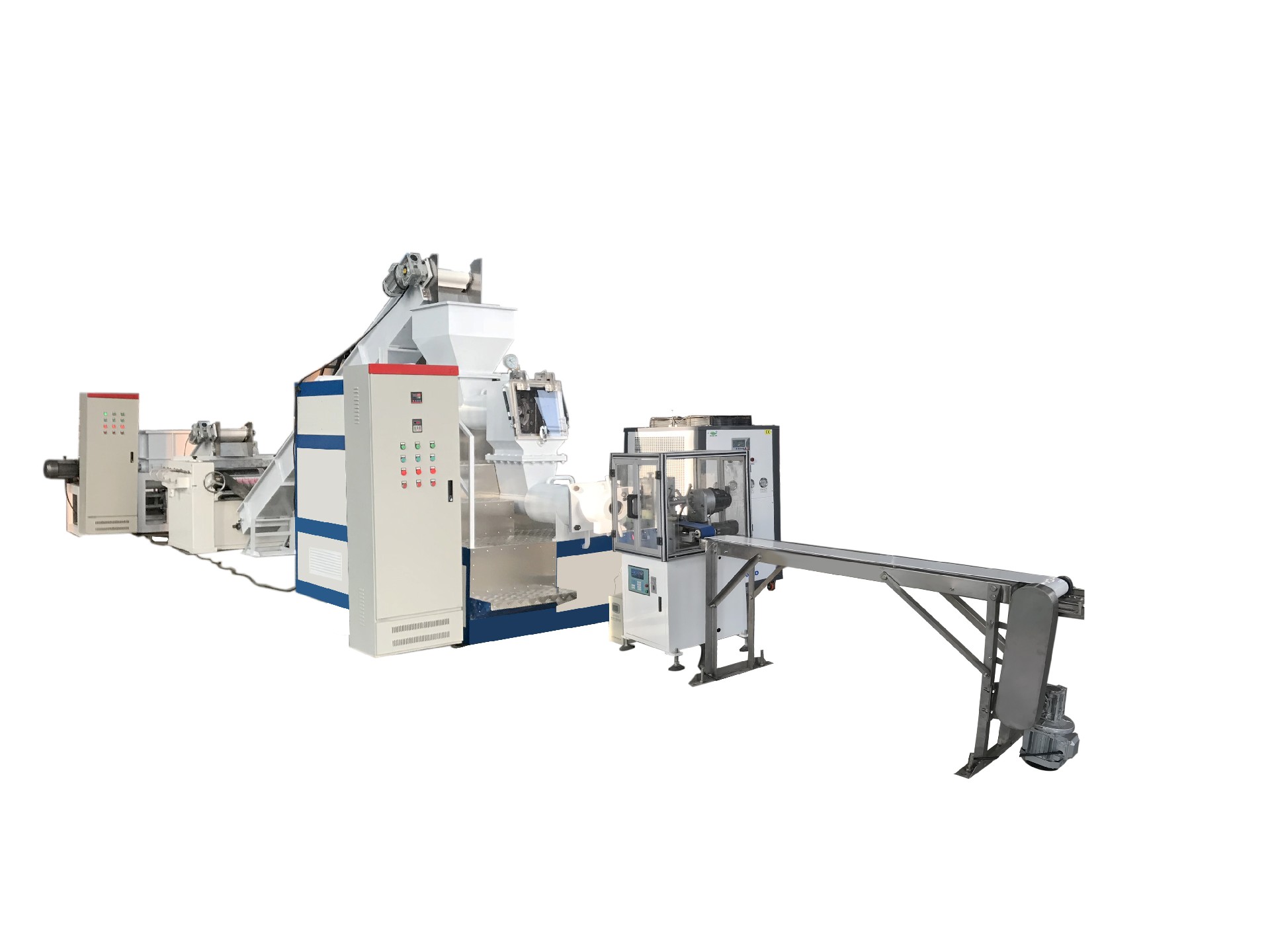

Laundry Soap Finishing Line from raw material (all oils +NaOH)
Oil de-coloring & refining→ Saponification (no waste-water discharge)→Vacuum drying
&Pelletizing (produce out soap noodles)→Mixer agitator mixing→ three roll mill
grinding→ vacuum plodder extruding→printing& cutting machine →packing machine

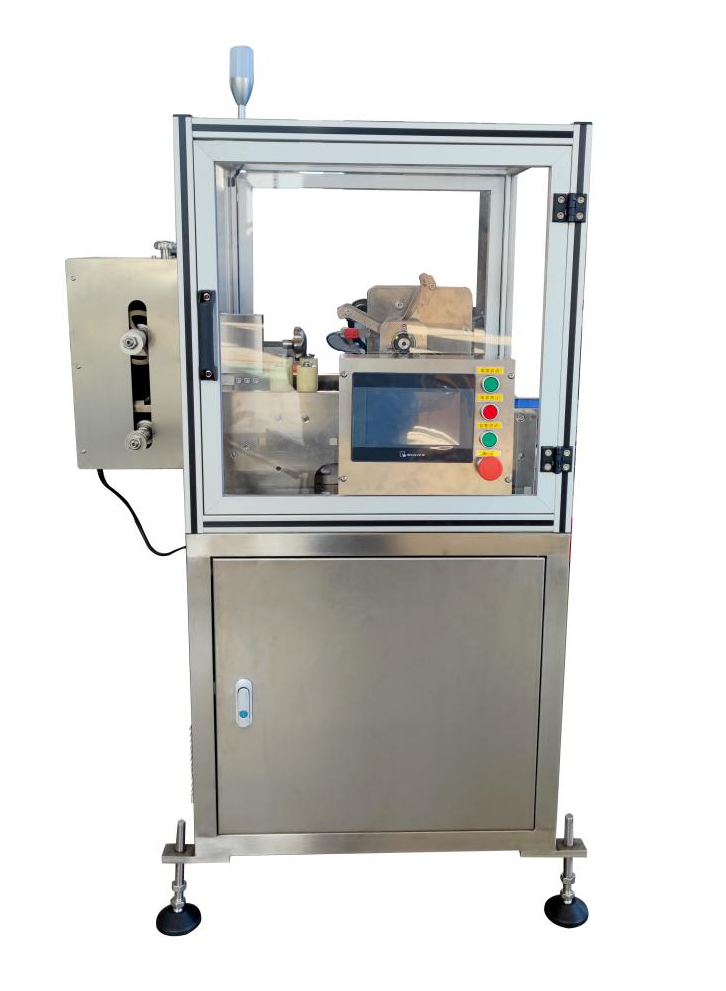

Servo Motor PLC Controller Laundry Bar
Soap Electronic Stamping Cutting Machine for Laundry
Soap Making Equipments
【Working Principles】

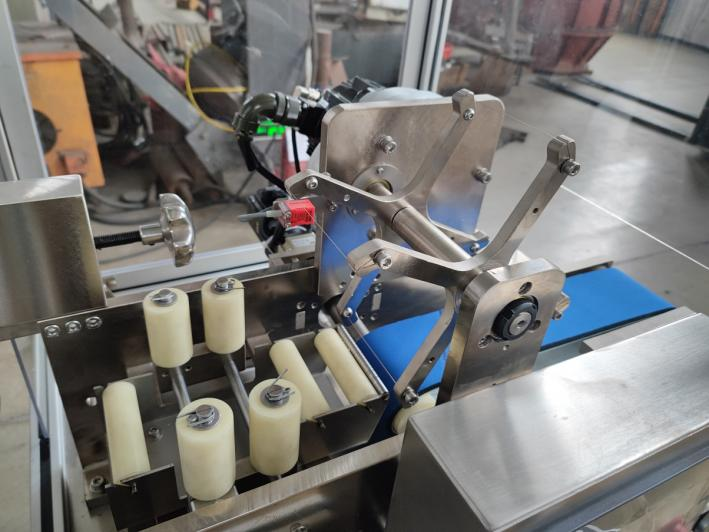

This laundry bar soap electronic stamping cutting machine is an advanced model. It has all the
functions same as simple cutting machine(no motor model). Along with mould wheels running

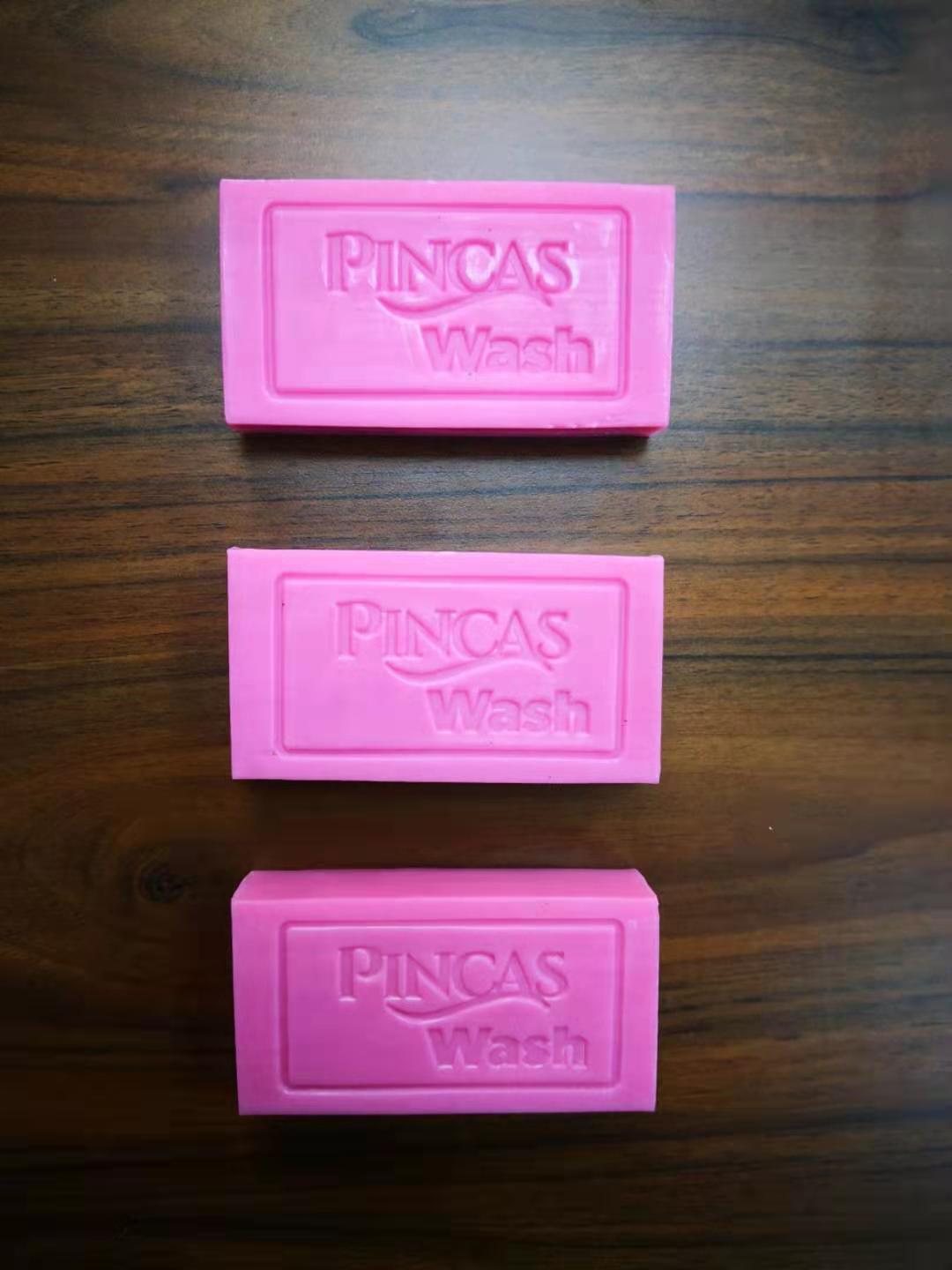

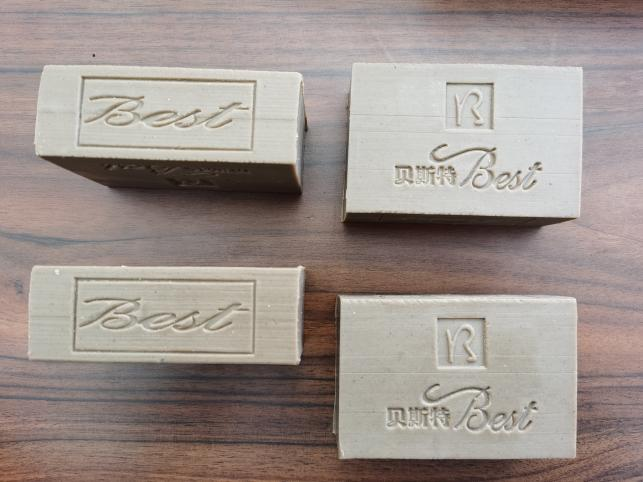

by the moving of bar soap (extruding from vaccum plodder),printing mould prints pattern on
soap and then immediately patterned bar soap is cutted into pieces in the size and weight
required by customers.Adopt Yaskawa servo motor and converter to keep high accuracy.
Of course, the obvious advantage is that this model is controlled by micro-computer, PLC
controller. Hense,by inputting different figures on the touchscreen, the cut length of the soap
would be easily changed. It is more suitable for the customers that need produce various
sizes of soap from the same product line.
【Characteristics】
1.YASKAWA Servo Motor and control module are adopted, together with the automatic
alarming and stopping system, makes the machine more intelligent and easier for operation;

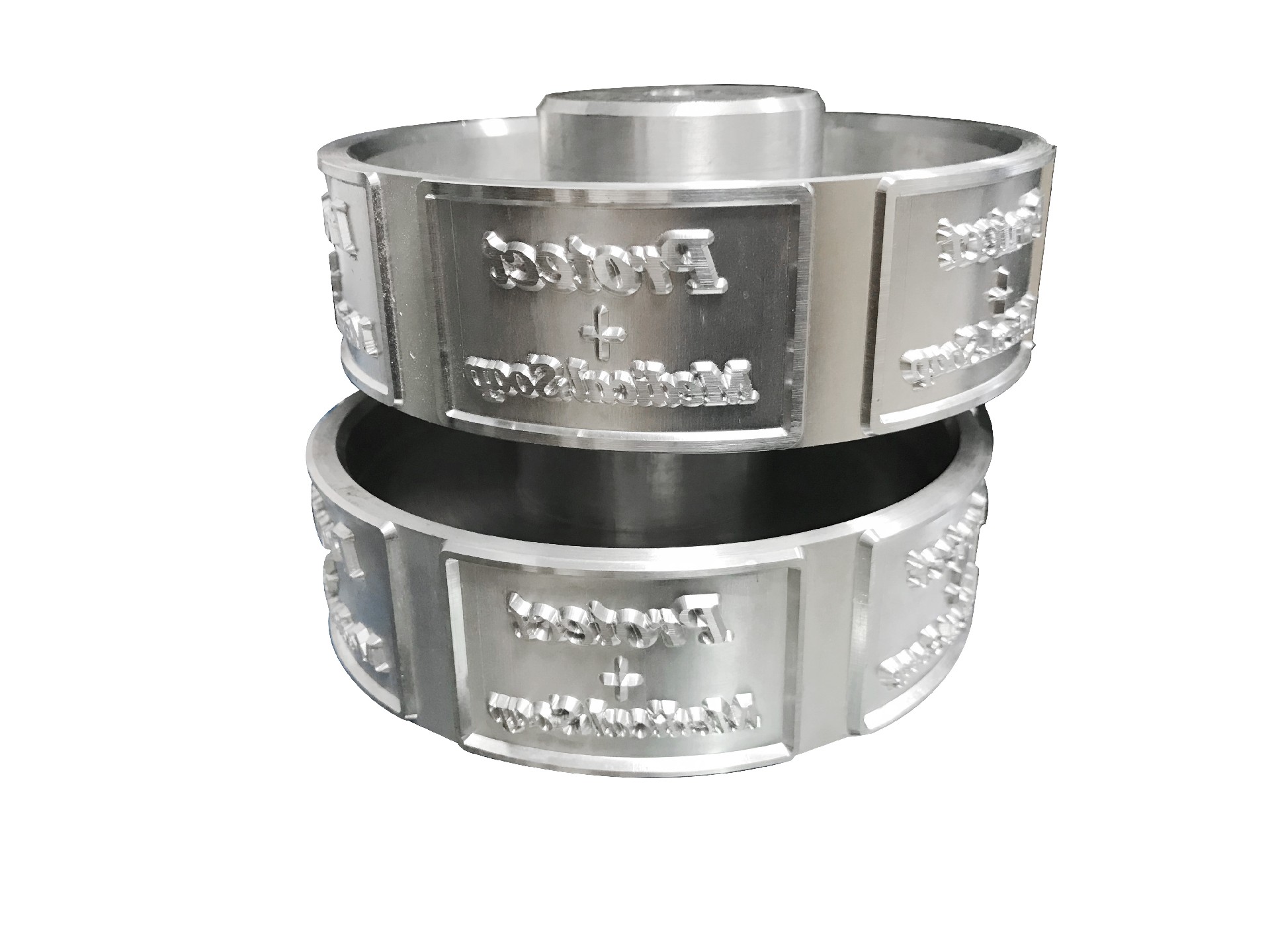

2.Printing mould is made of aluminum alloy, which is anti-worn and logo printed is more
clearer and delicate;
3.Electronic laser tracking and photoelectric sensor system makes the change for different
soap length and weight convenient and accurate.
【Technical Parameters】
Product name | laundry bar soap electronic stamping cutting machine |
Model | EC-70 |
Capacity | 300-5000kg/h |
Dimension and Weight of the soap | soap size,pattern,weight,logo would all be designed by customers' requirements |
Power | 0.85kw |
Dimension | 1260*730*1350mm |
Weight | 210kg |
Soap type | rectangle |
Mould | one set |
Advantages | safe,intelligent, easy operation, |
About Us
Company Profile
Jinan Zhonghui Machinery Manufacture Co.,Ltd is founded in 2009 our headquarters is
located in Jinan, and our production plant is located in Yucheng,Dezhou National Hi-Tech
Industrial Development Zone. We are a professional factory focus on the technique design,
manufacture and technical service of laundry soap,toilet soap,oil hydrolysis and fatty acid
distillation equipment.
Our company has passed the ISO9001 Quality System Certification. We have finished the
registration of “ZHONGHUI” brand as our trademark;
We have got several patents for our soap machine design and fabrication function.
Our product is designed by the engineers with above 35 years practical machine operation
experience,we can provide one-stop sulotion and turn-key project for our customers,starting
from the design of production process, production formula &consumption control, machine
fabrication and warehouse layout based on each customer’s particular requirements. We
would be responsible to supply the machine, guide the installation, make the test running and
operation training, till the customer’s own staff can operate the production line well and
produce out qualified end soaps.
Our products has alrealy been exported to more than 50 countries and regions all over the
world.Our customer group is getting bigger and bigger, many new customer comes to us by
the old customers’ introduction or heard about the project we have built.
Now besides the soap machine, we can also supply the related machine & equipment and
the production consumption materials, such as steam boiler, generator, soap packing
machine and soap noodles, soap packing material, caustic soda, perfume, colorant, calcium powder, AES, EDTA, etc.
Welcome to visit our factory on site,we will provide you with excellent-quality equipments and
reasonable prices, comprehensive professional and effective technical support & after-sales service, and make your journey to the Chinese factory enjoyable!
Wish we can get the chance to cooperate with you and develop together!
