Product Description
We can design and manufacture complete set of machines of laundry bar soap and toilet soap finishing production line,(including oil saponification,vacuum drying system,and mixer agitator,three roll mill,vacuum plodder,printing&cutting machine,packing machine.)
Basic production process:
Oil melting & mixing (based on formula requirements)→ Saponification (no waste-water discharge)→Vacuum drying &Pelletizing (produce out soap noodles)→ Soap finishing line (produce out end bar soaps)
Now just for laundry bar soap finishing production line:
This line uses soap noodle as material and the end products could be different quality of laundry bar soap and multi-purpose soap with fatty acid content 40%~70%. Capacity range is 150~3000kg/h.
The whole production process is continuous and fully automatic, including mixing, grinding, vacuum plodding and soap printing & cutting. The cutting machine have two models: one is simple rotary cutter without motor and the other is advanced electronic cutter with two servo motors and YASKAWA control system.

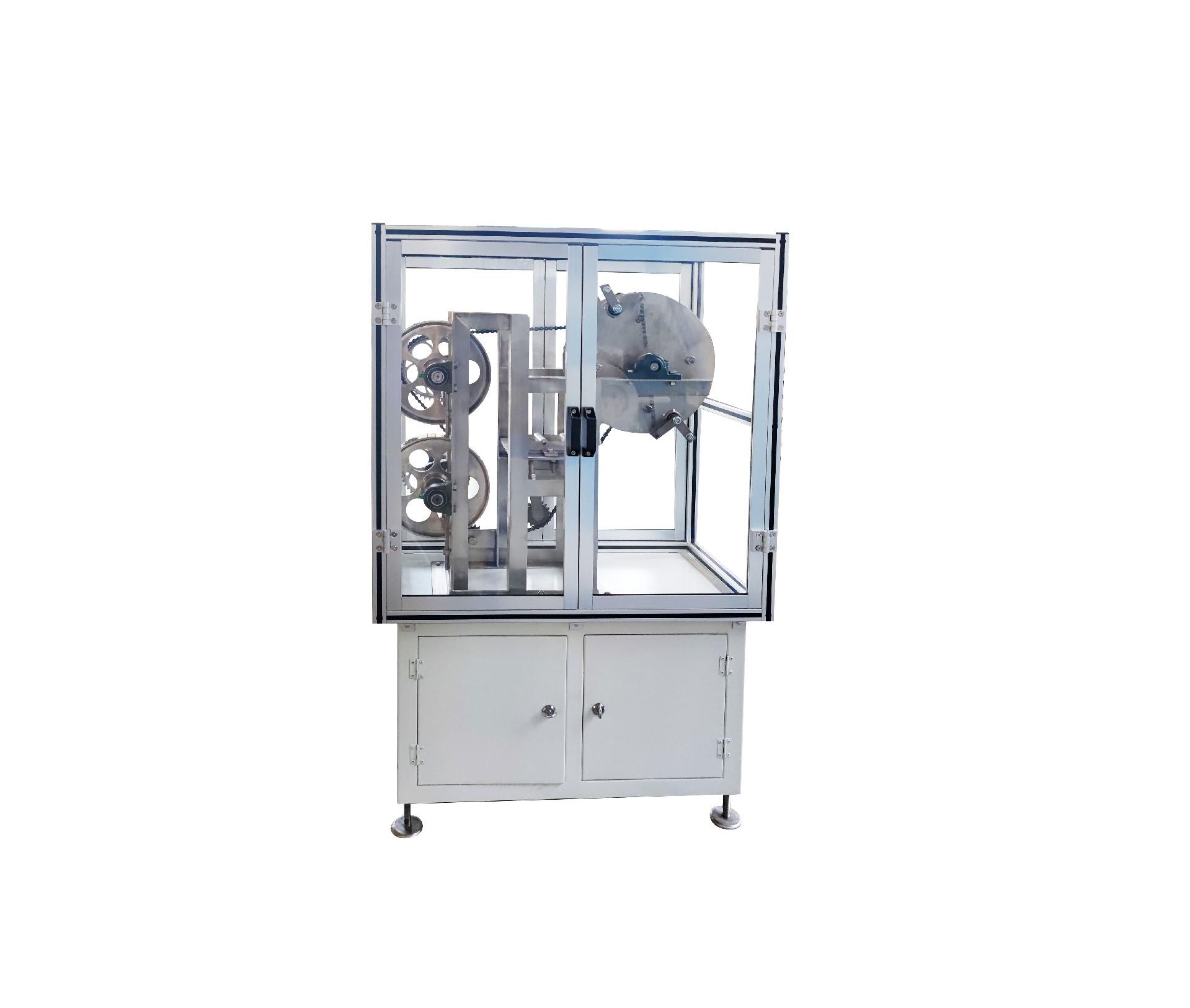

Energy Saving RC-50 Simple Laundry Soap Mechanical Chain
Roll Soap Printing Cutting Machine
【Working Principles】

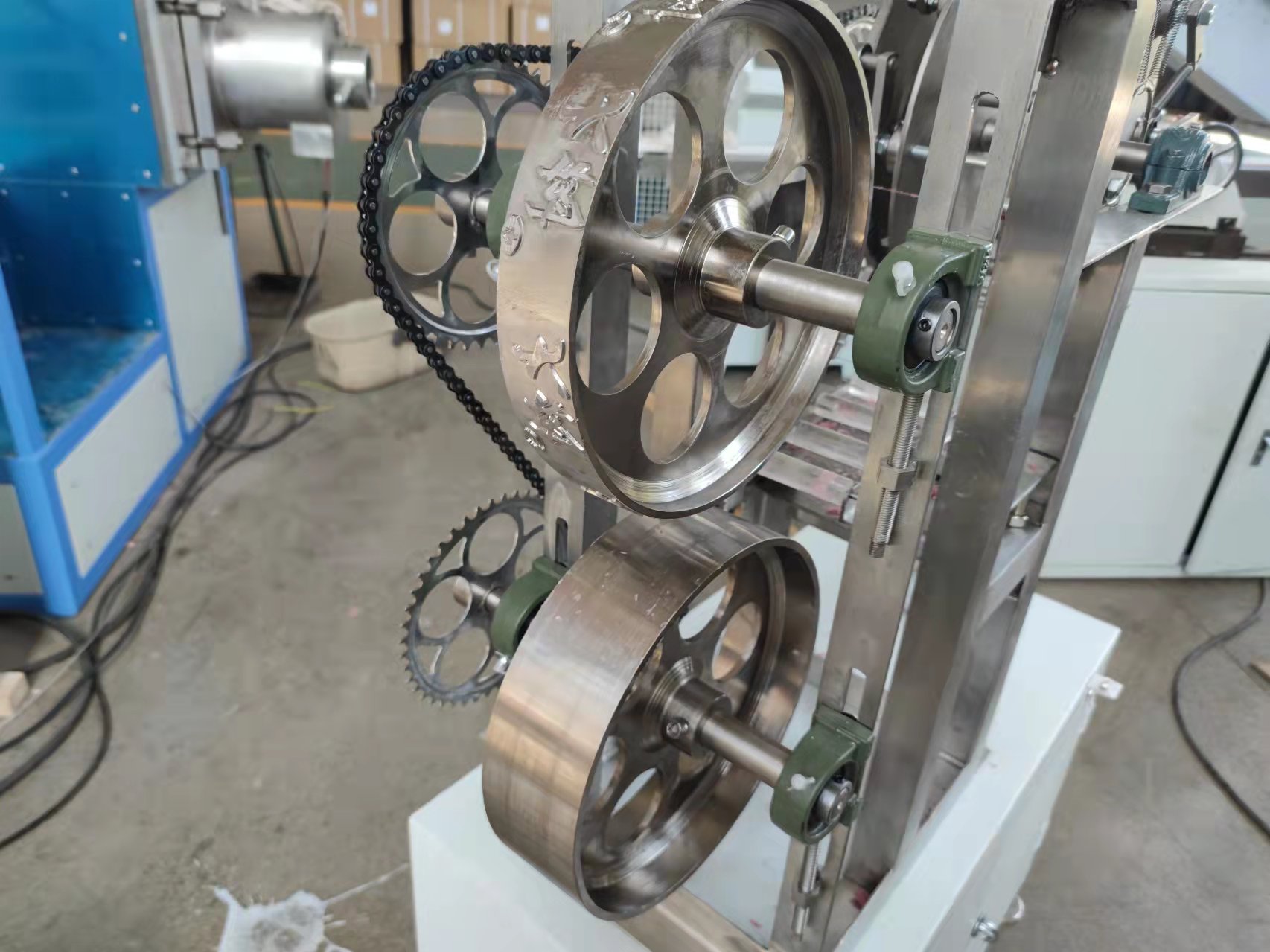

This laundry bar soap rolling printing &cutting machine adopts a simple but professional

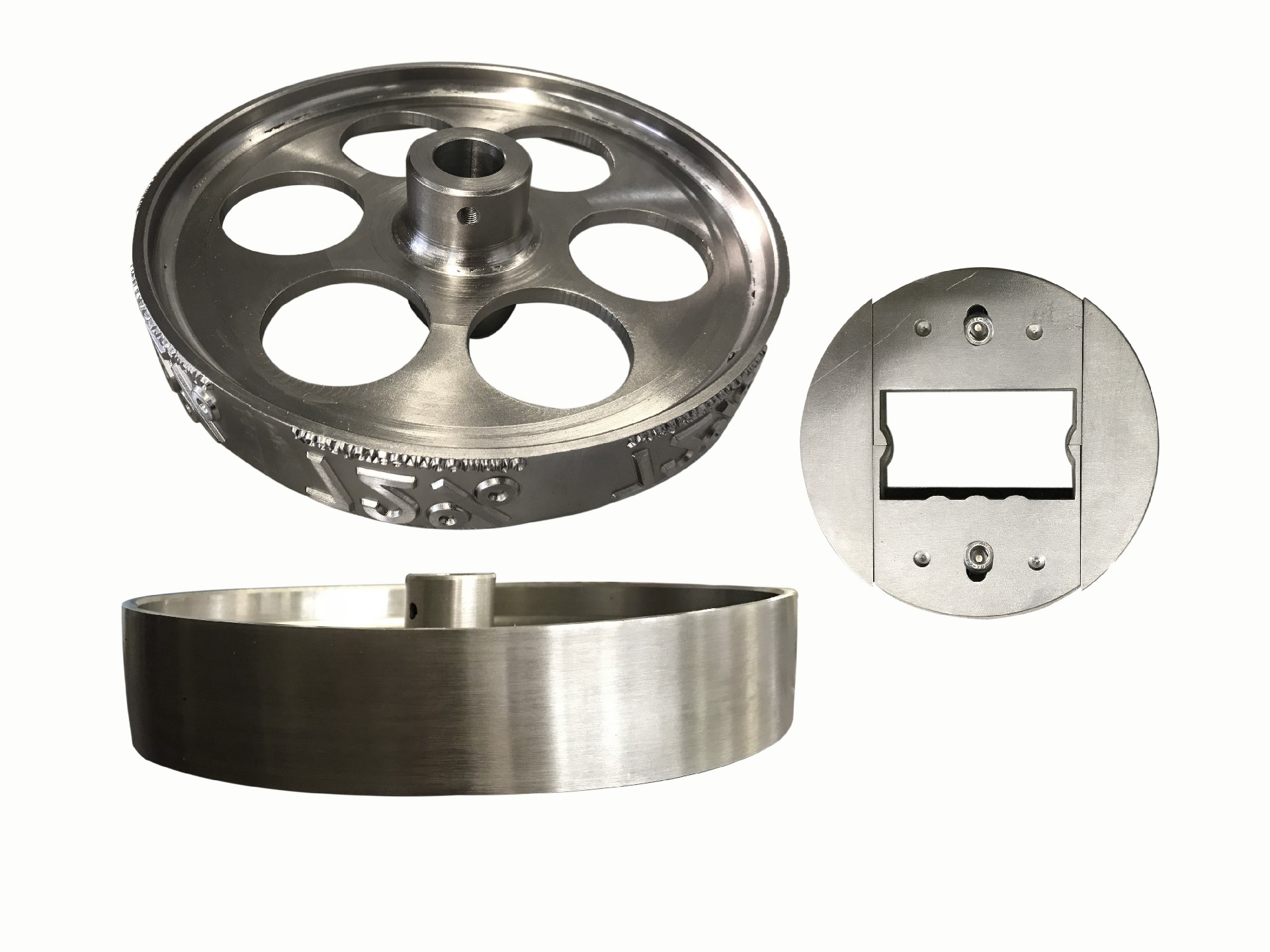

mechanical design. The logo wheel would be driven by the continuous extruding soap bar
and print the logos onto the soap surface, and then the cutting wheel would cut the long bar
soap into end piece soaps with required size and weight by our customers.
【Characteristics】
1.The mechanical design gives the machine many advantages, such as no energy
consumption, stable performance, easy maintenance and greater durability&against
breakage;
2.The distance between the two pieces of printing wheel is adjustable, which ensures the
logo would be printed clear and exquisite no matter the soap thickness is bigger or smaller.
【Technical Parameters】
Product name | simple laundry soap mechanical roll printing & cutting machine |
Model | RC-50 |
Capacity | 200-4000pcs/min |
Dimension &Weight of the soap | soap size,pattern, weight and logo would all be based on customers' requirements |
Dimension | 940*430*910mm |
Weight | 150kg |
Soap type | rectangular |
About us
Company Information
Jinan Zhonghui Machinery Manufacture Co.,Ltd is founded in 2009 our headquarters is
located in Jinan, and our production plant is located in Yucheng,Dezhou National Hi-Tech
Industrial Development Zone. We are a professional factory focus on the technique design,
manufacture and technical service of laundry soap,toilet soap,oil hydrolysis and fatty acid
distillation equipment.
Our company has passed the ISO9001 Quality System Certification. We have finished the
registration of “ZHONGHUI” brand as our trademark;
We have got several patents for our soap machine design and fabrication function.
Our product is designed by the engineers with above 35 years practical machine operation
experience,we can provide one-stop sulotion and turn-key project for our customers,starting
from the design of production process, production formula &consumption control, machine
fabrication and warehouse layout based on each customer’s particular requirements. We
would be responsible to supply the machine, guide the installation, make the test running and
operation training, till the customer’s own staff can operate the production line well and
produce out qualified end soaps.
Our products has alrealy been exported to more than 50 countries and regions all over the
world.Our customer group is getting bigger and bigger, many new customer comes to us by
the old customers’ introduction or heard about the project we have built.
Now besides the soap machine, we can also supply the related machine & equipment and
the production consumption materials, such as steam boiler, generator, soap packing
machine and soap noodles, soap packing material, caustic soda, perfume, colorant, calcium
powder, AES, EDTA, etc.
Welcome to visit our factory on site,we will provide you with excellent-quality equipments and
reasonable prices, comprehensive professional and effective technical support & after-sales
service, and give your journey to the Chinese factory a pleasant experience!
Wish we can get the chance to cooperate with you and develop together!
