Product Instruction

We can design and manufacture complete set of machines of laundry bar soap and toilet bar

soap finishing production line,(including oil saponification,vacuum drying system,pelletizing

machine and mixer agitator,three roll mill,vacuum plodder,printing&cutting machine,packing

machine.)with perfect after-sales service and technical support.


Basic production process:

Oil melting & mixing (based on formula requirements)→ Saponification (no waste-water

discharge)→Vacuum drying &Pelletizing (produce out soap noodles)→ Soap finishing line

(produce out end bar soaps)

Now just for laundry bar soap finishing production line:


This line uses soap noodle as material and the end products could be different quality of

laundry bar soap and multi-purpose soap with fatty acid content 40%~70%. Capacity range is

150~3000kg/h.

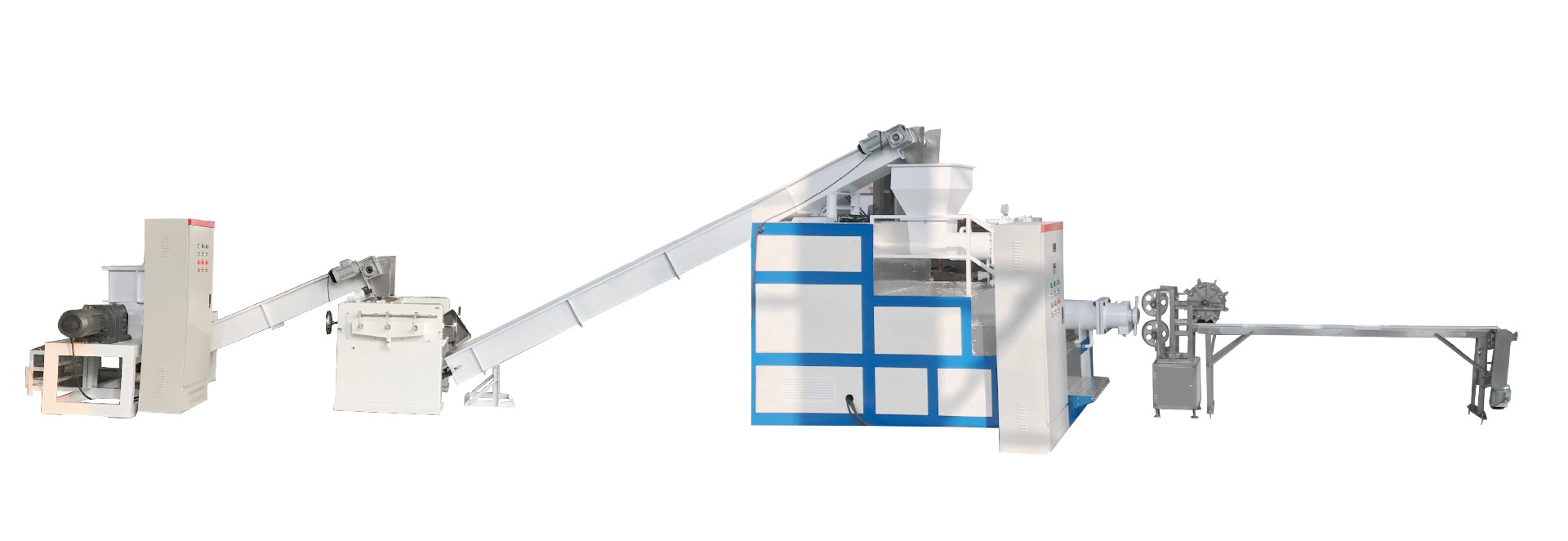

The whole production process is continuous and fully automatic, including mixing, grinding,

vacuum plodding and soap printing & cutting. The cutting machine have two models: one is

simple mechanical chain working cutter without motor and the other is advanced electronic

cutter with two servo motors and YASKAWA control system.

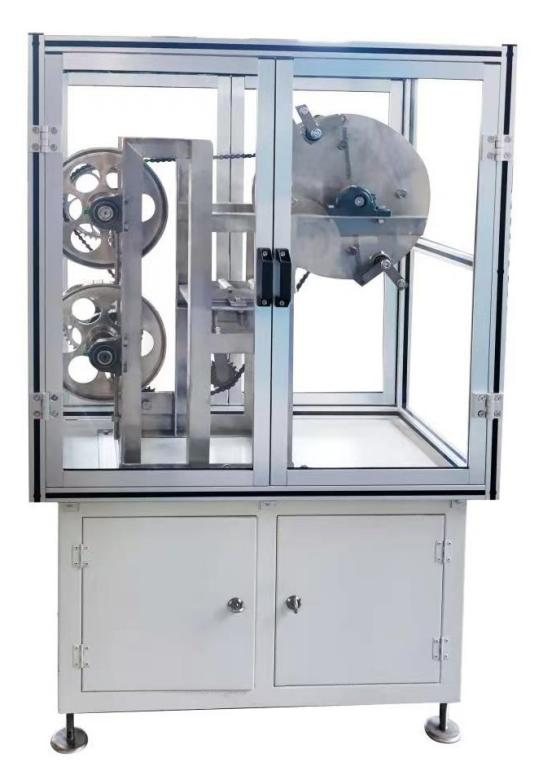

RC-50 Laundry Soap Mechanical Rotary Chain Wheel Rolling

Soap Cutting Machine for Rectangular Shape Laundry Soap Making

【Working Principles】

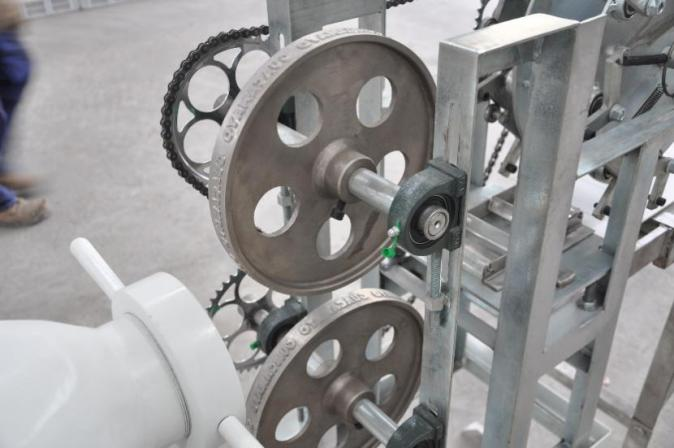

This laundry bar soap mechanical chain working printing &cutting machine adopts a simple

but professional mechanical design. The printing wheel would be driven by the continuous

extruding soap bar from vacuum plodder and prints the pattern onto the soap surface, and

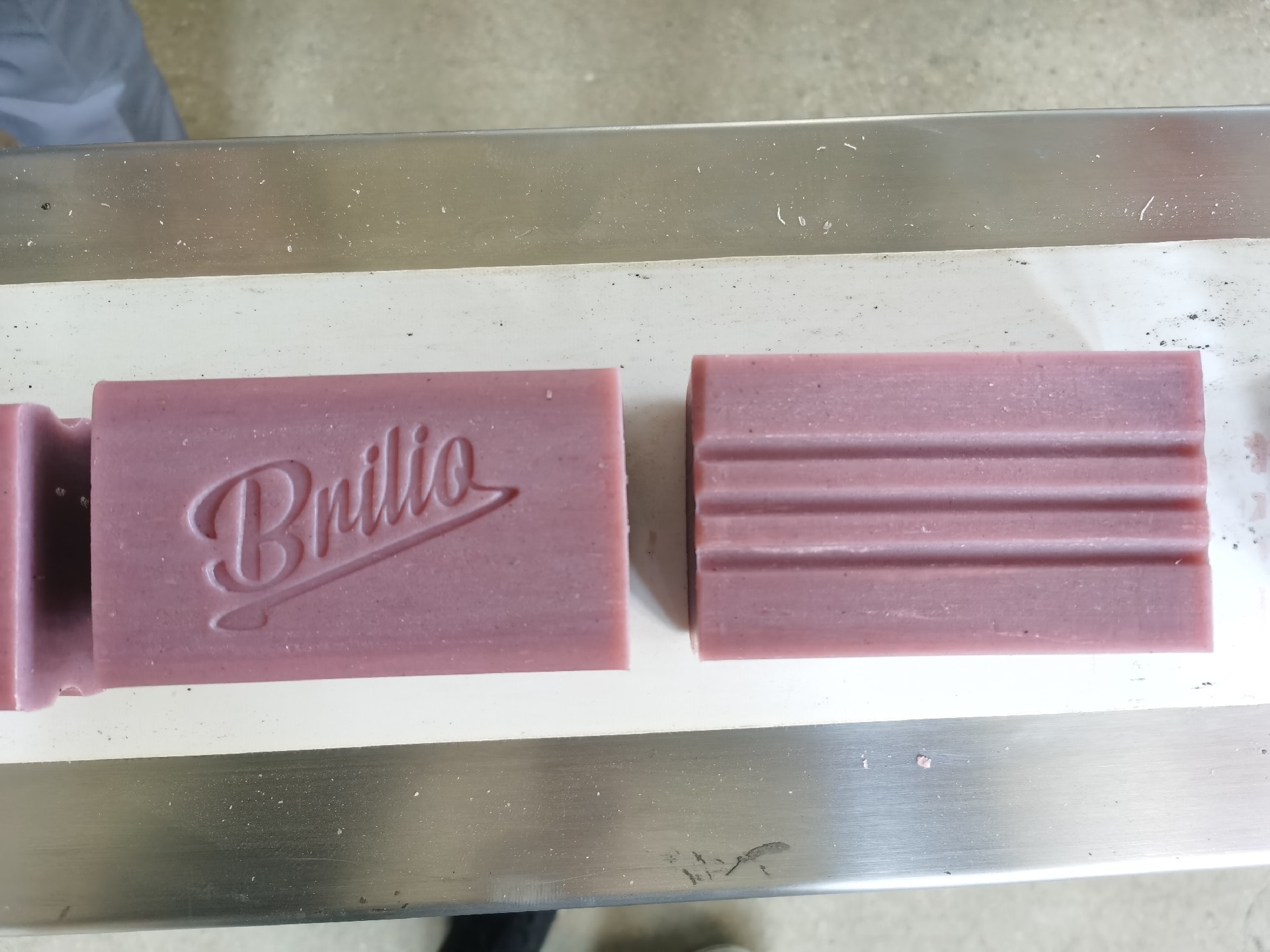

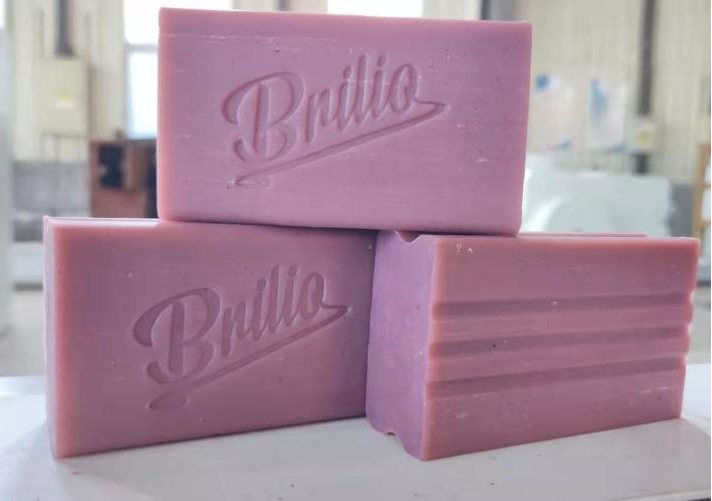

then the cutting wheel would cut the long bar soap into end cake soaps with required size

and weight by our customers.

【Characteristics】

1.The mechanical design gives the machine many benefits, such as no energy

consumption;stable performance, easy maintenance and greater durability&against breakage;

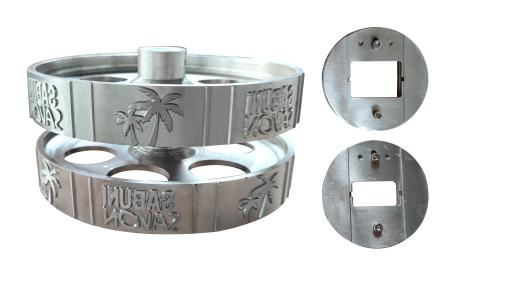

2.The distance between the two pieces of printing wheel is adjustable, which ensures the

logo would be printed clear and exquisite no matter the soap thickness is bigger or smaller.

【Technical Parameters】

About Us

Company Profile

Jinan Zhonghui Machinery Manufacture Co.,Ltd is founded in 2009,  headquarters is located

in Jinan, and our production plant is located in Yucheng,Dezhou National Hi-Tech Industrial

Development Zone. We are a professional factory focus on the technique design,

manufacture and technical service of laundry soap,toilet soap,oil hydrolysis and fatty acid

distillation equipment.

Our company has passed the ISO9001 Quality System Certification. We have finished the

registration of “ZHONGHUI” brand as our trademark;

We have got several patents for our soap machine design and fabrication function.

Our product is designed by the engineers with above 35 years practical machine operation

experience,we can provide one-stop sulotion and turn-key project for our customers,starting

from the design of production process, production formula &consumption control, machine

fabrication and warehouse layout based on each customer’s particular requirements. We

would be responsible to supply the machine, guide the installation, make the test running and

operation training, till the customer’s own staff can operate the production line well and

produce out qualified end soaps.
