Toilet Soap Production Finishing Line --toilet soap stamping machine

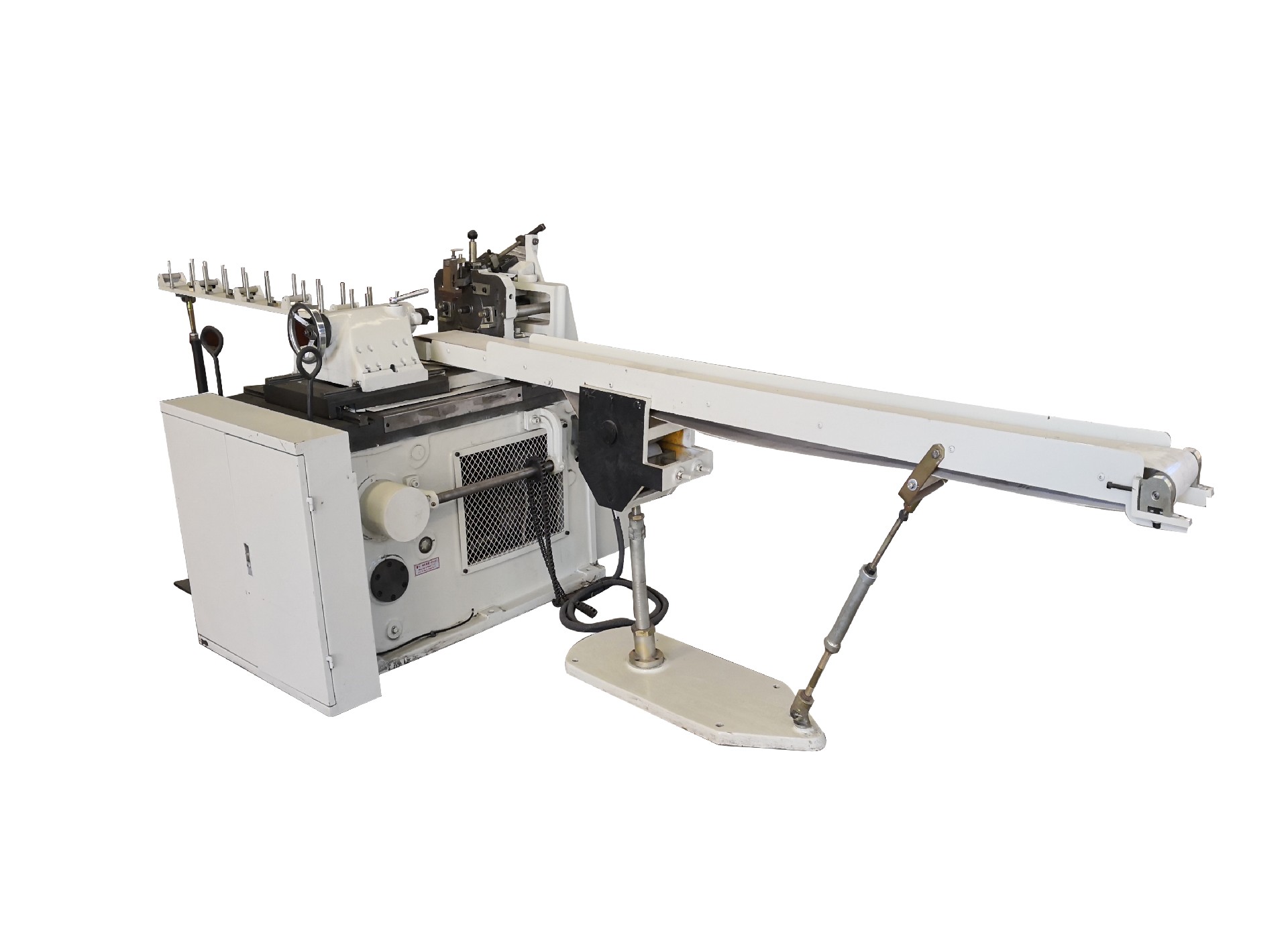

The XDA-120 one cavity type toilet soap stamping machine is used to stamp out the end

soaps from the continuous extruded long bar (from front vacuum plodder) required size,

shape, logo, pattern and weight by customers.This stamping machine can produce round,

oval, quadrate or other shapes of soaps with different logo.

Matched with refrigerator and refrigerating mould (temperature kept to be -15℃ to -20℃),

soap cakes can fall down easier and faster from the mould and have a smooth appearance to

show a good looking.


Characteristics:

1.The unique design of Crank-Link mechanism & Linear guide slide reduces the stamping

vibration and noise, prolongs the lifespan and improves production efficiency;

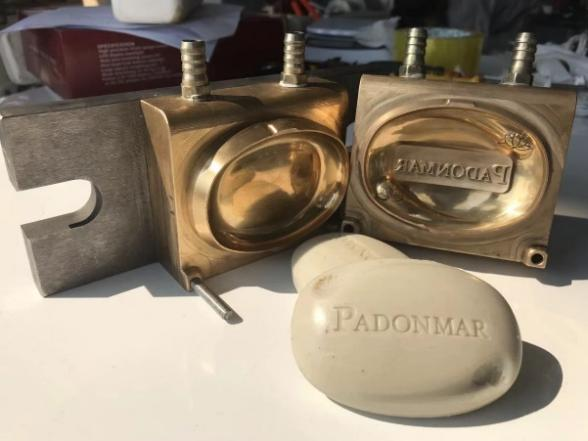

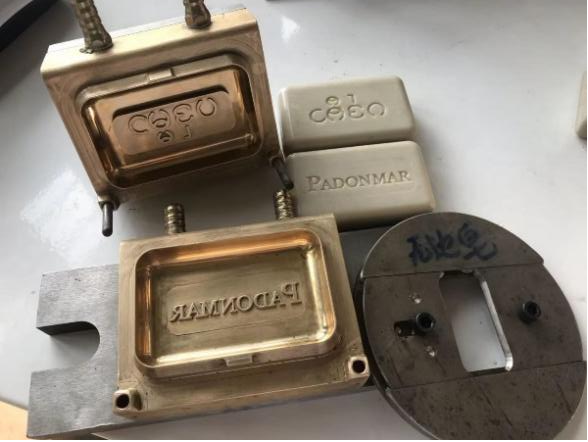

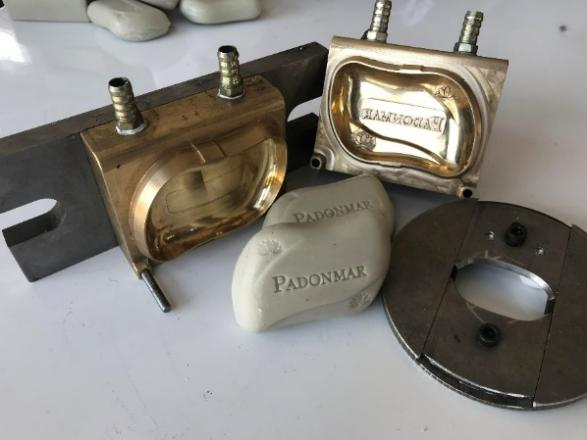

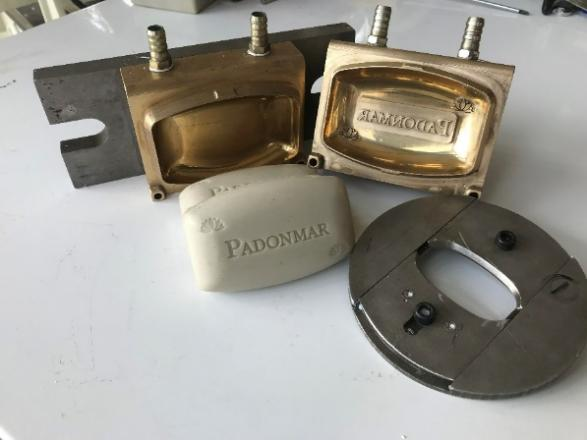

2.Soap mould is precision machined from forged copper material, which is anti-worn with an

more smooth appearance, clearer logo and longer lifespan;

3.Inter-layer of the mould is filled by chilling agent, which is connected with the refrigerator

(-15℃~-20℃), so after stamping, the de-mould would be easy and fast, soap can have a

smooth appearance after demolding;

4.Mould change is convenient, which ensures the same machine can produce various kinds

of soap with different shape, logo, size and weight.

Technical Parameters:

About Us

Company Profile


Jinan Zhonghui Machinery Manufacture Co.,Ltd is founded in 2009 our headquarters is

located in Jinan, and our production plant is located in  Yucheng,Dezhou National Hi-Tech

Industrial Development Zone. We are a professional factory focus on the technique design,

manufacture and technical service of laundry soap,toilet soap,oil hydrolysis and fatty acid

distillation equipment.

Our company has passed the ISO9001 Quality System Certification. We have finished the

registration of “ZHONGHUI” brand as our trademark;

We have got several patents for our soap machine design and fabrication function.

Our product is designed by the engineers with above 35 years practical machine operation

experience,we can provide one-stop sulotion and turn-key project for our customers,starting

from the design of production process, production formula &consumption control, machine

fabrication and warehouse layout based on each customer’s particular requirements. We

would be responsible to supply the machine, guide the installation, make the test running and

operation training, till the customer’s own staff can operate the production line well and

produce out qualified end soaps.

Our products has alrealy been exported to more than 50 countries and regions all over the

world.Our customer group is getting bigger and bigger, many new customer comes to us by

the old customers’ introduction or heard about the project we have built.

Now besides the soap machine, we can also supply the related machine & equipment and

the production consumption materials, such as steam boiler, generator, soap packing

machine and soap noodles, soap packing material, caustic soda, perfume, colorant, calcium

powder, AES, EDTA, etc.

Wish we can get the chance to cooperate with you and develop together!
