Toilet soap finishing production line (from soap noodle)

This line uses soap noodle as material and the end products could be different quality of toilet

and hotel soaps with fatty acid content 60%~80%. Capacity range is 200~2000kg/h.

The whole production process is continuous and fully automatic, including mixing, two times

grinding, vacuum plodding and soap stamping & cutting. Based on quality requirements,

some customer add extra refinery machine, which would help to improve the smooth grade of

end soap and increase the market competitive ability.

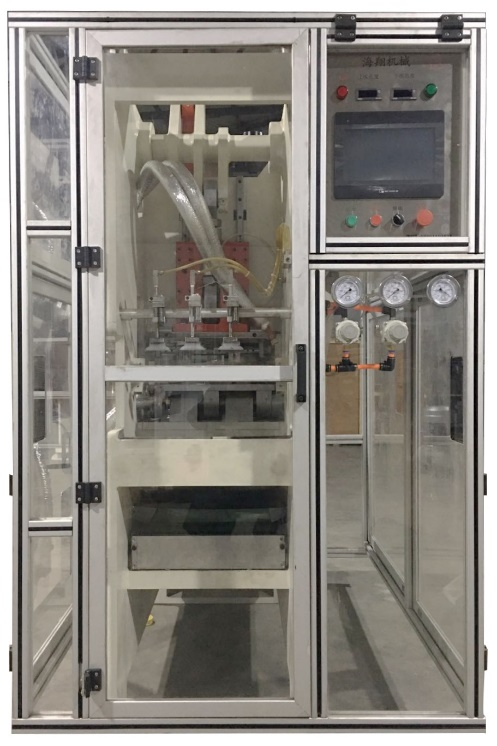

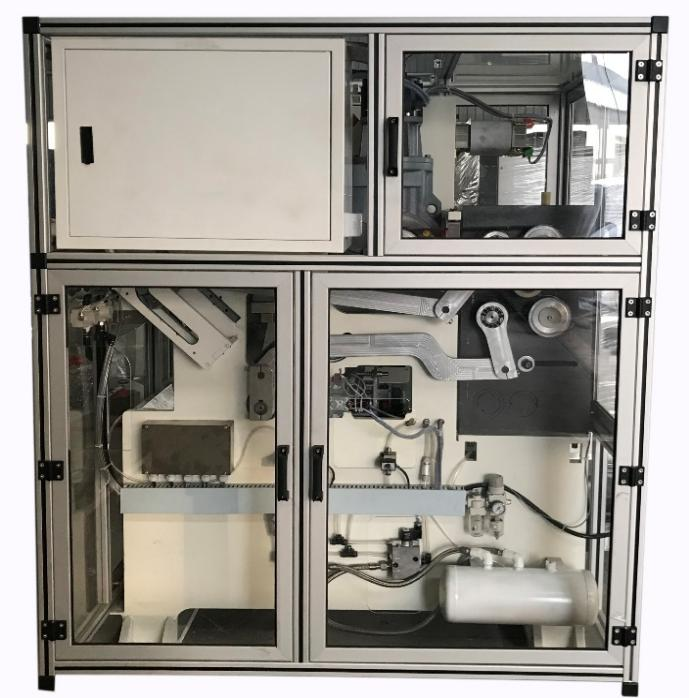

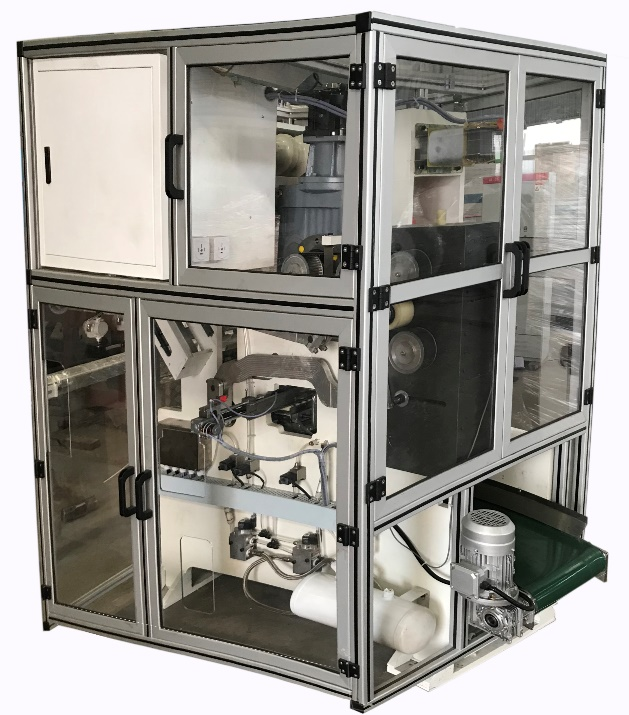

Toilet Soap Machine Multi Cavities Soap Vertical Stamper

【Working Principles】

This is an advanced model of stamping machine, used to stamp out the end piece soaps

from the cut long bar (cutted by electronic cutting machine )with the required size, shape,

logo, pattern and weight.

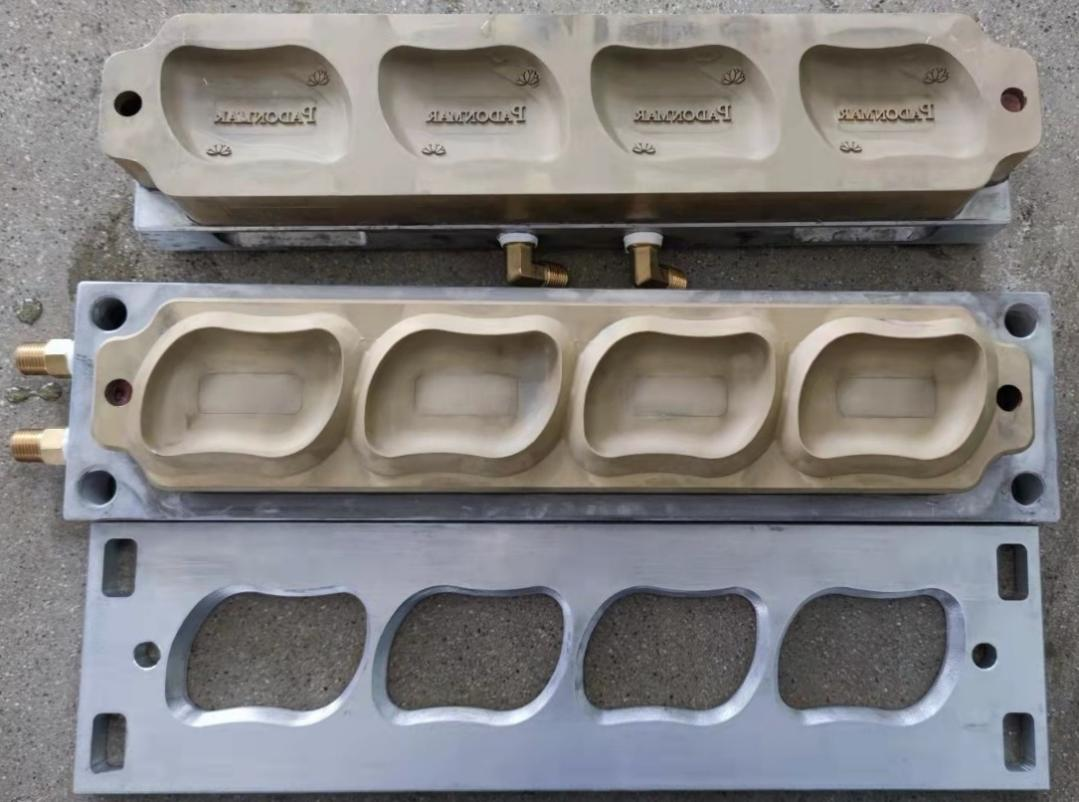

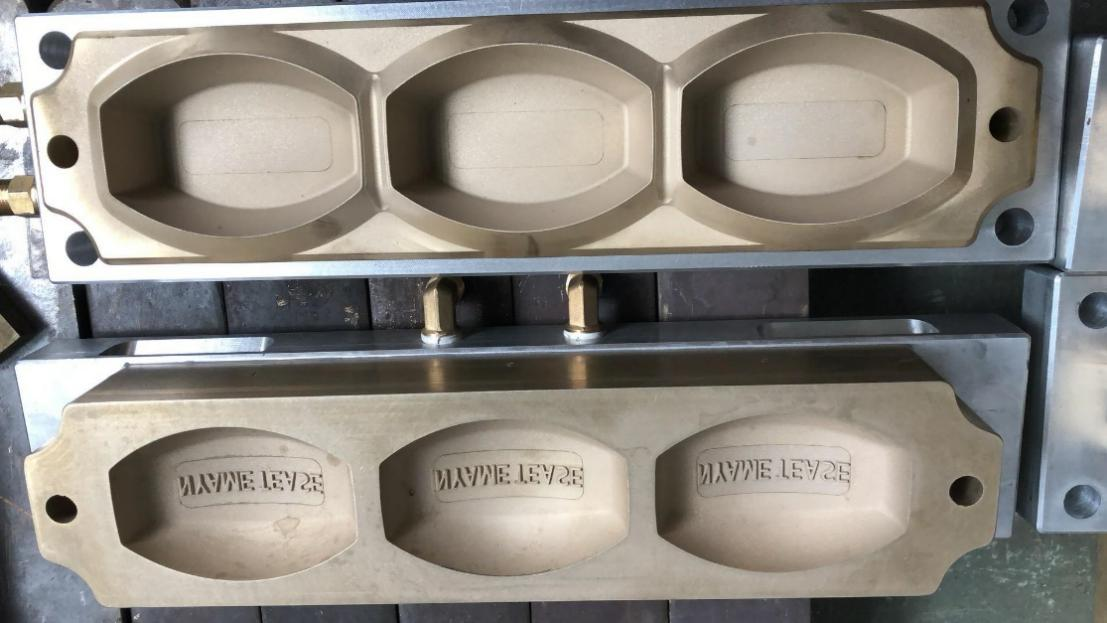

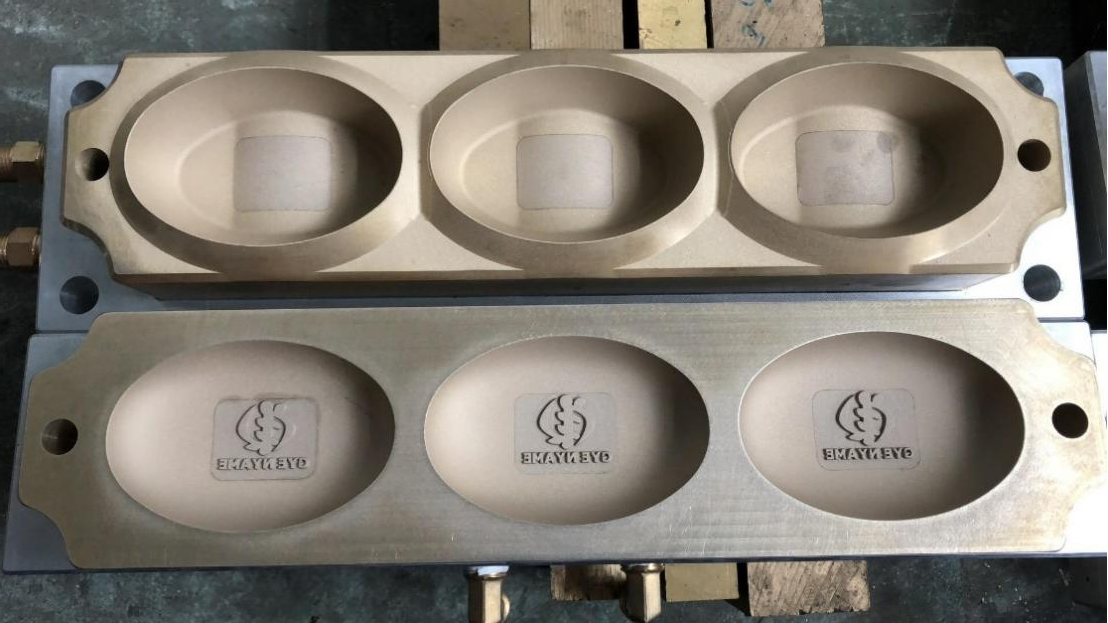

The copper mould is precised made by sandblasting processed with refrigerant on the inner

layer,the soap body is easy to demould with clear pattern and smooth neat appearance.

Edge trimmer is equipped to remove the soap edges, which would be recycled back to the

plodder automatically by conveyor belts.

Soap edges is removed automatically,so soap body is clean and can be fed into the follow

packing system continuously.

This machine is highly intelligent and automatic, which greatly reduces labor costs.

【Characteristics】

1.Delicate design of Cam Mechanism make the stamping movement smooth, stable and low

impact, which is more suitable for high speed working;

2.Exquisite sand blasting copper mould, together with circulating chilling agent in the inter-

layer, ensure the end soap would have small stamping line, smooth surface and clear logo;

3.Soap mould change is simple and convenient, so can produce various kinds of soap with

different shape, size, logo and weight;

4.Soap edges is removed automatically,so soap body is clean and can be fed into the follow

packing system continuously.

【Technical Parameters】
