Toilet Soap Finishing Production Line --form soap noodle

This line uses soap noodle as material and the end products could be different quality of toilet and

hotel soaps with fatty acid content 60%~80%. Capacity range is 200~2000kg/h.


The whole production process is continuous and fully automatic, including mixing, two times

grinding, vacuum plodding and soap stamping & cutting. Based on quality requirements, some

customer add extra refinery machine, which would help to improve the smooth grade of end

soap and increase the market competitive ability.

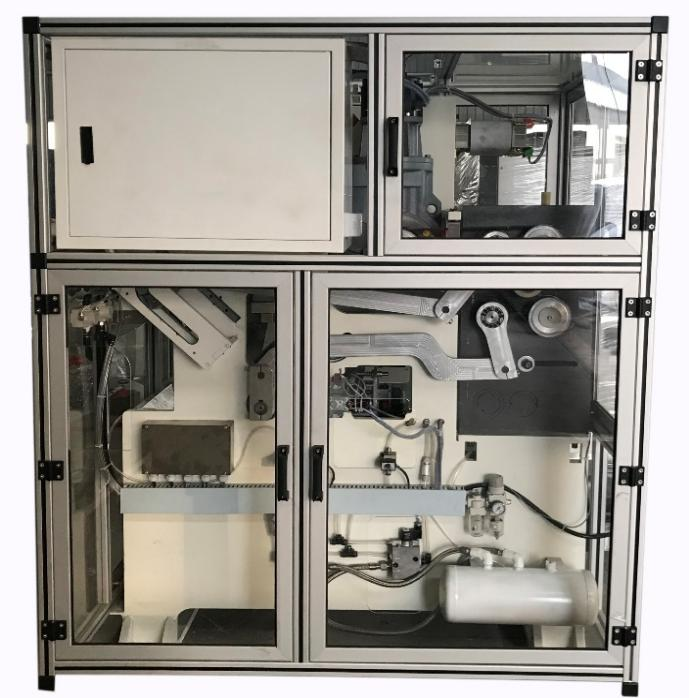

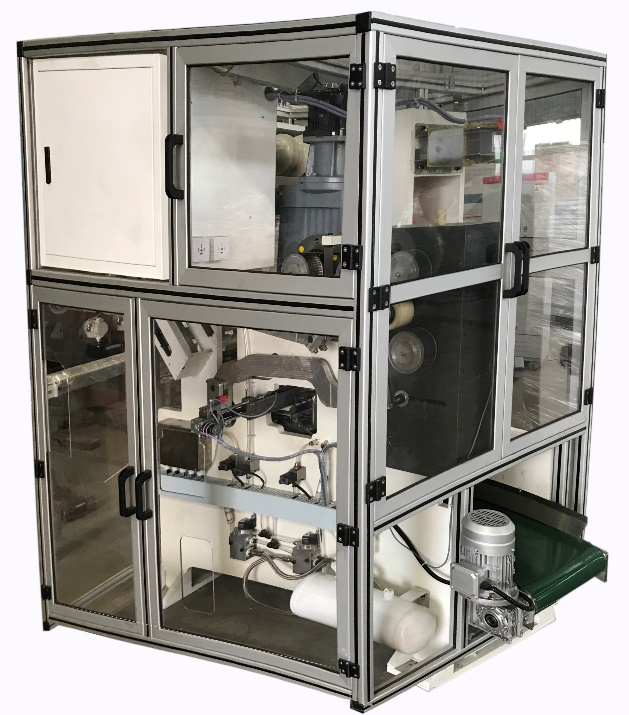

XDA-1500 Pneumatic Soap Vertical Stamper for End Cake Soap Forming

【Working Principles】

This is an advanced model of stamping machine, used to stamp out the end piece soaps from the

cut long bar (cutted by electronic cutting machine )with the required size, shape, logo, pattern and

weight.

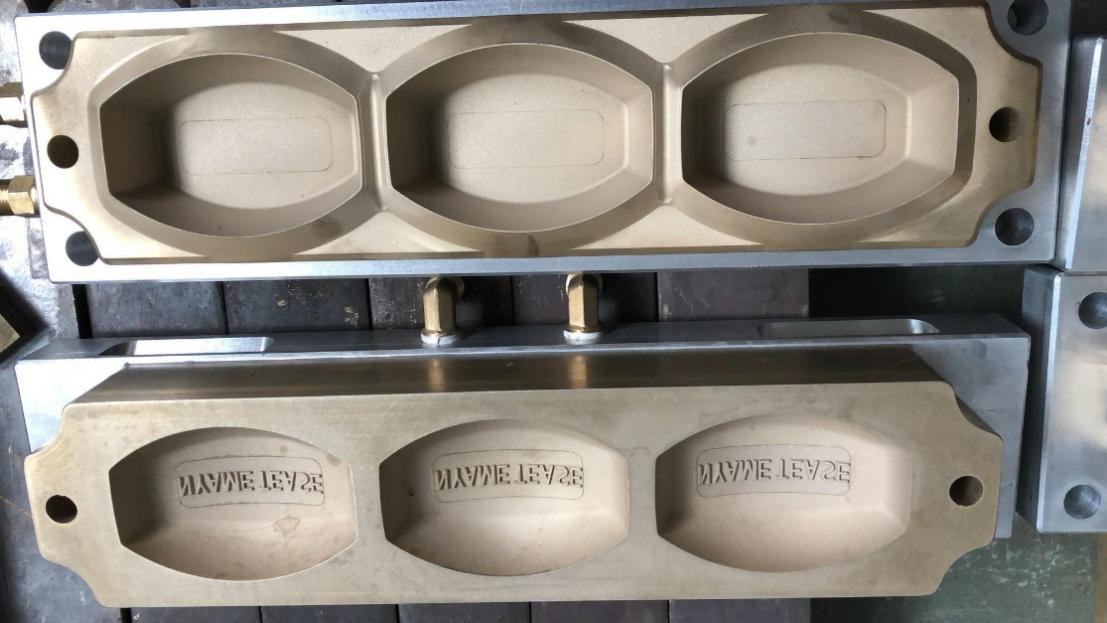

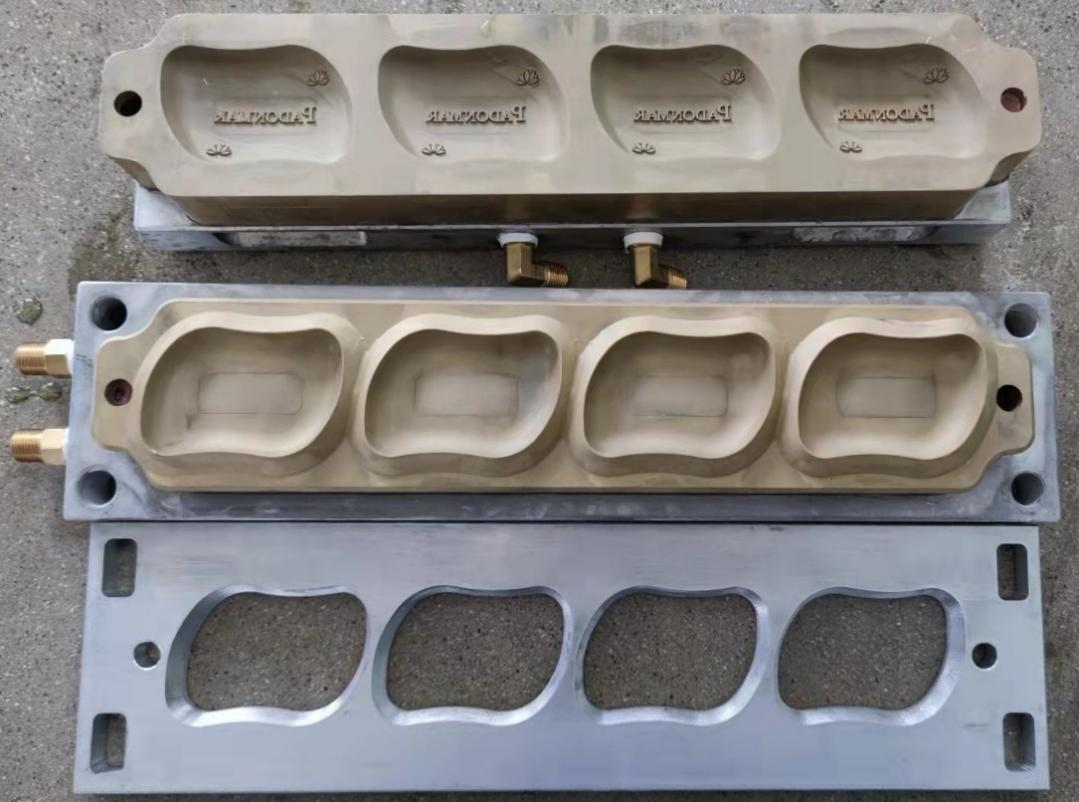

The copper mould is precised made by sandblasting processed with refrigerant on the inner layer,the

soap body is easy to demould with clear pattern and smooth neat appearance.

Edge trimmer is equipped to remove the soap edges, which would be recycled back to the plodder

automatically by conveyor belts.

Soap edges is removed automatically,so soap body is clean and can be fed into the follow packing

system continuously.

This machine is highly intelligent and automatic, which greatly reduces labor costs.

【Characteristics】

1.Delicate design of Cam Mechanism make the stamping movement smooth, stable and low impact, which is

more suitable for high speed working;

2.Exquisite sand blasting copper mould, together with circulating chilling agent in the inter-layer, ensure the

end soap would have small stamping line, smooth surface and clear logo;

3.Soap mould change is simple and convenient, so can produce various kinds of soap with different shape,

size, logo and weight;

4.Soap edges is removed automatically,so soap body is clean and can be fed into the follow packing system

continuously.

【Technical Parameters】

Company&Services

Jinan Zhonghui Machinery Manufacture Co.,Ltd is founded in 2009, headquarters is located in Jinan, and our production plant is located in Yucheng,Dezhou National Hi-Tech Industrial Development Zone. We are a professional factory focus on the technique design, manufacture and technical service of laundry soap,toilet soap,oil hydrolysis and fatty acid distillation equipment.

Our company has passed the ISO9001 Quality System Certification. We have finished the registration of

“ZHONGHUI” brand as our trademark;

We have got several patents for our soap machine design and fabrication function.

Our product is designed by the engineers with above 35 years practical machine operation experience,we

can provide one-stop sulotion and turn-key project for our customers,starting from the design of production

process, production formula &cost control, machine fabrication and warehouse layout based on each

customer's particular requirements. We would be responsible to supply the machine, guide the

installation, make the test running and staff training, till the customer's own staff can operate the production

line well and produce out qualified end soaps.

Our products has alrealy been exported to more than 50 countries and regions all over the world.Our

customer group is getting bigger and bigger, many new customers comes to us by the old customers’

introduction or heard about the project we have built.

Now besides the soap machine, we can also supply the related machine & equipment and the production

consumption materials, such as steam boiler, generator, soap packing machine and soap noodles, soap

packing material, caustic soda, perfume, colorant, calcium powder, AES, EDTA, etc.

Welcome to visit our factory on site,we will provide you with high-quality equipments and reasonable

prices,professional technical support & after-sales service, and make your journey to the Chinese factory

worthwhile!

We sincerely look forward to working with you and developing together!
