Toilet soap finishing production line --from soap noodle

This line uses soap noodle as material and the end products could be different quality of toilet and hotel

soaps with fatty acid content 60%~80%. Capacity range is 200~2000kg/h.

The whole production process is continuous and fully automatic, including mixing, two times grinding,

vacuum plodding and soap stamping & cutting. Based on quality requirements, some customer add

extra refinery machine, which would help to improve the smooth grade of end soap surface and

increase the market competitive ability.

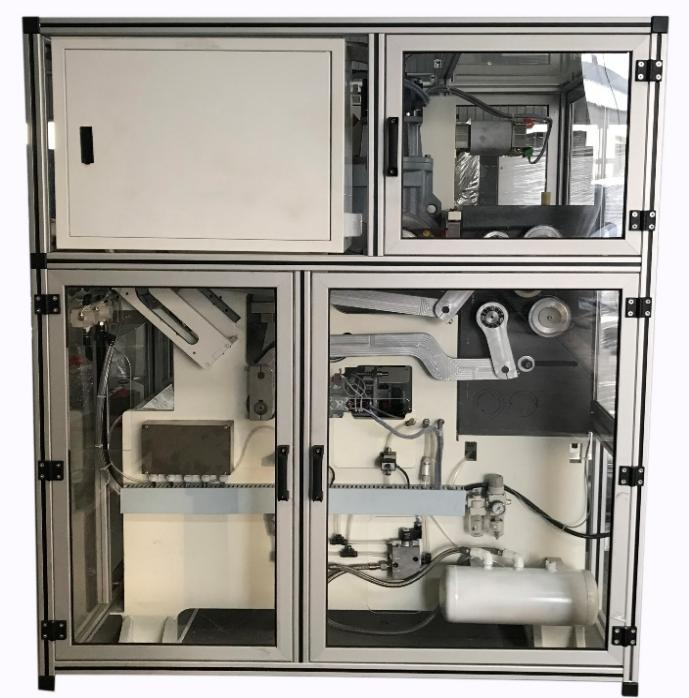

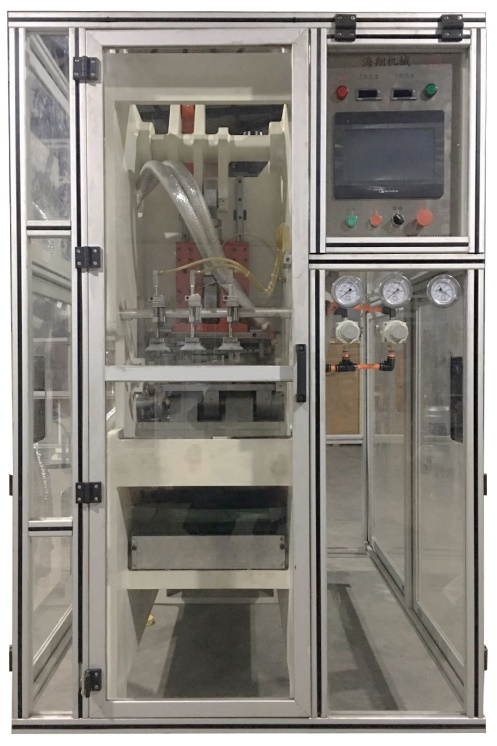

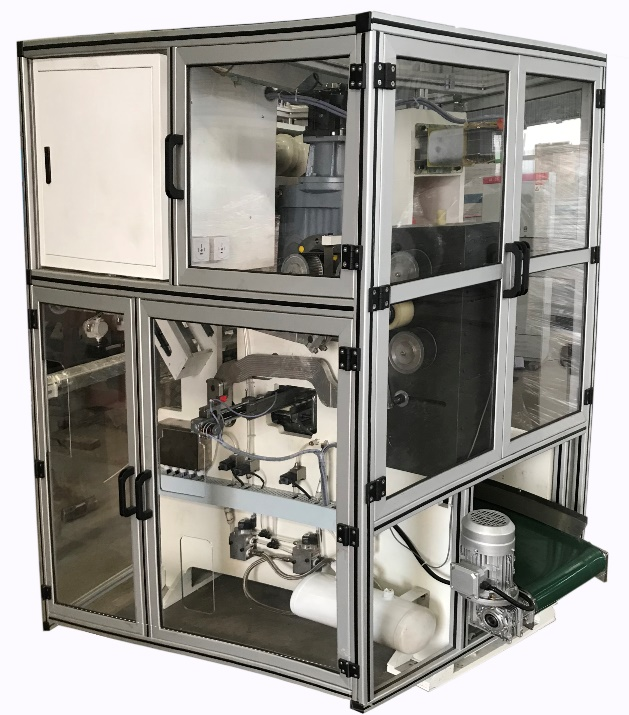

 →XDA-2500 5-8 Cavities Toilet Soap Vertical Stamping Machine

for End Soap Shaping and Printing

【Working Principles】

This is an advanced model of stamping machine, used to stamp out the end soaps from the cut long bar

(cutted by electronic cutting machine)with the required size, shape, logo, pattern and weight

continuously.

The cavities could be 5~8 PCS.

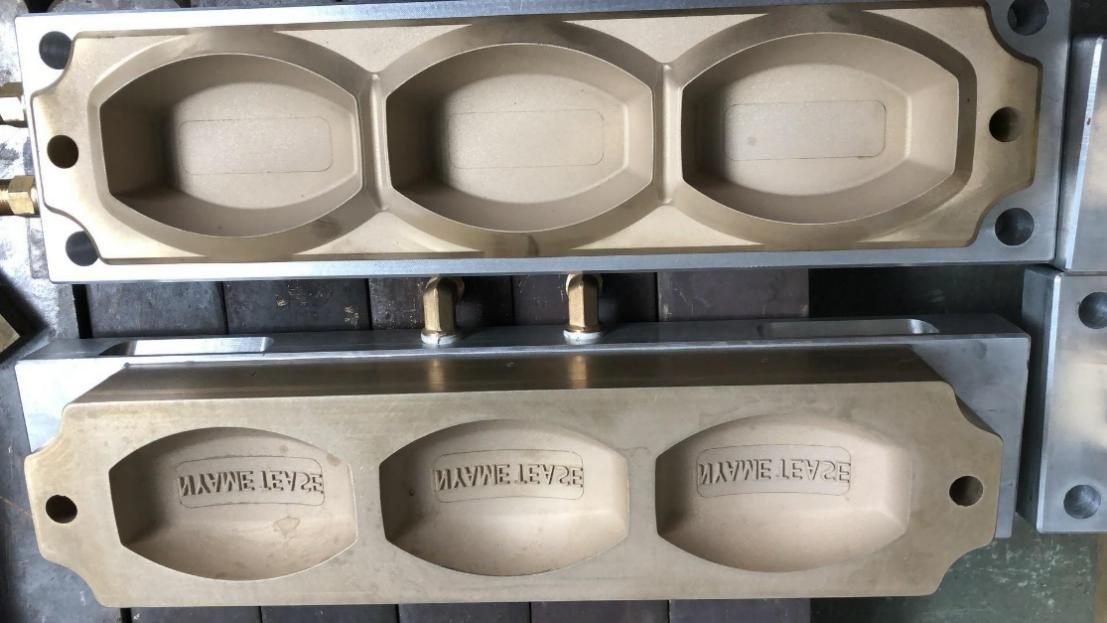

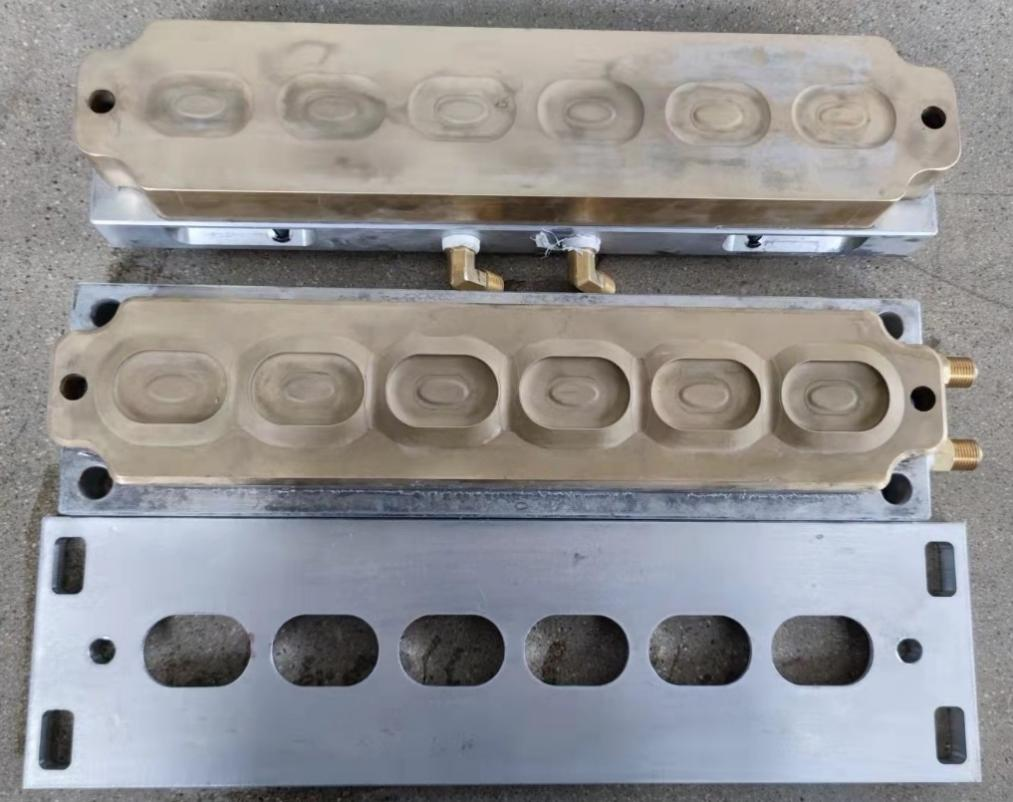

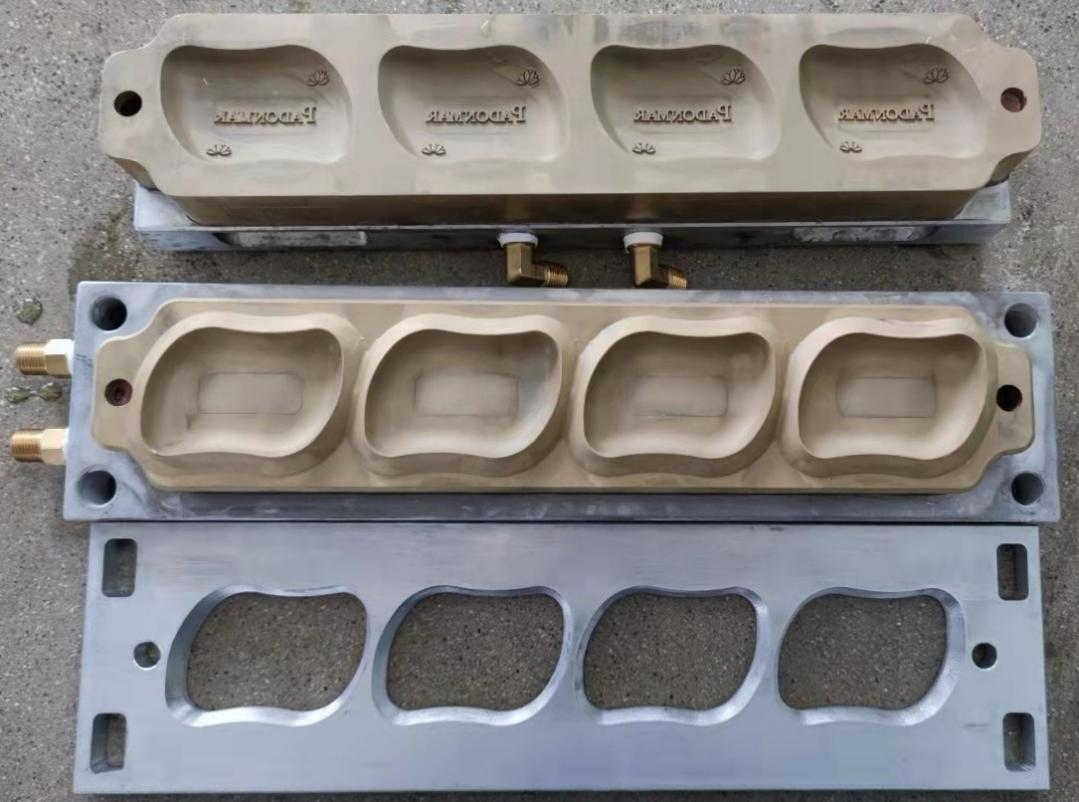

The pure copper mould adopts sandblasting process and is beautifully designed with circulating

refrigerant in the inter layer,the soap body is easy to demould with a smooth clean outlooking and clear

patterns.

Edge trimmer is equipped to remove the soap edges, which would be recycled back to the plodder

automatically by conveyor belts. Soap edges is removed automatically,so soap body is clean and can be fed into the follow packing system continuously.

This machine is highly intelligent and automatic, which greatly reduces labor costs.

【Characteristics】

1.Delicate design of Cam Mechanism make the stamping movement smooth, stable and low

impact, which is more suitable for high speed working;

2.Exquisite sand blasting copper mould, together with circulating chilling agent in the inter-

layer, ensure the end soap would have small stamping line, smooth surface and clear logo;

3.Soap mould change is simple and convenient, so can produce various kinds of soap with

different shape, size, logo and weight;

4.Soap edges is removed automatically,so soap body is clean and can be fed into the follow

packing system continuously.

【Technical Parameters】

About Us

Company Profile

Jinan Zhonghui Machinery Manufacture Co.,Ltd is founded in 2009, headquarters is located in Jinan,

and our production plant is located in Yucheng,Dezhou National Hi-Tech Industrial Development

Zone. We are a professional factory focus on the technique design, manufacture and technical service

of laundry soap,toilet soap,oil hydrolysis and fatty acid distillation equipment.

Our soap equipment has a comprehensive range,the production of raw material can use (oil+NaOH)or

semi finished soap noodle are available. The capacity of equipment ranges from 200-5000kg per hour.

Our production process energy saving and consumption reduction,without three waste

emissions,according to eco-friendly sustainable development trend.

Our company has passed the ISO9001 Quality System Certification. We have finished the registration

of “ZHONGHUI” brand as our trademark;

We have got several patents for our soap machine design and fabrication function.

Our products has alrealy been exported to more than 50 countries and regions all over the world.Our

customer group is getting bigger and bigger, many new customers comes to us by the old customers'

introduction.

Now besides the soap machine, we can also supply the related machine & equipment and the

production consumption materials, such as steam boiler, generator, soap packing machine and soap

noodles, soap packing material, caustic soda, perfume, colorant, calcium powder, AES, EDTA, etc.

FAQ

Q:Are you manufacture factory or trading company?

A:We are a soap making machine manufacture factory has been for 25 years.

Q:What is your mainly equipment?

A: complete laundry soap production line

    complete toilet soap production line

    complete soap noodle making machine

    laundry soap finishing line

    toilet soap finishing line

Q: How to choose my machine?

A: What material you will to start?

    What end bar soap you will to produce?

    What about the line capacity?

    How much your budget?

I will give you different solutions to meet your demand.

Q: How you guarantee my machine quality?

A: Our machine is designed by engineers above 35 years practical machine operation experience,we adhere to QC control,strictly control production process. Each machine needs to undergo several running test before loading to ensure that it can operate well when it arrives at the custmomer's factory.

Q: What about after-sale services provided?

A: Our engineers can service machinery overseas. We responsible to supply equipment and guide installation,make running test, give staff operation training, until customers' staff can operate production line well on their own and produce out qualified soaps.

Zhonghui is committed to help our customers all over the world to build up their own factories and get a

rapid development with professional fabrication ability, skilled technique assistance, comprehensive

after-sales service!
