Working Principles:

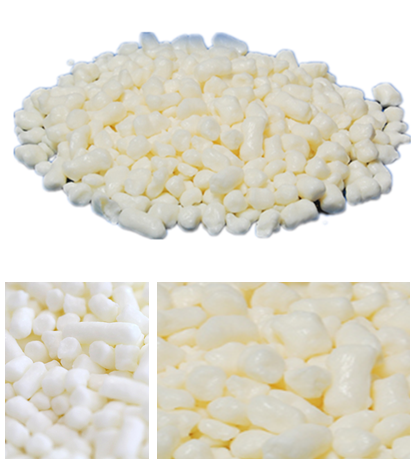

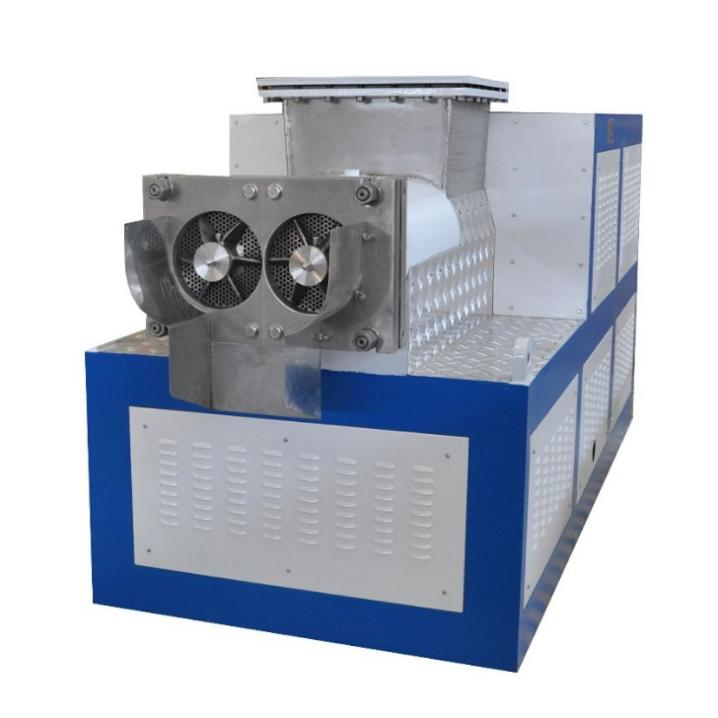

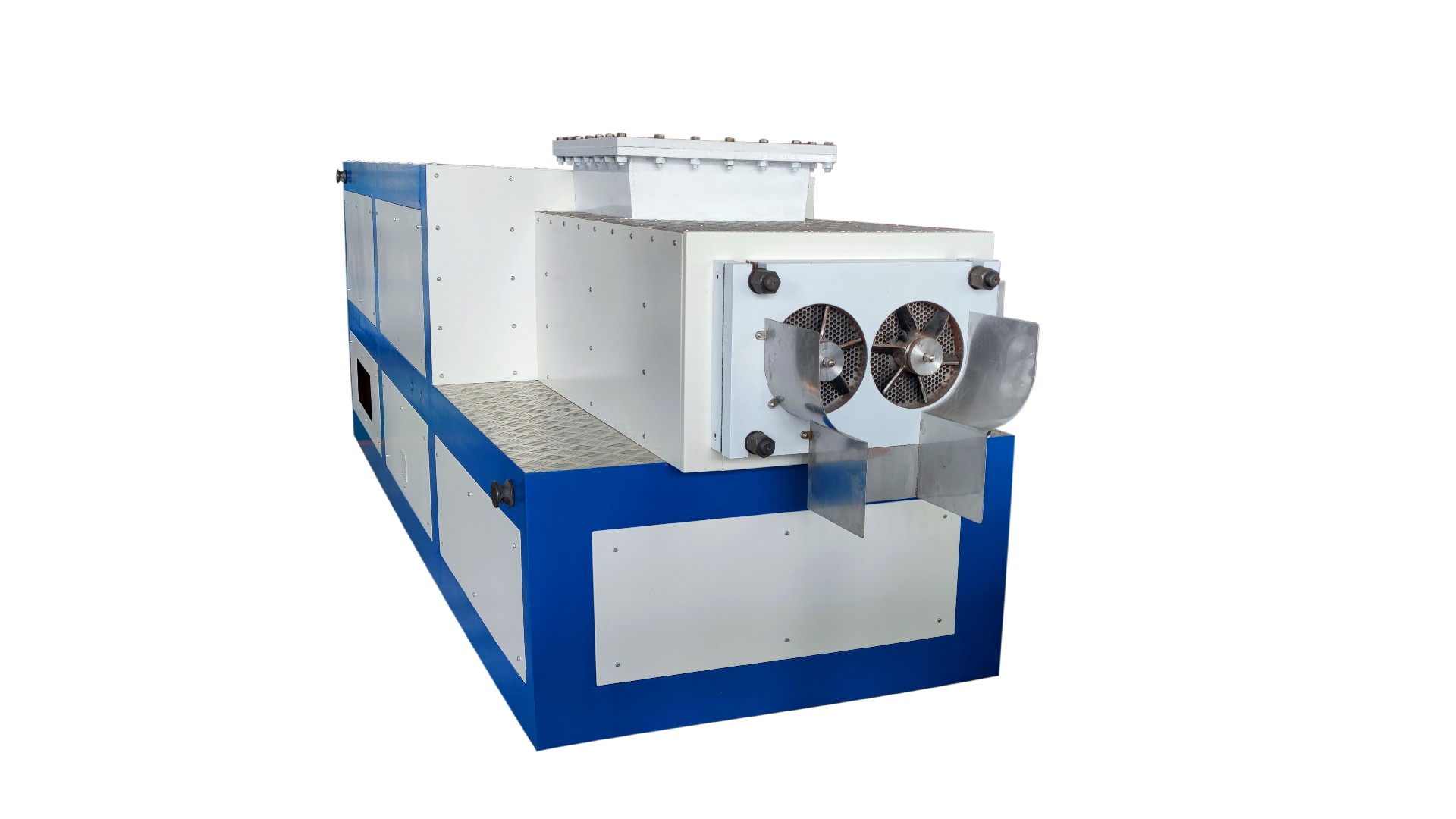

Designed to refine and press the soap flakes from vacuum dryer, increase the density and transparency of soap, and then knife equipped at the pelletizing mouth would cut soap flakes into soap noodles.

Its working principle is to use the transmission of the spiral blade to make the soap flakes fully contact and squeeze inside the cylinder wall. The rotating screw blade, its own weight and the friction between the shell make the soap flakes moving forward and transporting to the muzzle, then soap flakes are cut into granules by the orifice scraper on the nose to become soap noodles (semi-finished products).

Technical Parameters:

1.The structure is welded strong and neat;

2.The extruding cylinder made from thick wall cold drawn seamless tube, together with the thickened screw, ensures to create high enough pressure and

produce high quality soap noodles,and the circulating water cooling of the spiral blades ensure the high quality requirements for soap nuggets;

3.Siemens Beide Brand frequency conversion motor and Guomao Brand horizontal hard tooth reducer are adopted, ensure the machine to have stable performance, high efficiency, automatic lubrication and low noise;

4.It adopts transmission deceleration and separation, convenient maintenance and long service life.
