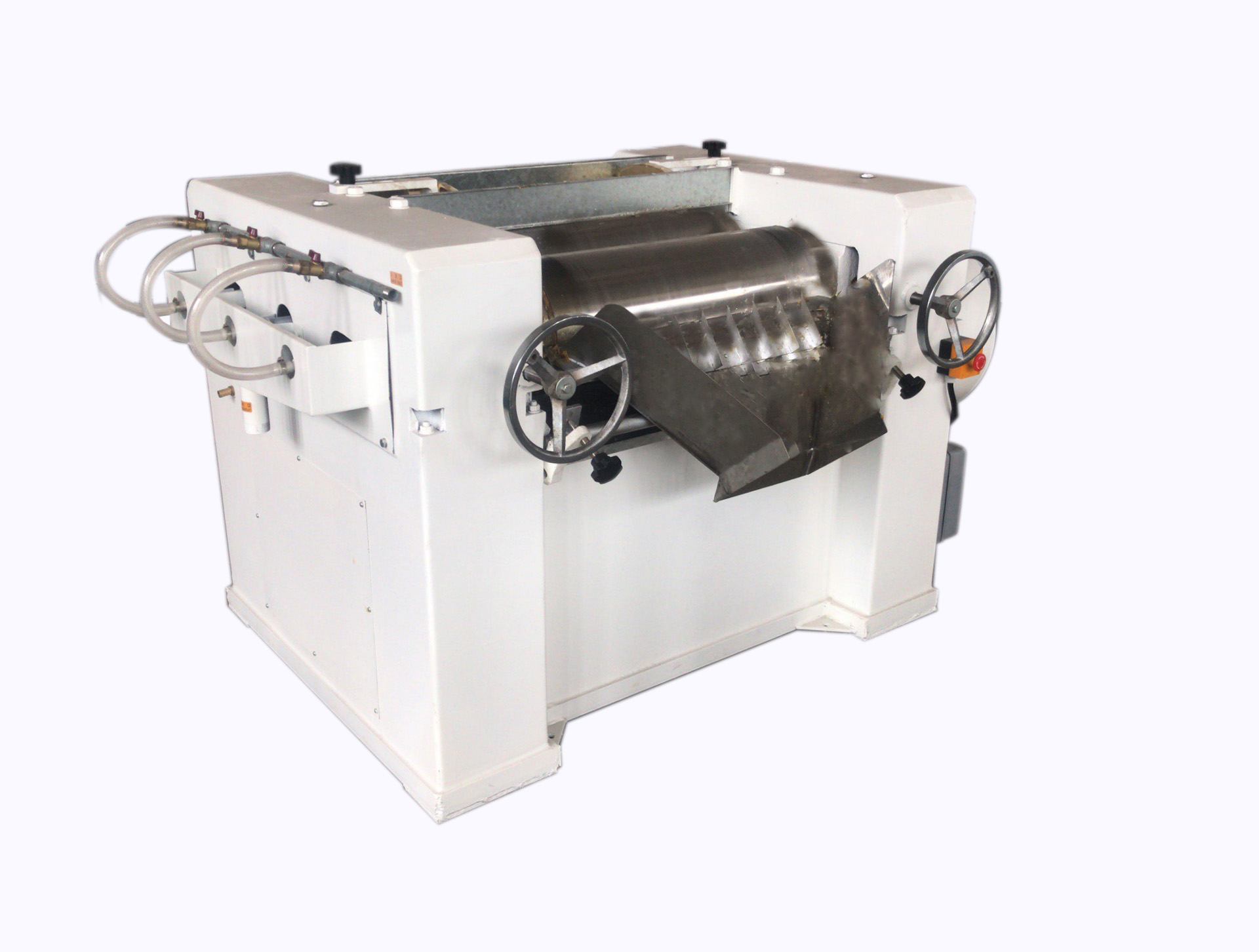

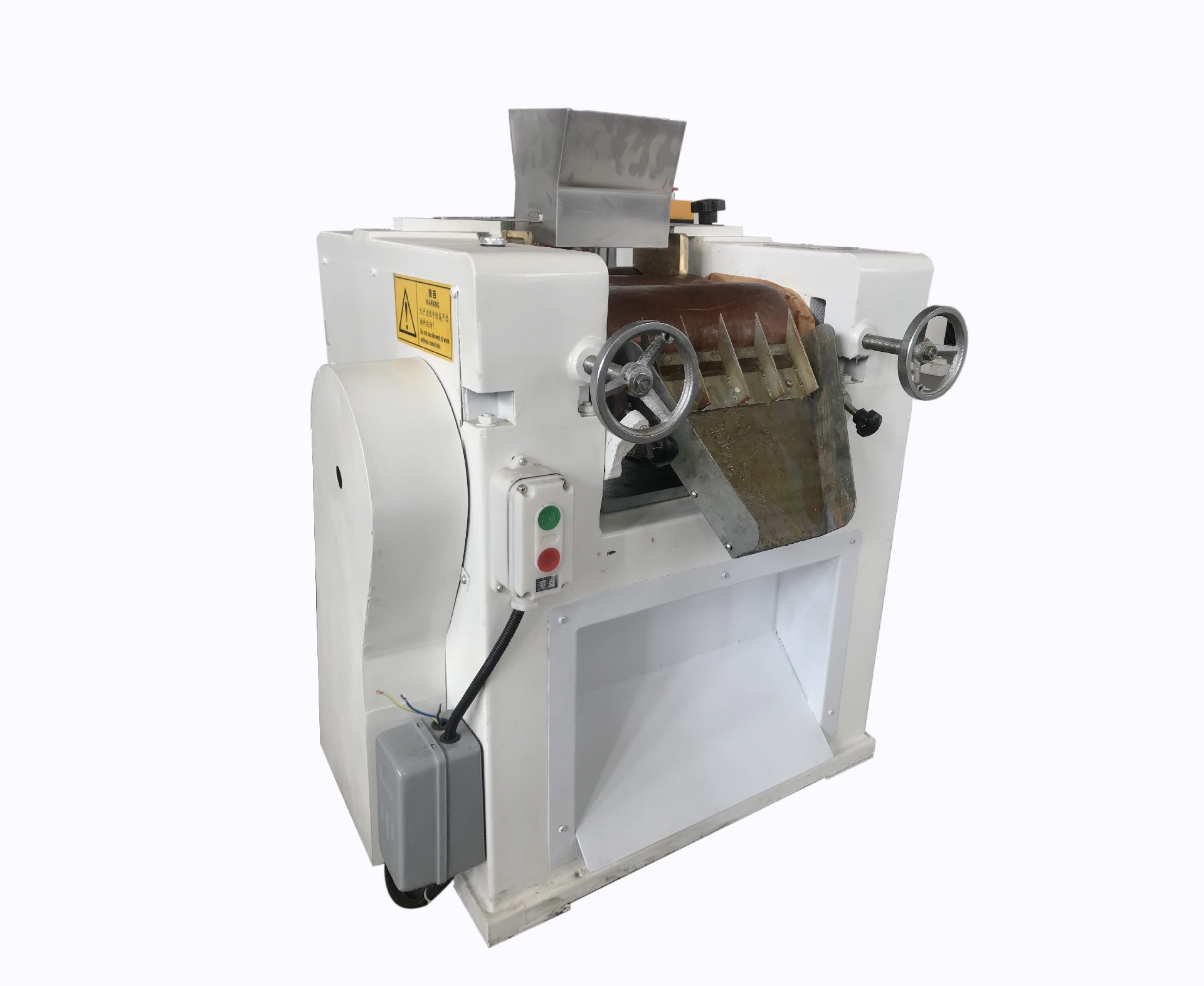

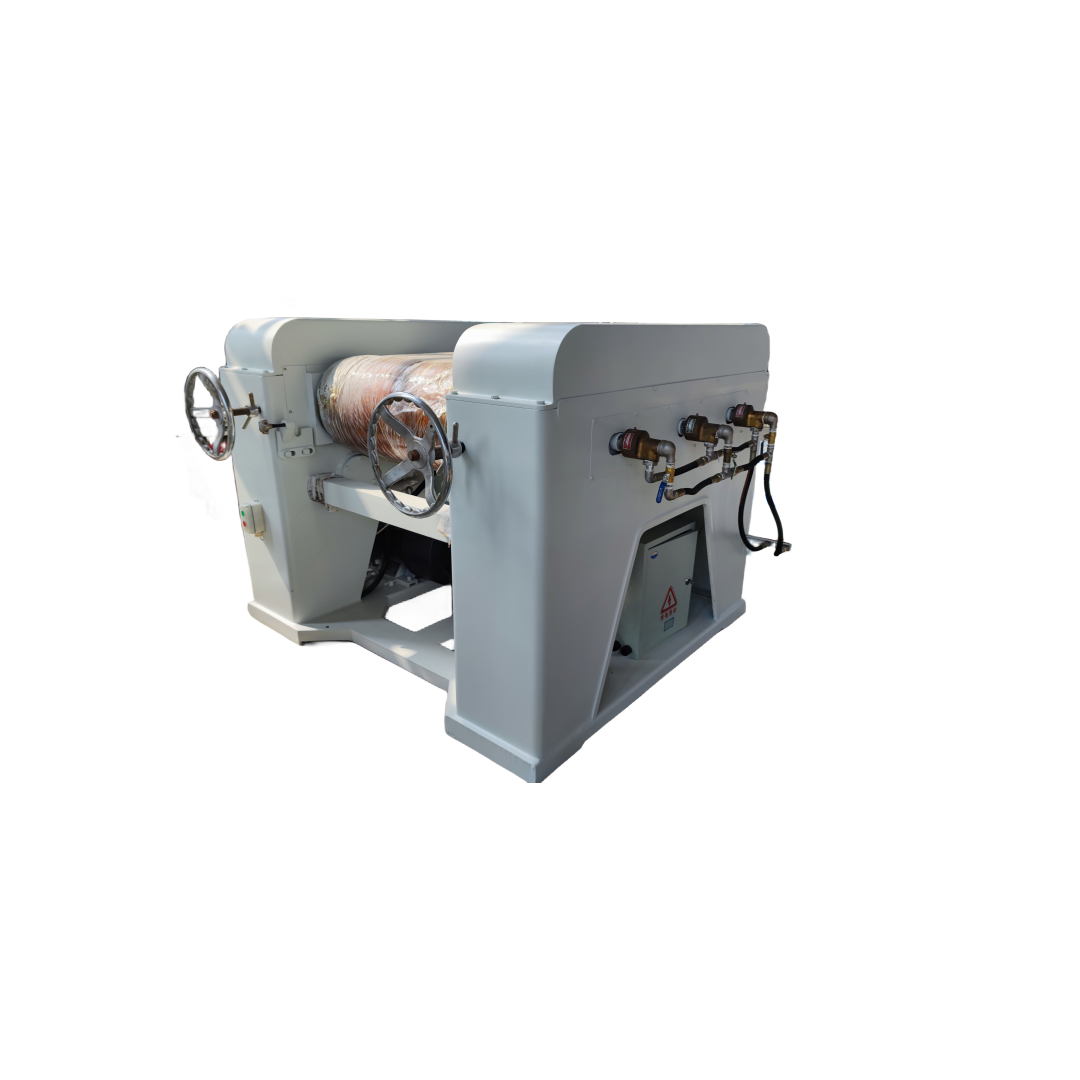

High quality refined grinding chilled alloy material three Roller Grinder for making soap improve the end soaps quality.Used to grind and refine the mixed soap materials and increase its density and then improve the end soaps quality
Characteristic
The rollers are made from chilled alloy, which has a strong and anti-worn surface, can make the grinding fineness to be 15μm;
Water cooling system is equipped, ensures the grinder can have stable performance even working in hot environment 24 hours nonstop;
Transmission is by delicate gear, which ensures low noise, stable performance and long lifespan.
Technical Parameters
Model | Roll Diameter(mm) | Work Length(mm) | Power(kw) | Roll Speed Ratio | Dimension(mm) | Weight(kg) |
S150 | Φ150 | 300 | 4 | 1:3:9 | 870*810*1100 | 350 |
S260 | Φ260 | 675 | 11 | 1:3:9 | 1690*1100*1100 | 1780 |
S405 | Φ405 | 810 | 22 | 1:3:9 | 1950*1950*1330 | 4120 |
AS405 | Φ405 (oil immersed) | 810 | 22 | 1:3:9 | 2200*1760*1400 | 4600 |
