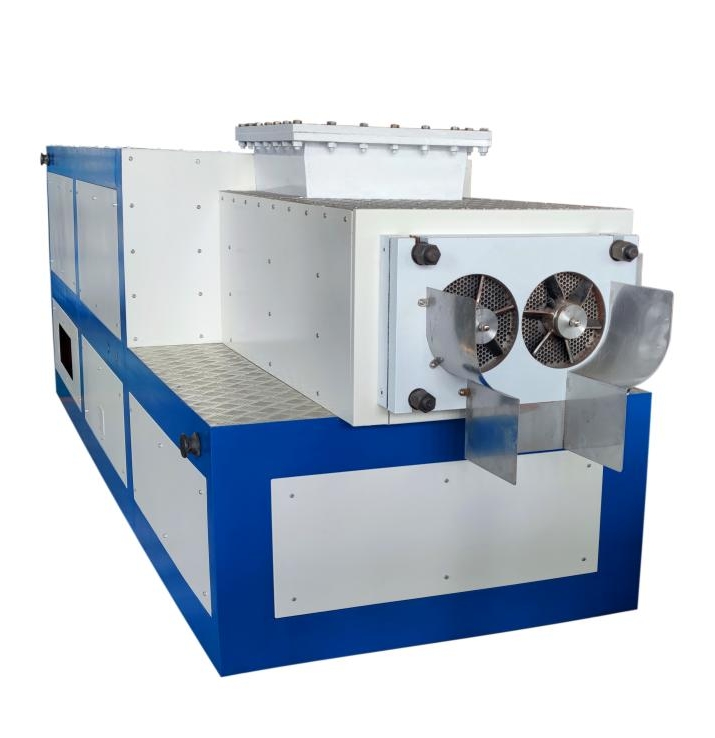

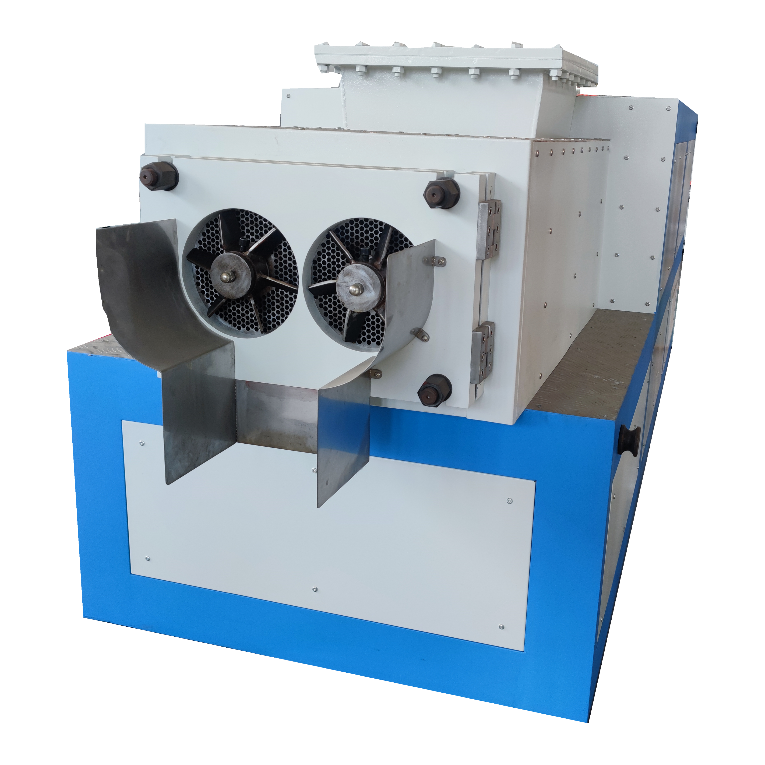

Stainless Steel 304 Material Double Screw Soap Noodle Pelletizers for Soap Noodle Making from Chinese factory

Designed to press and refine the soap flakes from vacuum dryer, increase the density and transparency, and then knife equipped at the pelletizing mouth would cut it into soap noodles.

Click inquiry

Technical Parameters:

Product name	pelletizer/granulator/soap noodle making machine
Model	XT-2500
Material	carbon steel A3
Capacity	2000~3000kg/h
Power	22kw
Screw diameter	250mm*2
Screw type	double screw

Characteristics:

1.The structure is welded strong and neat;

2.The extruding cylinder made from thick wall cold drawn seamless tube, together with the thickened screw, ensures to create high enough pressure and produce high quality soap noodles,and the circulating water cooling of the spiral blades ensure the high quality requirements for soap nuggets;

3.Siemens Beide Brand frequency conversion motor and Guomao Brand horizontal hard tooth reducer are adopted, ensure the machine to have stable performance, high efficiency, automatic lubrication and low noise;

4.It adopts transmission deceleration and separation, convenient maintenance and long service life.
