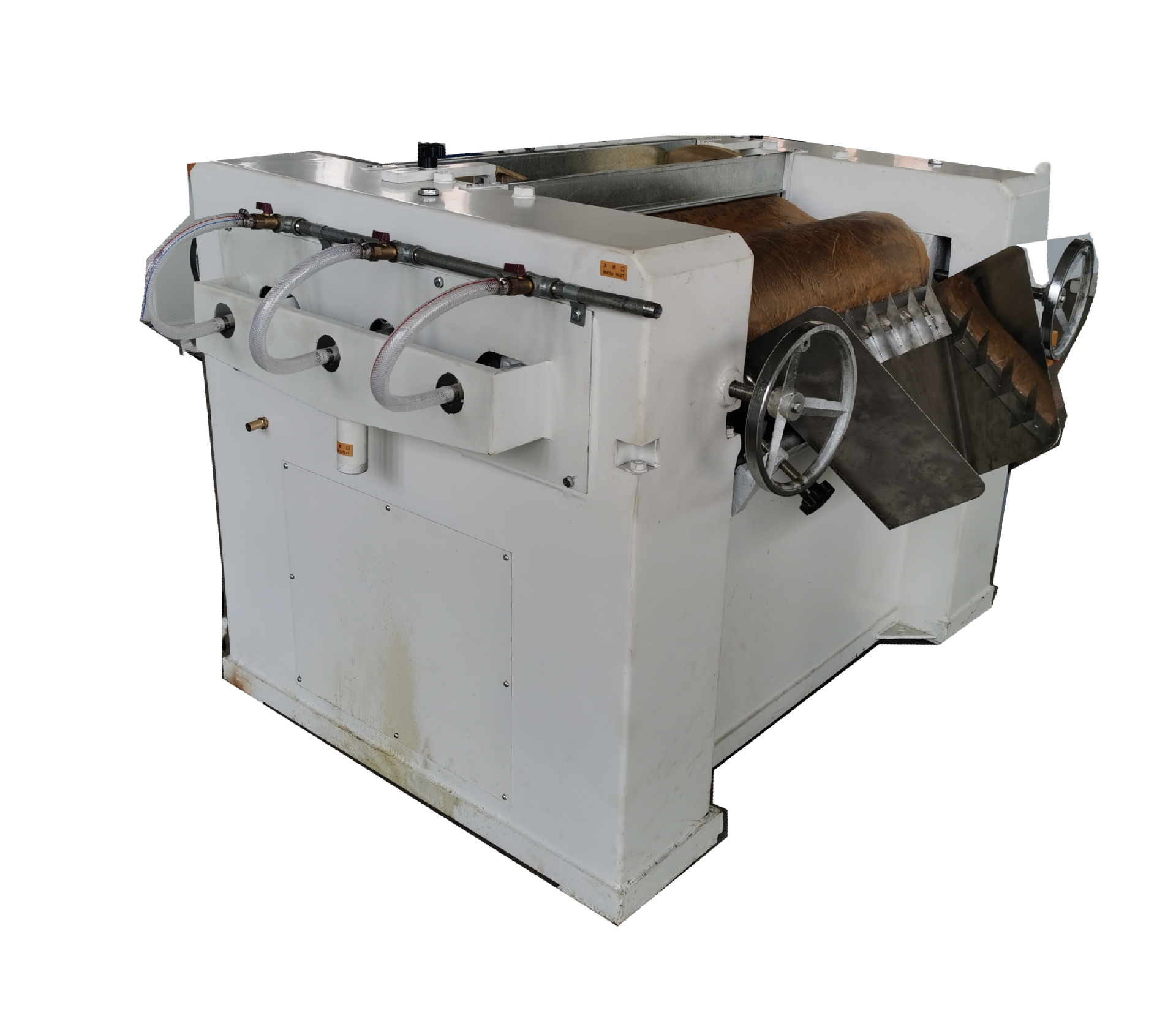

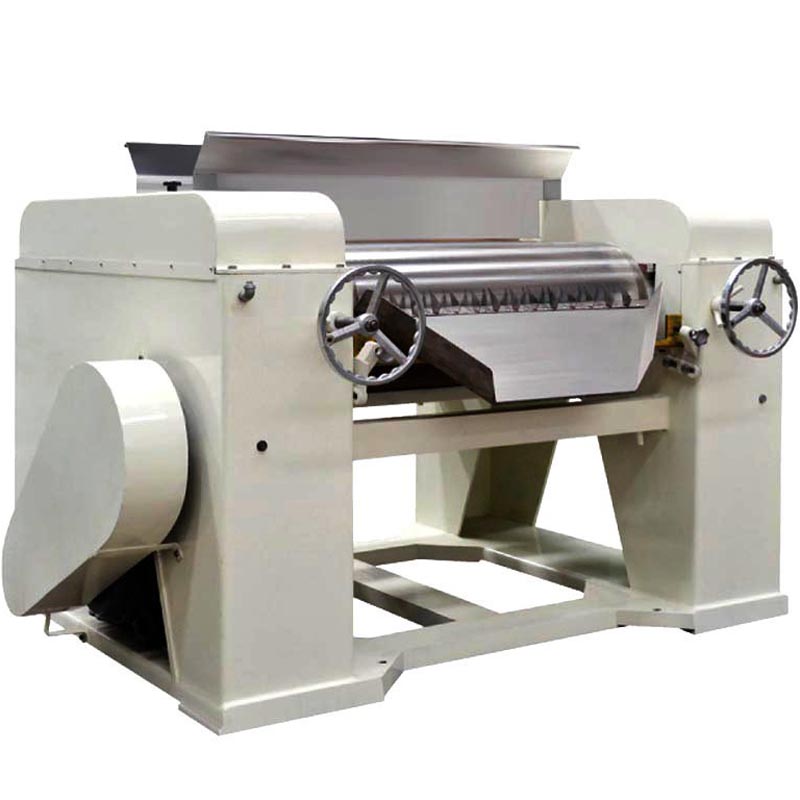

Used to grind and refine the mixed soap materials and increase its density and then improve the end soaps quality
【Characteristic】
The rollers are made from chilled alloy, which has a strong and anti-worn surface, can make the grinding fineness to be 15μm;
Water cooling system is equipped, ensures the grinder can have stable performance even working in hot environment 24 hours nonstop;
Transmission is by delicate gear, which ensures low noise, stable performance and long lifespan.
【Technical Parameters】
Model | Roll Diameter(mm) | Work Length(mm) | Power(kw) | Roll Speed Ratio | Dimension(mm) | Weight(kg) |
S150 | Φ150 | 300 | 4 | 1:3:9 | 870*810*1100 | 350 |
S260 | Φ260 | 675 | 11 | 1:3:9 | 1690*1100*1100 | 1780 |
S405 | Φ405 | 810 | 22 | 1:3:9 | 1950*1950*1330 | 4120 |
AS405 | Φ405 (oil immersed) | 810 | 22 | 1:3:9 | 2200*1760*1400 | 4600 |
