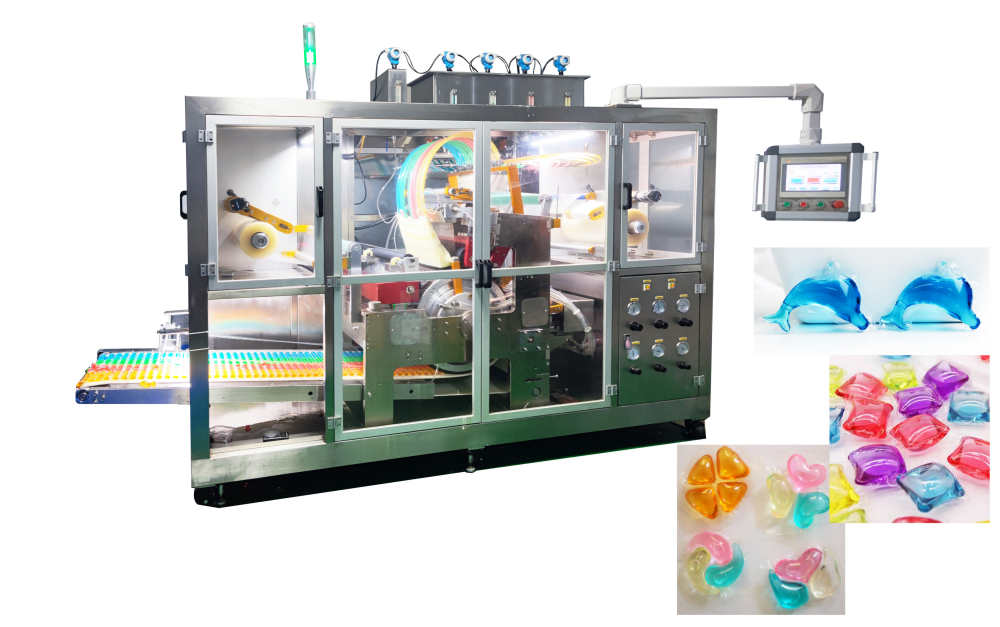

HX-NZP-3 Fully automatic and fast speed pods packing machine used for medical cleaning liquid

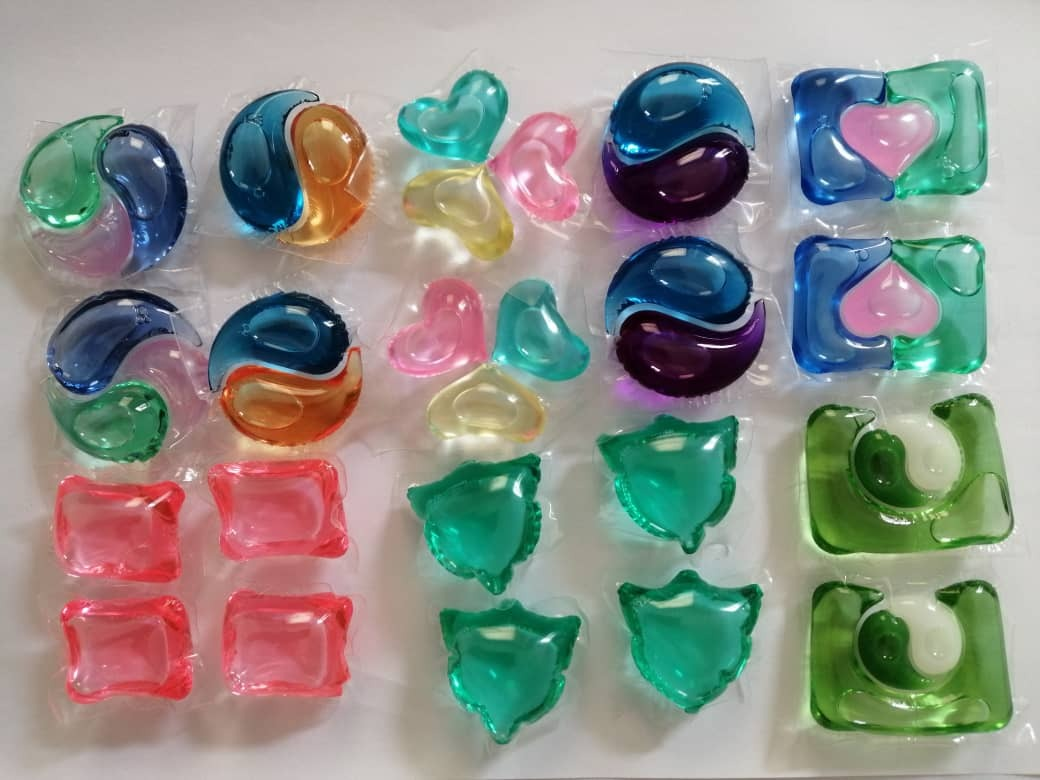

High speed automatic laundry pods packaging machine can be used for: laundry detergent liquid, medical cleaning liquid as well as powder and pearls. It is a fully automatic and fast speed model, which is functional for many different kinds of material and various kinds of film.

Click inquiry

Basic characteristics

1. The main drum is driven by servo motor, which ensures the stable production and accurate adjustment

2. Feeding is by stroke plunger pump, the accuracy would be 0.02ml, and feeding system is anti-corrossin and long life-span

3. CNC one- piece molding mould, ensure the precise and consistant of the pods shape, meanwhile, it is much easier for cleaning and maintenance

4. Unique watery feeling structure can reduce the sealing temperature and barely inflenced the film’s solvent ability

5. Noth the horizontal and vertical cutting structre of the finished pods are movable, which is designed to be at the synchronous speed of the drum, so the cutting would have elegant shape and reduce film waste

6. PLC controlling system ensures the simple operation.

7. Controlling system is by DC24V insulated power, which is separated from the main power by transformer, and well connected to the ground, so the safety degree is high

Technical Parameters

NO	PARTS	PARAMETERS
1	Top film feeding system	Aluminum & rubber driving roller Equip the Tension controlling system
2	Base film pre-treatment system	High efficiency heat-conductive silicon roller
3	Sealing system	High accuracy watery system, speeding system, synchronization system Match with the high efficiency heat conductive silicon sealing roller, temperature can control at ±3％
4	Molding system	Mold would be designed based on customer’s requirement Material is high grade Duralium Alloy Process by CNC one-piece molding system, high accuracy
5	Feeding system	Equip ceramic stroke plunger pump and the weight accuracy would be within 0.05g

6	Vertical cutting system	Cool cutting, simple controlling system Special steel knife, can use the four sides by turn, so the knife consumption is very low
7	Horizontal cutting system	Hot cutting, accurate position Equip the precise synchronous following control system
8	Vacuum system	Top Chinese Puxu brand new model vacuum pump and AirTAC brand components, no need change the oil frequently, low noise, easy maintenance, longer life-span
9	Conveyor belt	1. Outlet direction changable, can designed based on customer warehouse requirement; 2. Soft belt, no have damage to the pods 3. Belt speed is precise synchronously with the main drum
10	Main bracket	1. Made from high grade stainless steel 304 2. Bearing part for main body molding system is made from heat treated hihg carbon steel, which ensures the stability of the shape 3. Stainless steel 304 and PMMA cover, easy to inspect the production
11	Electrical and air components	1. Weinview screen, PLC control system and YASKAWA servo system 2. AirTAC pneumatic elements 3. Schneider electrical elements
12	Professional designed controlling system	Simple interface, multi grade safety controlling, professional parameter setting system, can be modified based on customer requirements
