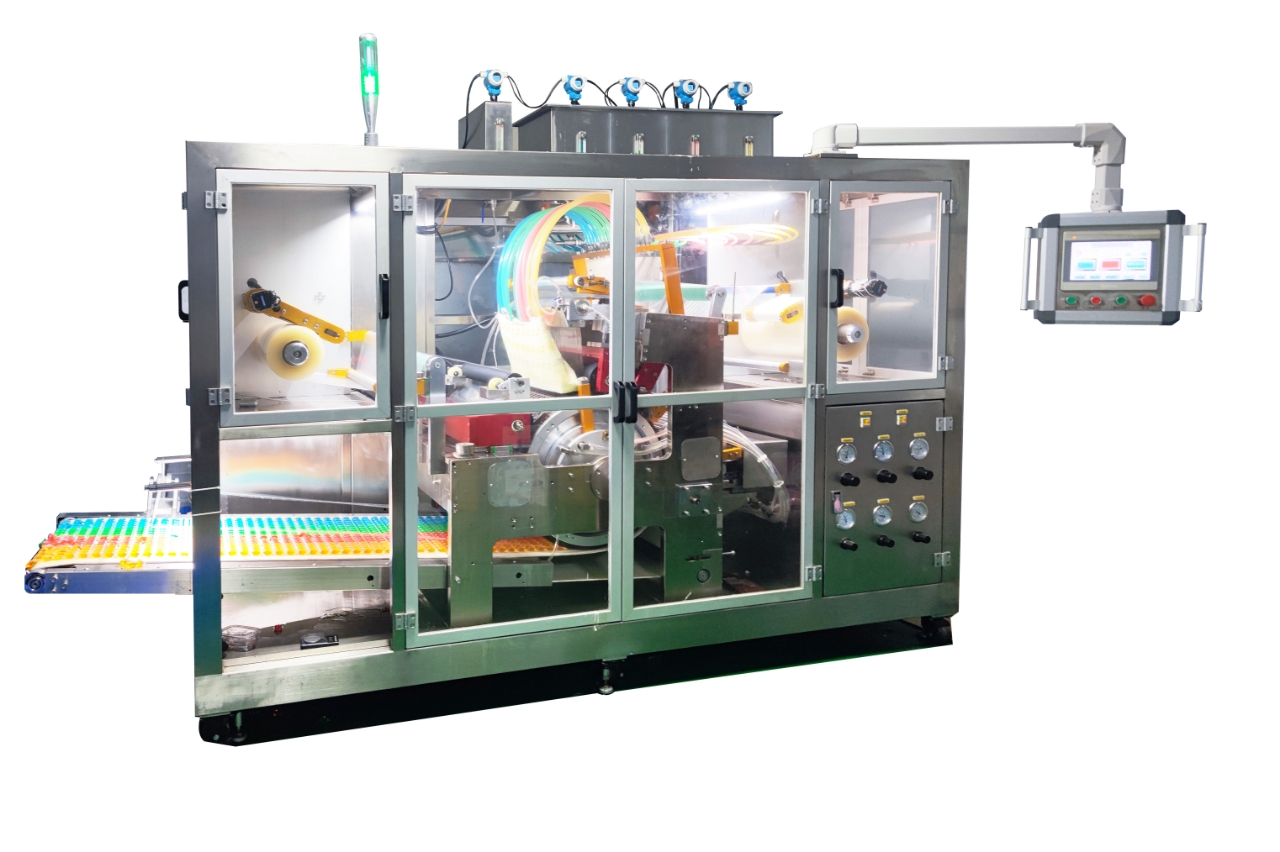

Name | High Speed Automatic capsules Packaging Machine |
Model | HX-NZP Series |
Power installe | 18KW |
PVA Film size | Diameter: 400~ 600mm, inner core diameter is 3 inch |
Capacity | Around 700~800 capsules/min(dish washing capsule); |
Machine dimension | 4400x1600x2500mm (special design might have little difference) |
Machine weight | 3100kg (special design might have little difference) |
Accuracy | 土 0.05g |
Electricity | 3-phase 5-cable, TN-S, 360~400V, 50/60Hz |
Air resource | Dried & purified air, 0.3m³/min,0.5—0.8Mpa |
Application

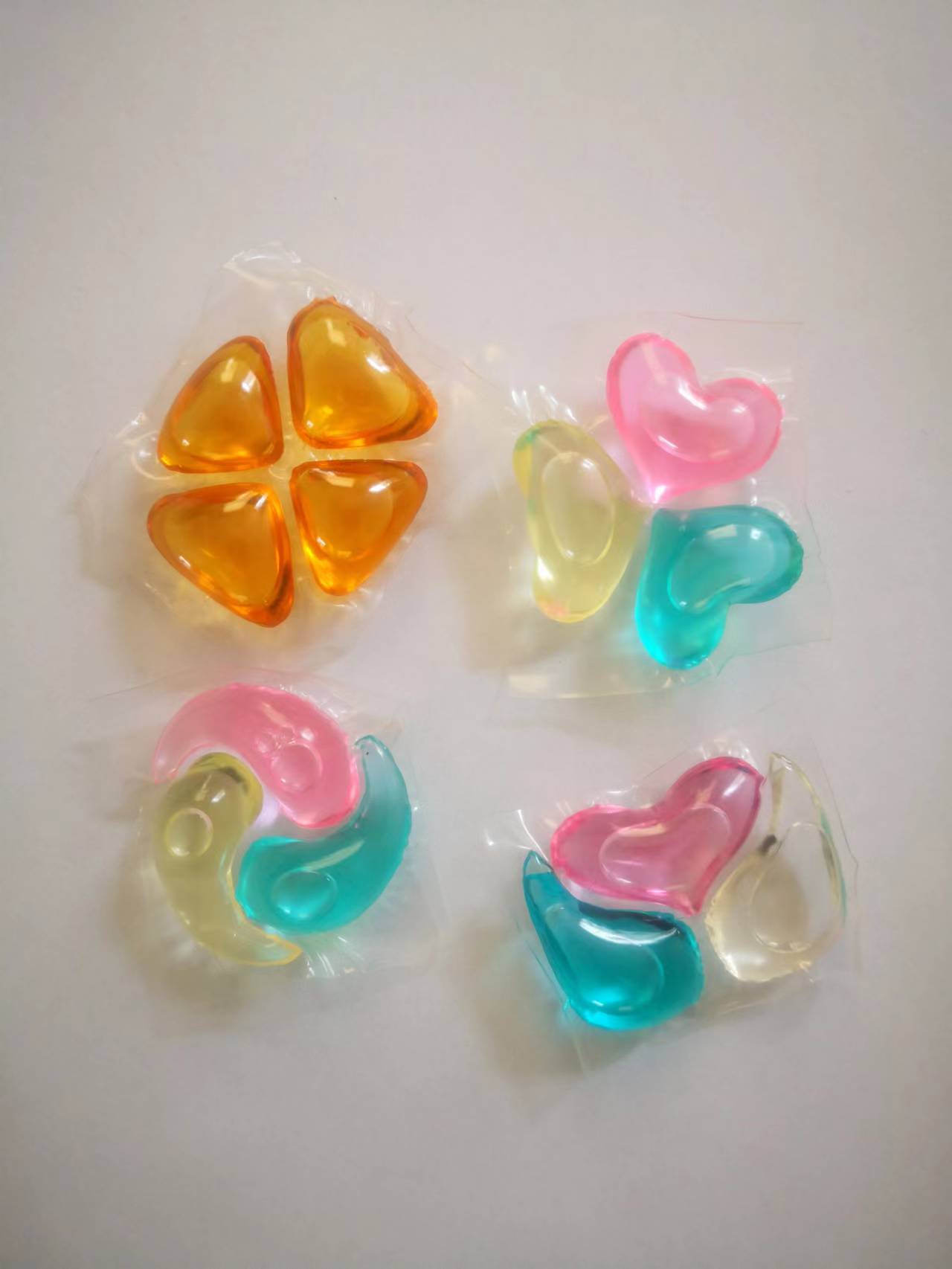

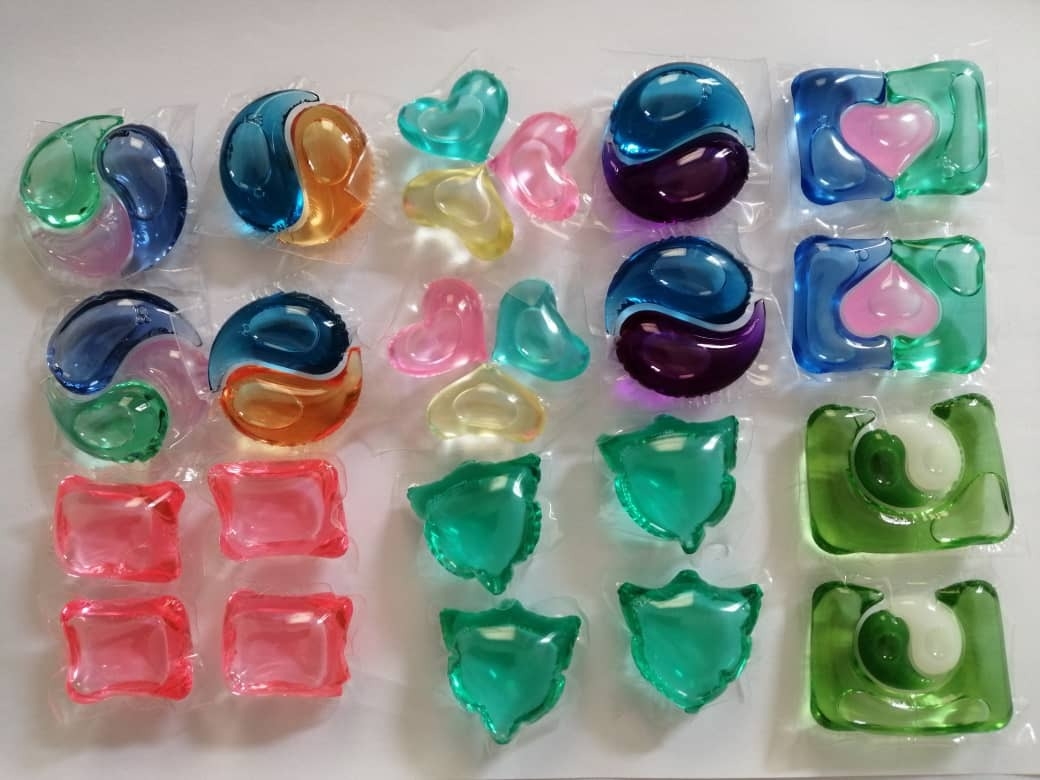

This capsules packaging machine can be used for the packing laundry detergent liquid, medical cleaning liquid as well as grains and pearls. It is a fully automatic and fast speed model, which is functional for many different kinds of material and various kinds of film.
Advantages
1. Comparing with the similar machine in the market, our model capacity is higher;
2. Function is much more stable
3. Can adjust the production speed smartly based on actual operation situation
4. Easier operation, no need manually adjust the film tension
5. Feeding quantity is much more accurate
6. Can work with all kinds of the packing film
WHY CHOOSE US?
Our product is designed by the engineers with above 35 years practical machine operation experience, and is kept upgrading based on market new requirements and technology development. We would offer the one-stop solution and turn-key project for our customer, starting from the design of production process, production formula, production consumption control, machine fabrication and warehouse layout based on each customer’s particular requirements. We would be responsible to supply the machine, guide the installation, make the test running and operation training, till the customer’s own staff can operate the product line well and produce out qualified end soaps.
