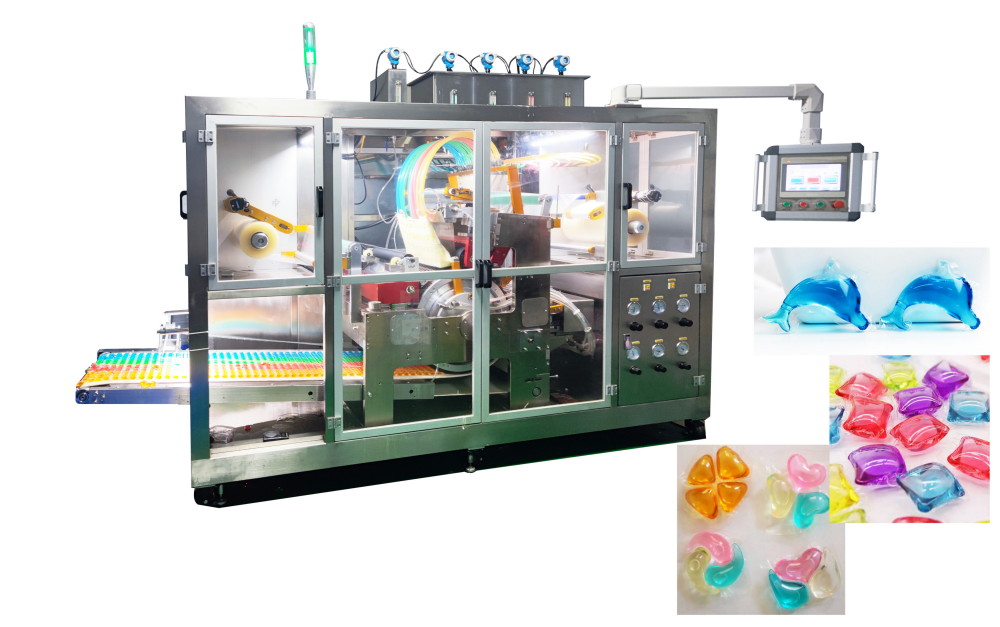

Model No.

HX-NZP-3

Power installed

16KW　

PVA Film size

Dimater: 400~ 600mm, inner core diameter is 3 inch

Capacity

1000~1100 pods/min(3 cavity liquid);

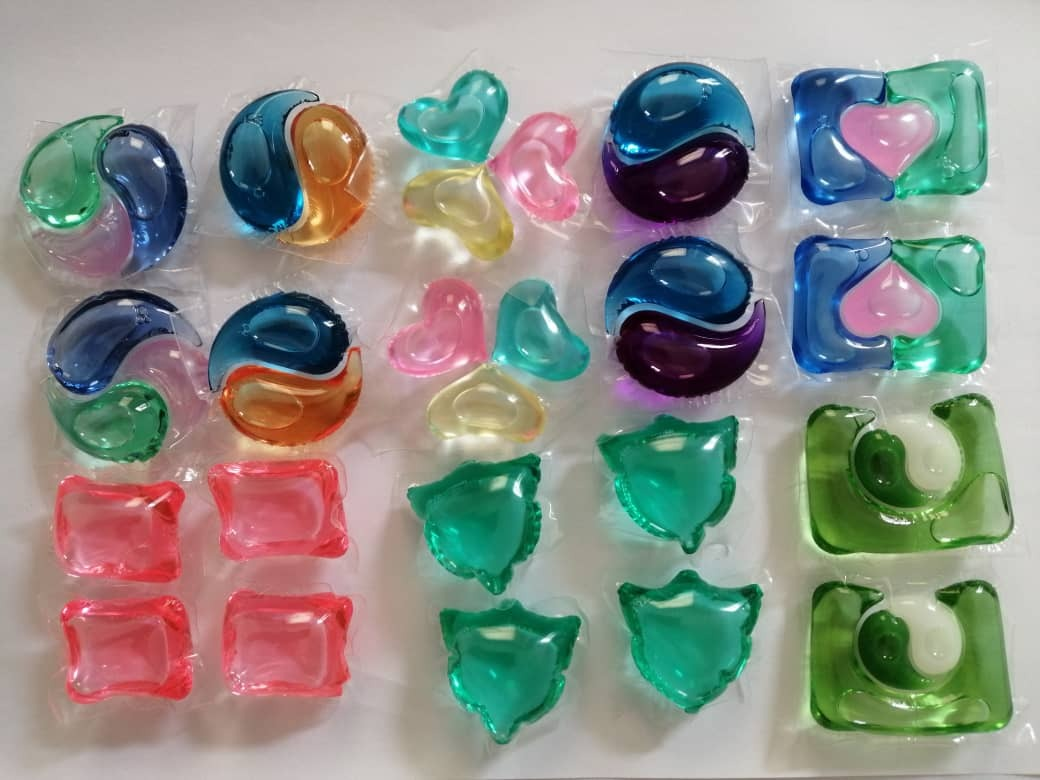

Pod size range

6-30g (accept special order out of the range)

Molds quantity

16 cavities * 40~50 lines (rated at 6g per pod)

Accuracy

土 0.05g

Electricity

3-phase 5-cable, TN-S, 360~400V, 50/60Hz

Air resource

Dried & purified air, 0.3m³/min，0.5—0.8Mpa

Control system

By PLC

Machine dimension

3600x1500x2500mm (special design might have little difference)

Machine weight

2500kg  (special design might have little difference)

Delivery

By 1x20’ container
